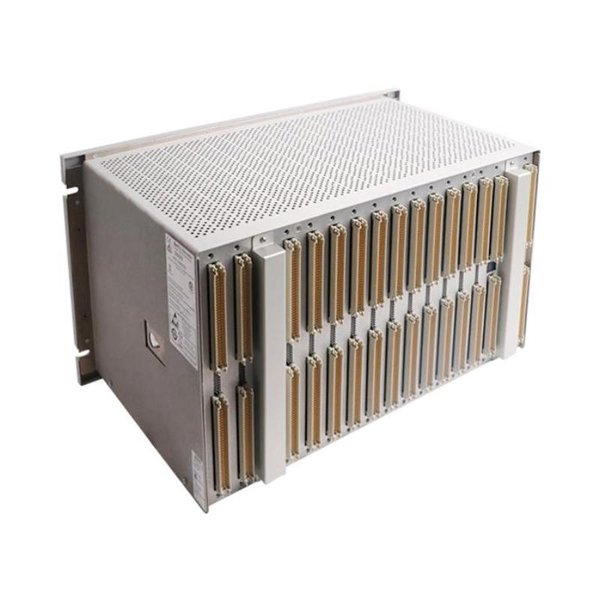

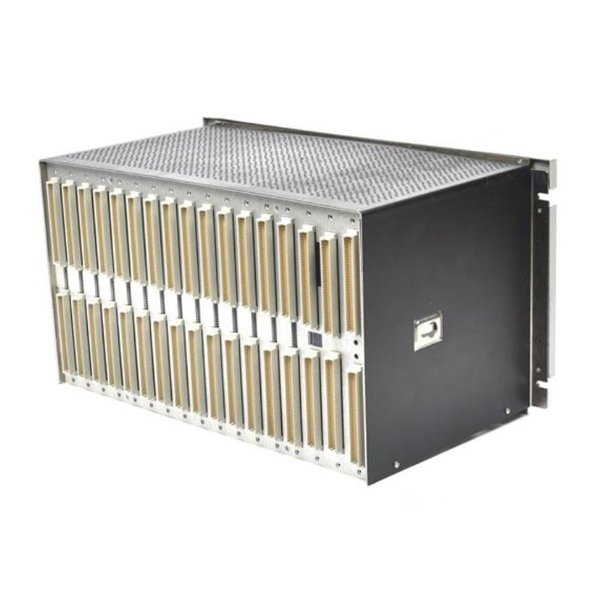

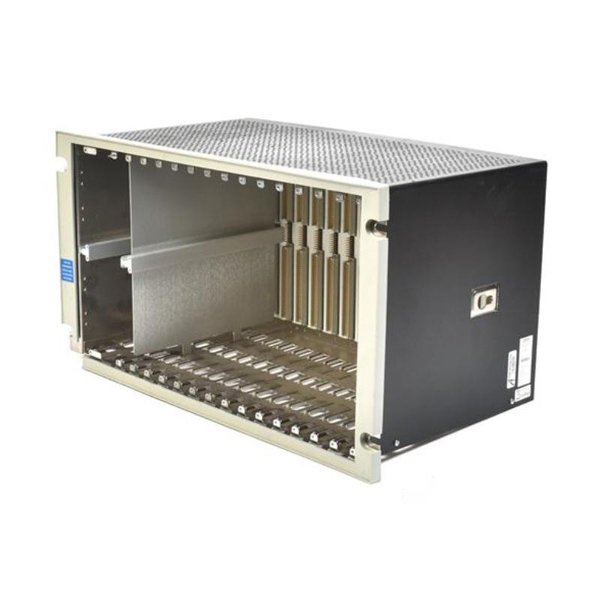

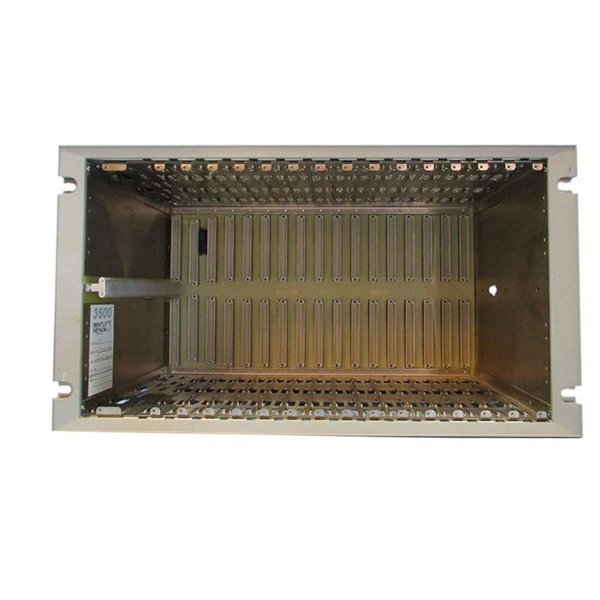

Bently Nevada 3500/05-01-03-05-00-01 3500/05 System Rack

The rack serves as the mechanical and electrical foundation for the 3500 Series modules, allowing seamless integration of monitoring modules, communication interfaces, and power supplies. With redundant power options, high signal density, and support for multiple configurations, it is engineered for both reliability and flexibility in harsh industrial environments.

Technical Specifications

Product Applications

The 3500/05-01-03-05-00-01 System Rack is a foundational component used in:

• Turbomachinery protection systems

• Condition monitoring of compressors, turbines, and pumps

• Industrial asset health management

• Power plants and utility substations

• Oil and gas upstream and downstream installations

• High-value rotating equipment control panels

• Refineries and chemical plants with large-scale machinery

• Continuous processing industries with 24/7 uptime demands

Its robustness and modular flexibility make it ideal for critical environments requiring uninterrupted, real-time monitoring.

Product Advantages

• Modular Architecture: Accommodates up to 14 monitoring and interface modules, including redundant power and communication modules.

• Redundant Power Supply Support: Dual-slot design enables hot-swappable redundant power modules for continuous operation.

• Reliable Communication: Rear I/O configuration facilitates clean wiring and robust data transmission in electrically noisy environments.

• Industry Proven: Part of the globally trusted 3500 system, this rack benefits from years of field-proven reliability.

• Compact Form Factor: Despite supporting a full set of monitoring modules, the rack maintains a standard 19-inch width for integration into existing control panels.

• Environmental Durability: Rated for extreme industrial temperatures and high humidity, ensuring system resilience.

FAQ

Q1: What type of modules can be installed in this rack?

A1: The rack supports all Bently Nevada 3500 Series modules including monitoring modules, relay modules, communication interfaces, and redundant power supplies.

Q2: Is the rack capable of supporting redundant configurations?

A2: Yes, it supports dual power supplies and redundant communication interfaces to ensure continuous system operation.

Q3: Can this system rack be mounted in standard industrial cabinets?

A3: Absolutely. It is designed for standard 19-inch panel mount cabinets or custom enclosures.

Q4: How many monitoring modules can the rack accommodate?

A4: The rack can house up to 14 modules, depending on the power supply and communication module configuration.

Q5: Is the wiring accessible from the front or rear?

A5: This specific rack model uses rear I/O access, ensuring clean and secure wiring, especially in high-vibration environments.

Q6: What environments is this product rated for?

A6: It is suitable for environments with extreme temperatures, high humidity, and industrial-grade electrical noise.

Q7: Does the system require special tools for installation?

A7: No special tools are required; standard industrial fasteners and tools suffice for installation and maintenance.

Q8: How is the system powered?

A8: Power is supplied through the dedicated power supply modules, which can be installed in redundant configuration.

Q9: Can the rack be field-upgraded?

A9: Yes, modules can be added or replaced while the system is powered down, allowing for flexible expansion or maintenance.

Q10: What standards does the rack comply with?

A10: The 3500 series complies with industry standards for electromagnetic compatibility (EMC), safety, and environmental durability including CE, UL, and CSA certifications.
