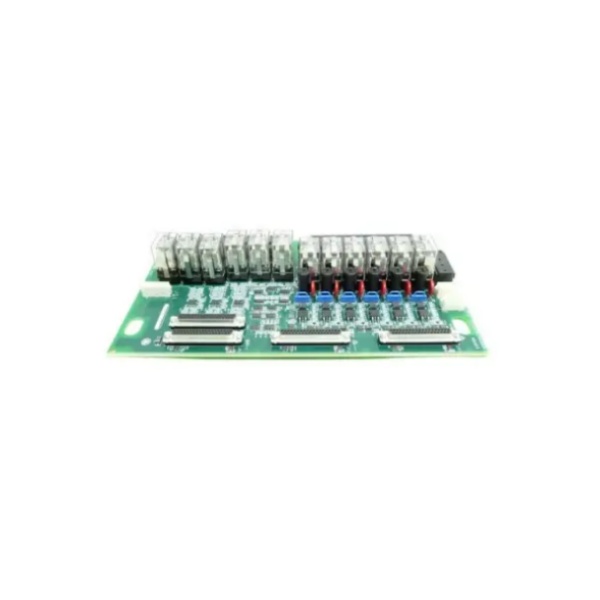

General Electric IS200TRLYH1BED Relay Output Board

The product accommodates and controls up to 12 plug-in magnetic relays. It includes jumper configurations, power supply options, and on-board suppression capabilities. The relay module is a reliable and flexible solution for controlling plug-in magnetic relays in industrial applications. With its configurable relay circuits, multiple power supply options, and on-board suppression capabilities, it features versatility, reliability, and easy integration. In addition, standard 125 V DC or 115/230 V AC, providing flexibility in power supply selection. Optional 24 V DC is also available for specific applications that require this voltage range. Suppression components help mitigate voltage spikes and electrical noise, protecting connected relays and ensuring stable operation even in challenging environmental conditions. The relay board offers a high degree of customization and adaptability. It can be customized to meet the specific needs of different applications.

Frequently asked questions about the product are as follows:

-What is the main function of the IS200TRLYH1BED?

Used for signal output control in gas turbine control systems.

-What systems is the IS200TRLYH1BED typically used for?

Output control module for GE Mark VI or Mark VIe gas turbine control systems.

-How does the IS200TRLYH1BED work?

Receives signals from the control system and converts low-power control signals to high-power outputs through internal relays to drive external devices.
