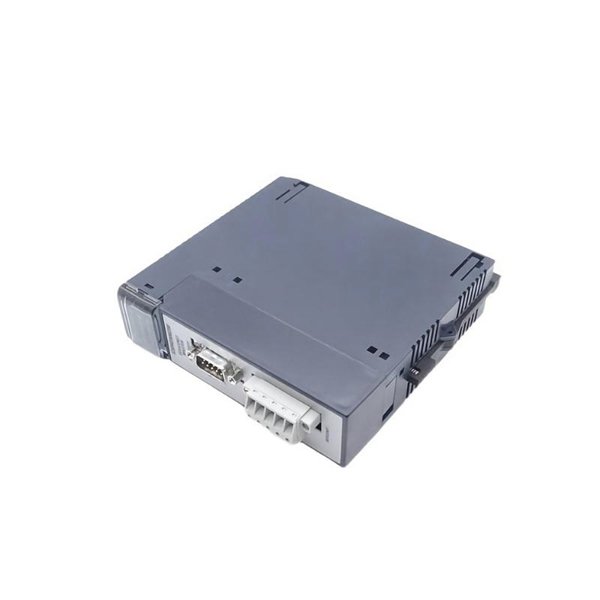

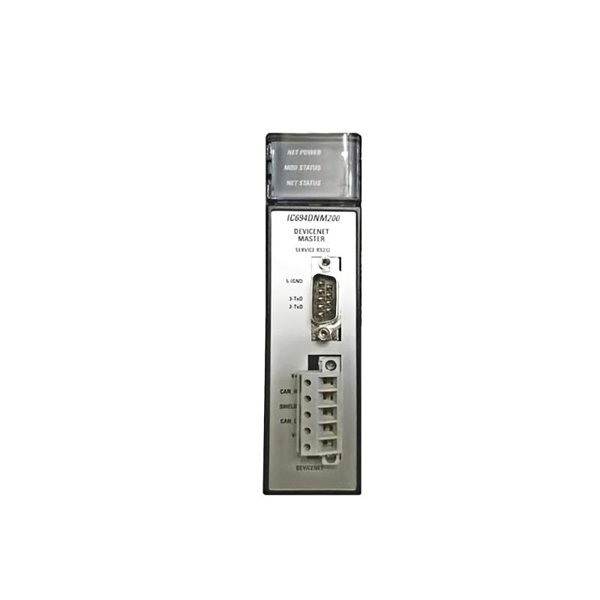

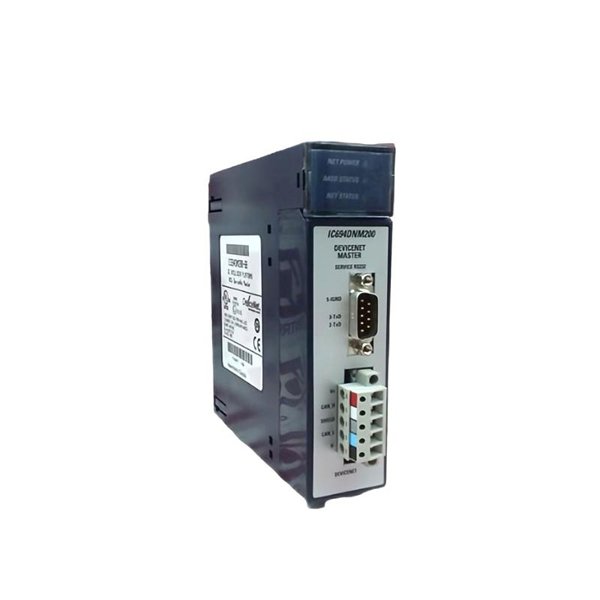

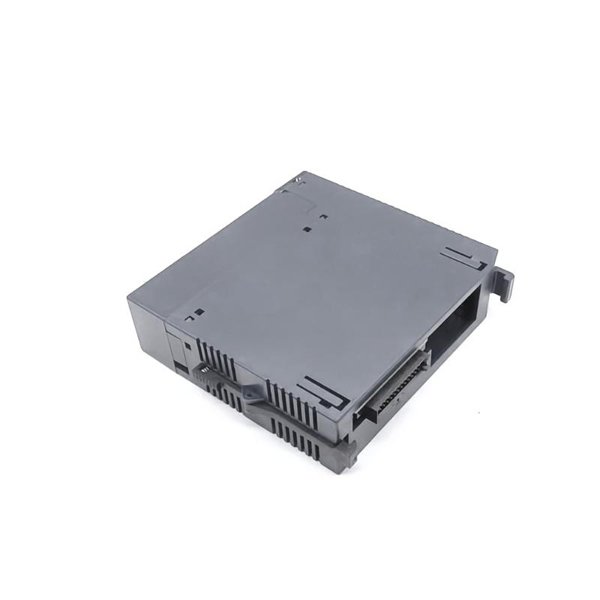

General Electric IC694DNM200 RX3i DeviceNet Master Module

The GE IC694DNM200 is a DeviceNet Master Module designed specifically for the RX3i PLC platform, enabling seamless integration and communication with DeviceNet-compatible devices. As a critical component in modern automation systems, this module acts as a master controller for DeviceNet networks, facilitating high-speed, reliable communication between the RX3i controller and a wide range of I/O devices, drives, sensors, and other industrial equipment.

Built with robust industrial standards in mind, the IC694DNM200 supports deterministic real-time communication essential for complex control tasks. It simplifies system architecture by enabling the RX3i controller to monitor and control numerous DeviceNet nodes efficiently, reducing wiring complexity and enhancing overall system reliability.

This module is designed for easy installation within the RX3i chassis and is compatible with GE’s suite of software tools for configuration and diagnostics, making it a preferred choice for engineers seeking scalable, flexible, and high-performance industrial networking solutions.

Product Specifications

Product Applications

• Factory Automation: Facilitates communication between RX3i controllers and DeviceNet I/O modules, motors, sensors, and actuators on the production floor.

• Material Handling Systems: Provides reliable network control for conveyors, robotic arms, and sorting equipment.

• Packaging Machines: Enables precise control and monitoring of multiple devices communicating over DeviceNet.

• Process Control: Integrates with sensors and valve controllers for continuous process monitoring and adjustments.

• Automotive Manufacturing: Controls complex DeviceNet networks for welding cells, paint lines, and assembly robots.

• Building Automation: Supports integration of HVAC and security devices on DeviceNet networks for centralized control.

Product Advantages

• High Node Capacity: Supports up to 64 DeviceNet devices, allowing large, scalable networks.

• Flexible Communication Speeds: Compatible with common DeviceNet speeds (125, 250, 500 kbps), adaptable to network requirements.

• Real-Time Communication: Ensures deterministic and timely data transfer critical for industrial processes.

• Robust Diagnostics: Onboard LEDs and software tools provide clear network status and troubleshooting capabilities.

• Compact Design: Fits easily into RX3i racks without occupying excessive space.

• Seamless Integration: Works natively with GE RX3i hardware and programming software.

• Reduced Wiring: DeviceNet topology minimizes wiring complexity compared to point-to-point connections.

• Durable Construction: Designed for harsh industrial environments, including temperature and humidity tolerance.

• Industry Standard Compliance: Fully compliant with DeviceNet and CIP communication standards.

• Cost-Effective Networking: Allows integration of multiple devices over a single network, reducing installation and maintenance costs.

Frequently Asked Questions (FAQ)

1. What is the maximum number of DeviceNet nodes supported by the IC694DNM200?

   It supports up to 64 nodes on a single DeviceNet network.

2. Is the IC694DNM200 compatible with all RX3i processors?

   Yes, it is designed to integrate with the entire RX3i PLC family.

3. What communication speeds does this module support?

   It supports 125 kbps, 250 kbps, and 500 kbps DeviceNet speeds.

4. Can the module be installed in existing RX3i racks?

   Yes, it mounts directly into RX3i racks and communicates via the backplane.

5. Does the module provide diagnostics?

   Yes, it has LEDs indicating network status, errors, and node communication.

6. What kind of network topologies can be used with this module?

   Linear, tree, and star topologies are supported.

7. Does the module require an external power supply?

   No, it receives power from the RX3i rack.

8. Can it be used in hazardous environments?

   It is suitable for industrial environments but must comply with additional certifications for hazardous locations.

9. Is DeviceNet the only supported protocol?

   Yes, the IC694DNM200 is specifically designed for DeviceNet networks.

10. What software tools are used to configure the IC694DNM200?

    GE’s programming environment (such as Proficy Machine Edition) is used for configuration and diagnostics.
