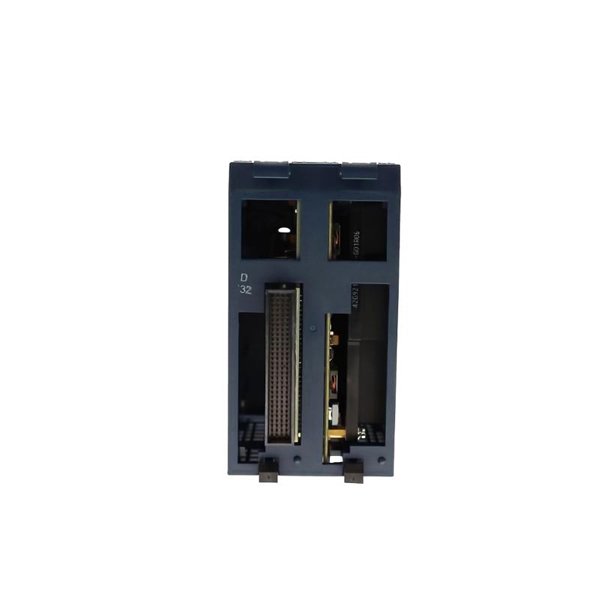

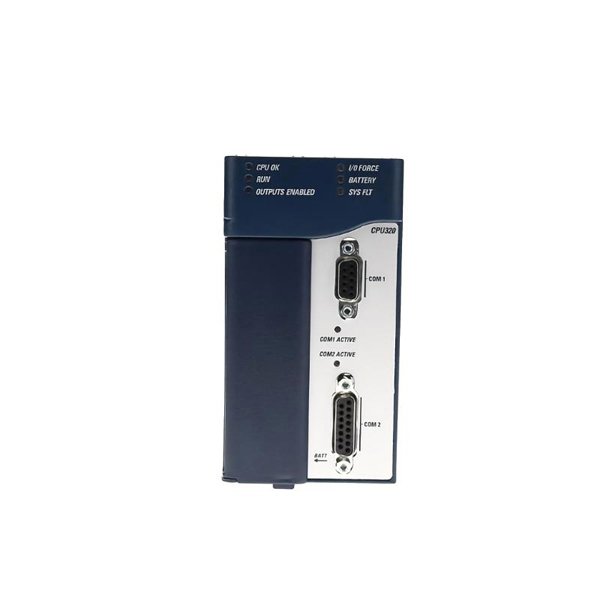

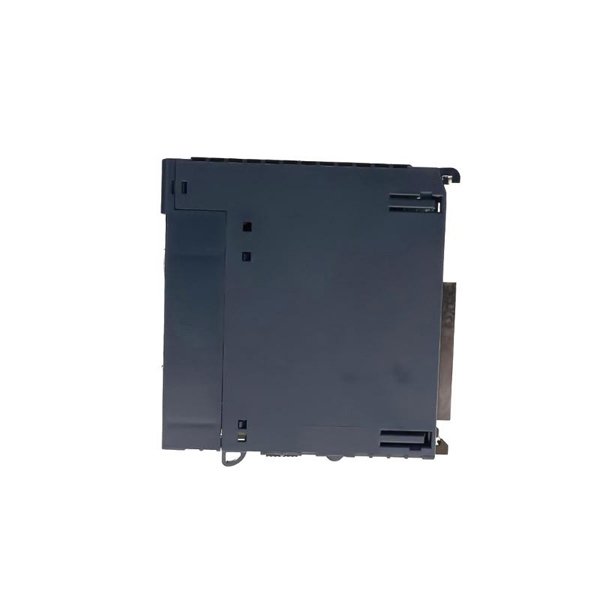

General Electric IC695CPU320 RX3i CPU Controller Module

The GE IC695CPU320 is a high-performance CPU module within the PACSystems RX3i series, designed to meet the rigorous demands of industrial automation. Equipped with a 1.0 GHz Intel Celeron-M processor and substantial memory resources, it delivers rapid execution of complex control programs and efficient data handling. Its modular architecture and versatile communication capabilities make it suitable for a wide range of applications, from discrete manufacturing to process control.

Technical Specifications

Applications

The IC695CPU320 is engineered for a variety of industrial applications, including:

• Discrete Manufacturing: Controls assembly lines, packaging systems, and material handling equipment.

• Process Control: Manages continuous processes in industries such as chemical, oil and gas, and water treatment.

• Infrastructure Automation: Oversees operations in utilities, transportation systems, and building management.

• Energy Sector: Facilitates control and monitoring in power generation and distribution networks.

Advantages

• High-Speed Processing: The 1.0 GHz processor ensures rapid execution of control tasks, enhancing system responsiveness.

• Ample Memory: 64 MB of RAM and 64 MB of flash memory accommodate complex programs and data storage needs.

• Versatile Communication: Dual serial ports support multiple protocols, enabling seamless integration with various devices.

• Modular Design: Facilitates easy system expansion and maintenance, adapting to evolving operational requirements.

• Robust Construction: Designed to operate reliably in industrial environments with varying temperatures and conditions.

Frequently Asked Questions (FAQ)

1. What programming software is compatible with the IC695CPU320?

   • The IC695CPU320 is programmed using GE’s Proficy Machine Edition software, which supports various programming languages including Ladder Logic, Structured Text, and Function Block Diagram.

2. Can the IC695CPU320 operate in high-temperature environments?

   • Yes, it operates effectively within a temperature range of 0°C to 60°C, suitable for most industrial settings.

3. What communication protocols does the IC695CPU320 support?

   • It supports SNP, Serial I/O, and Modbus RTU Slave protocols, allowing integration with diverse systems.

4. Is the IC695CPU320 suitable for applications requiring high-speed processing?

   • Absolutely. Its 1.0 GHz processor ensures rapid execution of control tasks, making it ideal for high-speed applications.

5. How does the IC695CPU320 handle power failures?

   • It features non-volatile flash memory to retain programs and data during power interruptions, ensuring system reliability.

6. What is the protection rating of the IC695CPU320?

   • The module is designed for industrial environments, but specific IP ratings should be verified based on the enclosure used.

7. Can the IC695CPU320 be expanded with additional modules?

   • Yes, its modular design allows for easy expansion with various I/O and communication modules.

8. What is the typical power consumption of the IC695CPU320?

   • Specific power consumption details should be obtained from the manufacturer’s documentation, considering the system configuration.

9. Does the IC695CPU320 support real-time clock functionality?

   • Yes, it includes a battery-backed real-time clock for time-sensitive applications.

10. What are the dimensions and weight of the IC695CPU320?

    • It measures 91 x 129 x 123 mm and weighs 0.703 kg.
