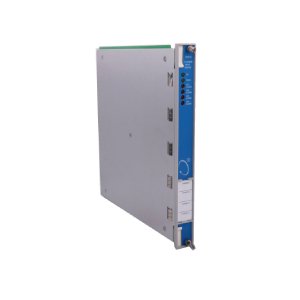

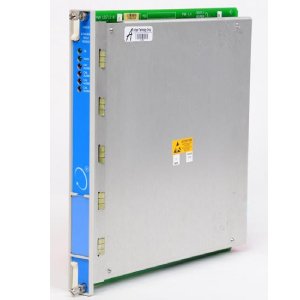

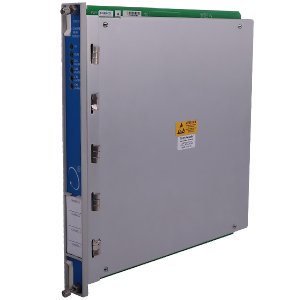

Bently Nevada 3500/32 4-Channel Relay Module

The Bently Nevada 3500/32 is a 4 channel relay module designed for use with 3500 monitoring systems. It provides four relay outputs for use in machinery protection applications, allowing for quick response to machinery faults. The module can be configured for use as a trip module or an alarm module, depending on the specific needs of the application. It features high reliability and accuracy, making it an ideal choice for critical machinery monitoring applications.

The 4-Channel Relay Module is a full-height module that provides four relay outputs. Any number of 4-Channel Relay Modules can be placed in any of the slots to the right of the Rack Interface Module. Each output of the 4-Channel Relay Module can be independently programmed to perform needed voting logic.Each relay utilized on the 4-Channel Relay Module includes “Alarm Drive Logic”.

The Alarm Drive Logic is programmed using AND and OR logic, and can utilize alarming inputs (alerts and dangers) from any monitor channel or any combination of monitor channels in the rack. This Alarm Drive Logic programming uses the 3500 Rack Configuration Software to meet the specific

needs of the application.

Note: Triple Modular Redundant (TMR) applications require the use of the 3500/34 TMR Relay Module. Consult Bently Nevada Specification and Ordering Information part number 141534-01 for details
