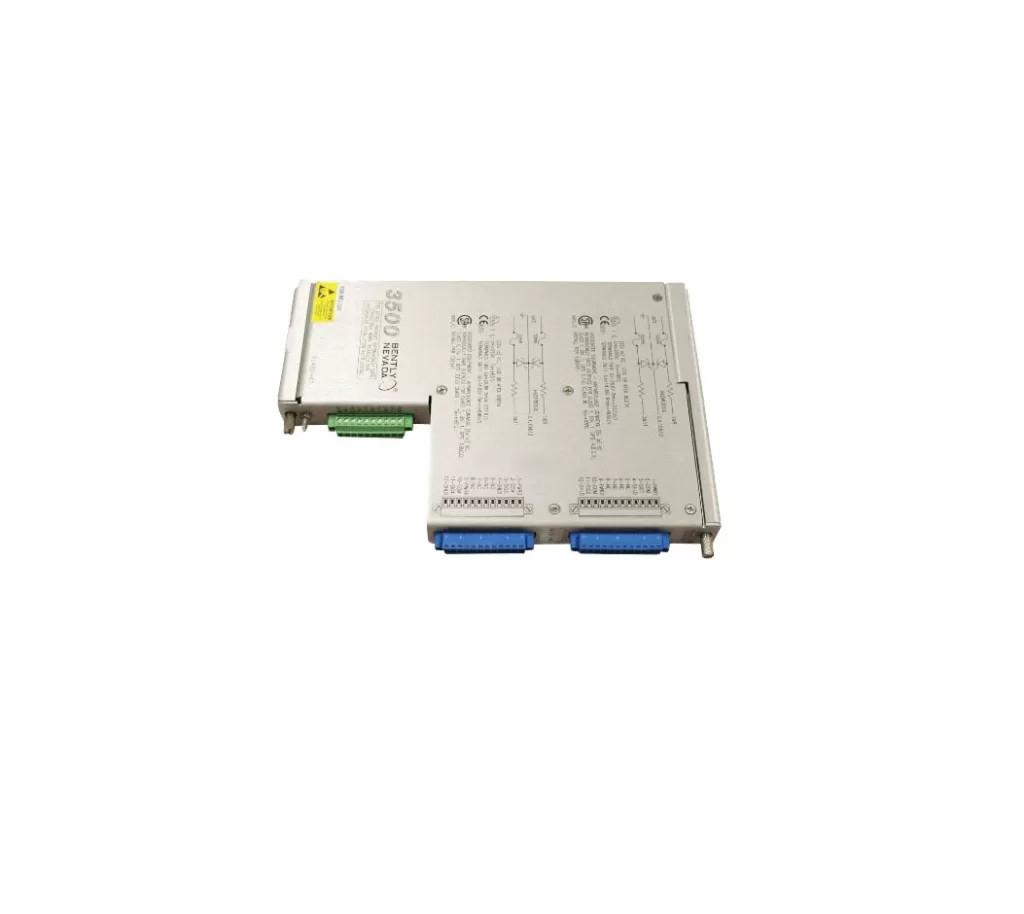

BENTLY NEVADA 135473-01 3500/25 Keyphasor I/O Module

The 135473-01 Keyphasor I/O Module features internal barriers and terminations, offering a complete Keyphasor signal solution. The  135473-01 3500/25 Isolated Keyphasor I/O module is designed for applications in which the Keyphasor signals are tied in parallel to multiple devices and require isolation from other systems, such as a control system. The Isolated I/O module was created specifically for Magnetic Pickup applications but is compatible with and will provide isolation for Proximitor* applications as long as an external power supply is provided. Note that the intent of this I/O module was primarily to measure shaft speed and not phase. The module can provide phase measurements, but this I/O introduces a slightly higher phase shift than the Non-Isolated I/O version. Figure 1 shows the amount of phase shift that the Isolated I/O modules will add at different machine speeds. Enhanced product features include generation of once-per-turn event signals from multi-event-per-turn inputs, field-upgradeable firmware, and asset management data reporting.

Features

• Two channels of Keyphasor input
• Two channels of Keyphasor output
• Supports a variety of Keyphasor sensors
• Provides real-time monitoring of Keyphasor data
• Generates alarms and events based on user-defined thresholds
• Communicates with other BENTLY NEVADA 3500 System modules

Technical Specifications

• Dimensions: 2.5cm x 24.2cm x 24.2cm
• Weight: 0.46 kg
• Power requirements: 115VAC or 230VAC
• Environmental rating: IP65
• Operating temperature range: -40°C to +70°C

Download PDF File 3500/25 Enhanced Keyphasor*Module: 3500-25-01-01-00
