Schneider STBDDO3600 Standard Digital Output Module

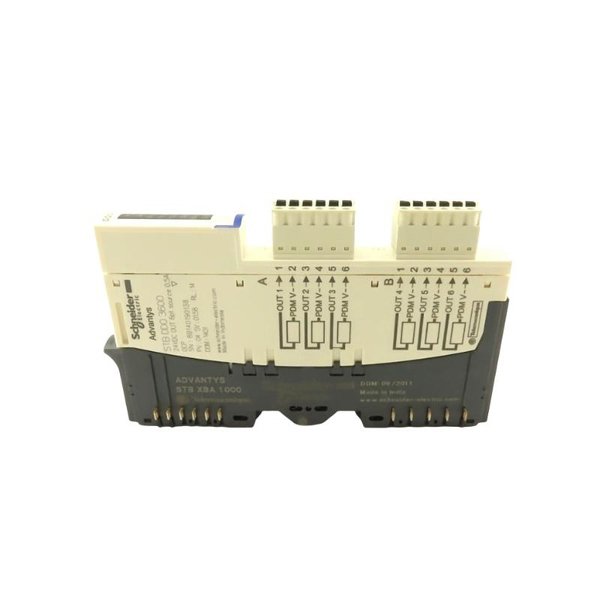

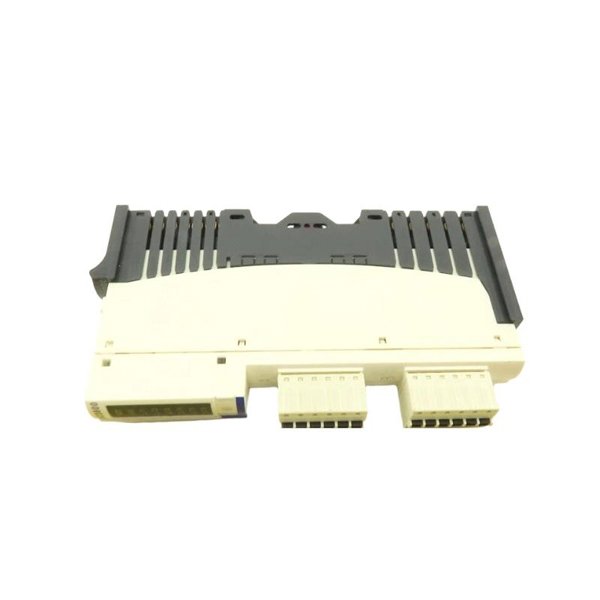

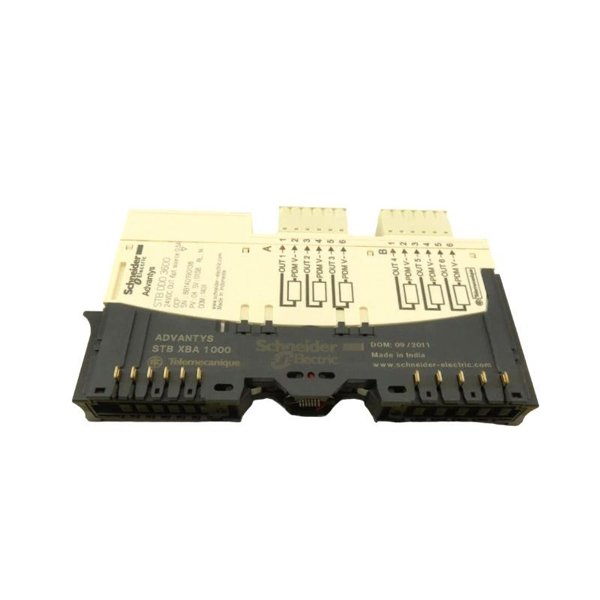

The Schneider Electric STBDDO3600 is a Standard Digital Output Module designed for the Modicon STB (Smart Terminal Block) distributed I/O system. It provides discrete output control within distributed automation architectures and is widely used in industrial environments where space-saving, modular, and fieldbus-connected I/O systems are required.

The STBDDO3600 features 16 output channels, each capable of switching 24V DC signals. These outputs are sink-type (negative logic), meaning the module provides current to the load. It is compact, DIN-rail mountable, and designed for easy integration into Modbus, Profibus, EtherNet/IP, or CANopen-based distributed control systems via STB network adapters.

This module is ideal for controlling actuators, valves, indicators, solenoids, and other on/off devices in automated systems. With its rugged design, excellent diagnostics, and seamless integration, the STBDDO3600 plays a crucial role in improving system flexibility, reliability, and maintainability.

Product Specifications

Product Applications

The STBDDO3600 module is used extensively in distributed automation systems across multiple industries. Its key applications include:

• Factory Automation

  Control of actuators, motors, signal lamps, solenoids, and interlocks.

• Material Handling Systems

  Actuating conveyors, diverters, robotic arms, and loading systems.

• Food and Beverage Industry

  Driving packaging equipment, automated capping machines, and bottling lines.

• Building Automation

  Controlling HVAC valves, lighting systems, and door actuators.

• Process Control Systems

  Interfacing with on/off devices in water treatment, chemical, and oil & gas sectors.

• Renewable Energy Plants

  Managing switching operations in solar tracking systems and turbine control.

Product Advantages

• Modular Design

  Easily fits into distributed I/O architectures with plug-and-play simplicity.

• Space Saving

  Compact footprint ideal for control cabinets and remote panels.

• Fieldbus Compatibility

  Works with various STB adapters (Modbus, CANopen, Profibus, etc.).

• Reliable Switching

  Capable of handling industrial-grade loads with quick and reliable response.

• Diagnostic Feedback

  Real-time fault indicators simplify maintenance and troubleshooting.

• Scalable Integration

  Part of a larger, highly scalable automation platform for custom needs.

• Industrial Grade Protection

  Fully insulated, rugged construction for harsh environments.

• Global Compliance

  Certified for use in international industrial applications.

Frequently Asked Questions (FAQ)

1. What does the STBDDO3600 module do?

   It provides 16 discrete digital output channels for controlling 24V DC devices.

2. Is this module sink or source type?

   It is a sink (negative logic) output module.

3. Can it be used with Modbus or Profibus systems?

   Yes, when paired with an appropriate STB network interface module.

4. What kind of devices can it control?

   Valves, lamps, solenoids, contactors, relays, and other on/off field devices.

5. Is each channel protected against short circuits?

   Yes, and the module provides diagnostics via LED indicators.

6. What is the max output current per channel?

   0.5 A per channel, with a total module current of 8 A max.

7. Can this module be hot-swapped?

   Yes, as part of the STB system, it supports hot swapping under certain conditions.

8. Does it require an external power supply?

   Yes, field devices powered through external 24V DC power supply.

9. Where should it be mounted?

   On a DIN rail, within an STB I/O system assembly.

10. Is the module firmware upgradeable?

    No, it’s a hardware I/O module with fixed logic.
