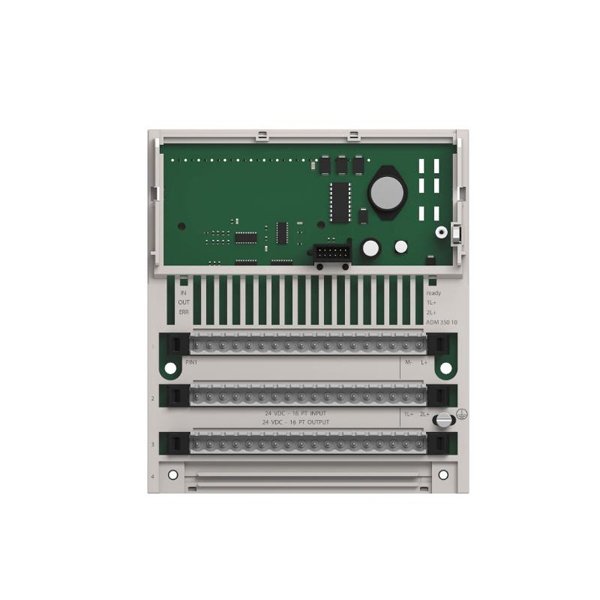

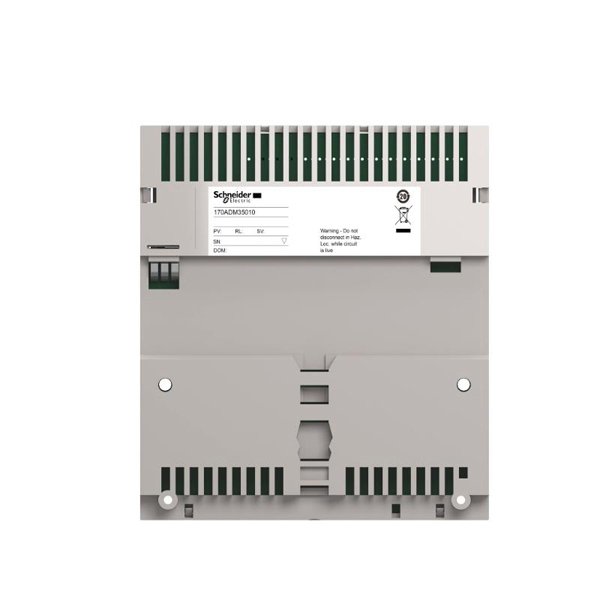

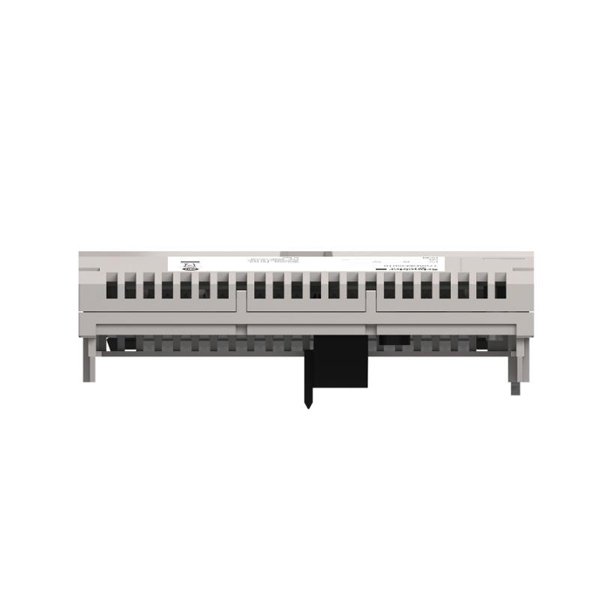

Schneider 170ADM35010 Discrete I/O Module
Manufacturer:Schneider
Product Number:170ADM35010
Product Type:Discrete I/O Module
Origin:France
Dimensions:47.5 × 125 × 141.5 mm
Weight:0.2 kg
Views:91
Payment Methods:T/T, PayPal, Western Union
Condition:New & In Stock
Warranty:1 Year
Lead Time:1-3 Working Days
Certificate:COO
Courier partners:DHL, UPS, TNT, FedEx and EMS.
Business hours:7*24
Product Description
The Schneider Electric 170ADM35010 is a discrete I/O module from the Modicon Momentum series, designed for distributed control architectures. This module integrates both input and output functionalities, offering 16 discrete inputs and 16 discrete outputs in a compact form factor. Its solid-state design ensures reliable performance in various industrial environments, making it suitable for applications requiring efficient digital signal processing.
Technical Specifications
| Feature | Specification |
|---|---|
| Product Type | Discrete Solid-State I/O Base DC |
| Input Channels | 16 (IEC 1131-2 Type 1) |
| Input Logic | Positive |
| Input Voltage | 24 V DC |
| Input Voltage Limits | -3 to 30 V DC |
| Voltage State 0 (Guaranteed) | -3 to 5 V |
| Voltage State 1 (Guaranteed) | 11 to 30 V |
| Input Resistance | 4 kΩ |
| Output Channels | 16 |
| Output Type | Solid-State Switch |
| Output Logic | Positive |
| Output Voltage | ≤ 30 V DC (24 V DC nominal) |
| Output Current per Point | 0.5 A |
| Output Current per Group | 4 A |
| Output Current per Module | 8 A |
| Peak Output Current | 5 A |
| Maximum Leakage Current | 1 mA at 24 V DC |
| Voltage Drop (Max) | <0.5 V at 0.5 A |
| Response Time (Output) | <0.1 ms (0 to 1 or 1 to 0) |
| Response Time (Input) | 2.2 ms (0 to 1), 3.3 ms (1 to 0) |
| Isolation Voltage | 500 V AC (channel-to-bus) |
| Power Dissipation | 6 W (≤ 8 W) |
| Current Consumption | 250 mA at 24 V DC |
| Local Signaling | 16 LEDs for channel status |
| Operating Temperature | 0 to 60 °C |
| Storage Temperature | -40 to 85 °C |
| Relative Humidity | 95% without condensation |
| Operating Altitude | ≤ 5000 m |
| Dimensions (W x H x D) | 47.5 × 125 × 141.5 mm |
| Weight | 0.2 kg |
| Certifications | UL, CSA, CE |
| Environmental Resistance | IEC 801-2 (ESD), IEC 801-3 (EMF) |
Product Applications
The 170ADM35010 module is versatile and can be employed in various industrial applications:
Manufacturing Automation: Monitoring and controlling machinery, conveyors, and assembly lines.
Infrastructure Management: Managing building systems, lighting, and HVAC controls.
Energy Sector: Supervising power distribution, renewable energy systems, and substations.
Transportation Systems: Controlling signaling systems, barriers, and traffic management.
Water Treatment Plants: Monitoring pumps, valves, and treatment processes.
Product Advantages
Integrated I/O Functionality: Combines both input and output channels, reducing the need for multiple modules.
Compact Design: Saves space in control panels and reduces wiring complexity.
Fast Response Times: Ensures timely processing of digital signals for real-time applications.
Robust Construction: Designed to withstand harsh industrial environments with high humidity and temperature variations.
Easy Diagnostics: LED indicators for each channel facilitate quick troubleshooting.
Seamless Integration: Compatible with the Modicon Momentum platform, allowing for flexible system configurations.
Frequently Asked Questions (FAQ)
What is the primary function of the 170ADM35010 module?
It serves as a discrete I/O module, providing 16 input and 16 output channels for digital signal processing in automation systems.
Can this module handle both sourcing and sinking inputs?
The module is designed for positive logic inputs and outputs, typically associated with sourcing configurations.
Is the module hot-swappable?
No, it’s recommended to power down the system before replacing or installing the module to ensure safety and prevent damage.
What type of outputs does the module use?
It utilizes solid-state switches for its output channels, offering reliable and fast switching capabilities.
How is the module mounted?
It is designed to be mounted on a DIN rail or directly onto a compatible base within the Modicon Momentum system.
Does the module provide any diagnostic features?
Yes, it includes LED indicators for each channel, allowing for easy monitoring of input and output statuses.
What is the maximum current the module can handle per output channel?
Each output channel can handle up to 0.5 A, with a maximum of 4 A per group and 8 A per module.
Is the module suitable for outdoor installations?
While it has robust environmental resistance, it’s primarily designed for indoor use within control panels or enclosures.
What certifications does the module have?
It is certified by UL, CSA, and CE, ensuring compliance with international safety and quality standards.
Can the module be used in high-altitude locations?
Yes, it is rated for operation at altitudes up to 5000 meters.
Loading comments...
Schneider 170ADM35010 Discrete I/O Module
Manufacturer:Schneider
Product Number:170ADM35010
Product Type:Discrete I/O Module
Origin:France
Dimensions:47.5 × 125 × 141.5 mm
Weight:0.2 kg
Views:91
Payment Methods:T/T, PayPal, Western Union
Condition:New & In Stock
Warranty:1 Year
Lead Time:1-3 Working Days
Certificate:COO
Courier partners:DHL, UPS, TNT, FedEx and EMS.
Business hours:7*24
Product Description
The Schneider Electric 170ADM35010 is a discrete I/O module from the Modicon Momentum series, designed for distributed control architectures. This module integrates both input and output functionalities, offering 16 discrete inputs and 16 discrete outputs in a compact form factor. Its solid-state design ensures reliable performance in various industrial environments, making it suitable for applications requiring efficient digital signal processing.
Technical Specifications
| Feature | Specification |
|---|---|
| Product Type | Discrete Solid-State I/O Base DC |
| Input Channels | 16 (IEC 1131-2 Type 1) |
| Input Logic | Positive |
| Input Voltage | 24 V DC |
| Input Voltage Limits | -3 to 30 V DC |
| Voltage State 0 (Guaranteed) | -3 to 5 V |
| Voltage State 1 (Guaranteed) | 11 to 30 V |
| Input Resistance | 4 kΩ |
| Output Channels | 16 |
| Output Type | Solid-State Switch |
| Output Logic | Positive |
| Output Voltage | ≤ 30 V DC (24 V DC nominal) |
| Output Current per Point | 0.5 A |
| Output Current per Group | 4 A |
| Output Current per Module | 8 A |
| Peak Output Current | 5 A |
| Maximum Leakage Current | 1 mA at 24 V DC |
| Voltage Drop (Max) | <0.5 V at 0.5 A |
| Response Time (Output) | <0.1 ms (0 to 1 or 1 to 0) |
| Response Time (Input) | 2.2 ms (0 to 1), 3.3 ms (1 to 0) |
| Isolation Voltage | 500 V AC (channel-to-bus) |
| Power Dissipation | 6 W (≤ 8 W) |
| Current Consumption | 250 mA at 24 V DC |
| Local Signaling | 16 LEDs for channel status |
| Operating Temperature | 0 to 60 °C |
| Storage Temperature | -40 to 85 °C |
| Relative Humidity | 95% without condensation |
| Operating Altitude | ≤ 5000 m |
| Dimensions (W x H x D) | 47.5 × 125 × 141.5 mm |
| Weight | 0.2 kg |
| Certifications | UL, CSA, CE |
| Environmental Resistance | IEC 801-2 (ESD), IEC 801-3 (EMF) |
Product Applications
The 170ADM35010 module is versatile and can be employed in various industrial applications:
Manufacturing Automation: Monitoring and controlling machinery, conveyors, and assembly lines.
Infrastructure Management: Managing building systems, lighting, and HVAC controls.
Energy Sector: Supervising power distribution, renewable energy systems, and substations.
Transportation Systems: Controlling signaling systems, barriers, and traffic management.
Water Treatment Plants: Monitoring pumps, valves, and treatment processes.
Product Advantages
Integrated I/O Functionality: Combines both input and output channels, reducing the need for multiple modules.
Compact Design: Saves space in control panels and reduces wiring complexity.
Fast Response Times: Ensures timely processing of digital signals for real-time applications.
Robust Construction: Designed to withstand harsh industrial environments with high humidity and temperature variations.
Easy Diagnostics: LED indicators for each channel facilitate quick troubleshooting.
Seamless Integration: Compatible with the Modicon Momentum platform, allowing for flexible system configurations.
Frequently Asked Questions (FAQ)
What is the primary function of the 170ADM35010 module?
It serves as a discrete I/O module, providing 16 input and 16 output channels for digital signal processing in automation systems.
Can this module handle both sourcing and sinking inputs?
The module is designed for positive logic inputs and outputs, typically associated with sourcing configurations.
Is the module hot-swappable?
No, it’s recommended to power down the system before replacing or installing the module to ensure safety and prevent damage.
What type of outputs does the module use?
It utilizes solid-state switches for its output channels, offering reliable and fast switching capabilities.
How is the module mounted?
It is designed to be mounted on a DIN rail or directly onto a compatible base within the Modicon Momentum system.
Does the module provide any diagnostic features?
Yes, it includes LED indicators for each channel, allowing for easy monitoring of input and output statuses.
What is the maximum current the module can handle per output channel?
Each output channel can handle up to 0.5 A, with a maximum of 4 A per group and 8 A per module.
Is the module suitable for outdoor installations?
While it has robust environmental resistance, it’s primarily designed for indoor use within control panels or enclosures.
What certifications does the module have?
It is certified by UL, CSA, and CE, ensuring compliance with international safety and quality standards.
Can the module be used in high-altitude locations?
Yes, it is rated for operation at altitudes up to 5000 meters.
