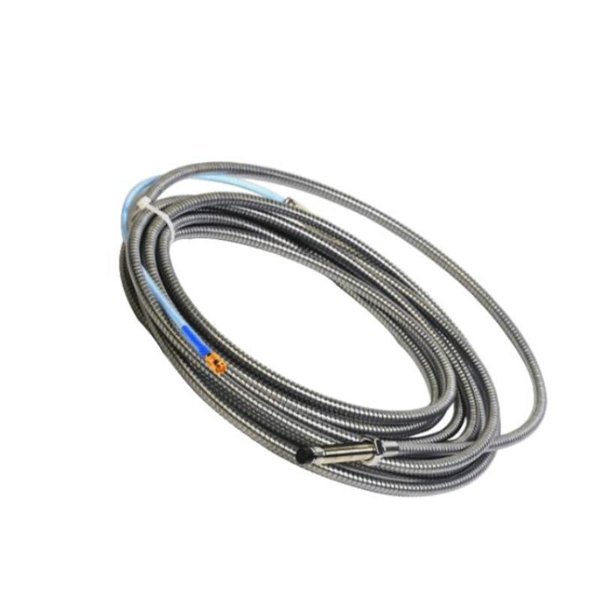

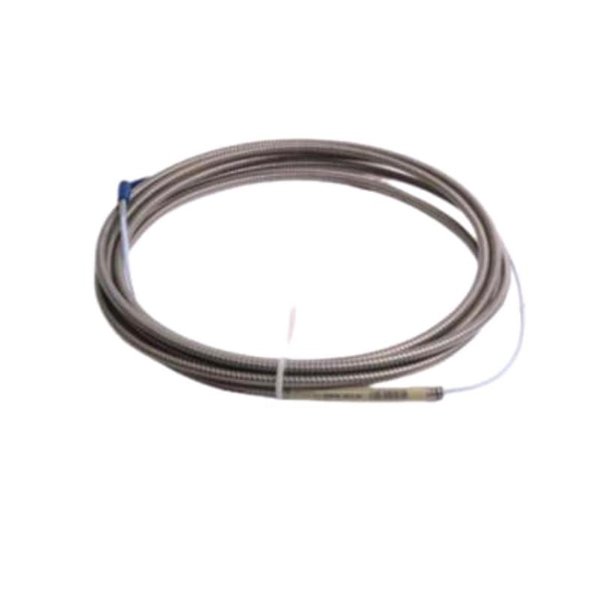

Bently Nevada 330930-045-01-00 3300 NSv Extension Cable

Designed with a 5mm tip and a 45-inch armored cable, this model is optimized for applications that require long cable runs without signal degradation. It interfaces with Bently Nevada proximitor sensors to provide linear and reliable outputs, enabling predictive maintenance and machinery protection in real time.

Technical Specifications

Applications

The 330930-045-01-00 proximity probe is extensively used in:

• Power generation: Monitoring turbine shaft vibration and position.

• Petrochemical plants: Detecting shaft displacement in compressors.

• Industrial manufacturing: Ensuring alignment in motors and fans.

• Oil & gas sector: Monitoring rotating equipment to prevent unplanned shutdowns.

• Marine and shipbuilding: Detecting early signs of bearing or rotor issues.

• Steel and metal processing: Used on rolling mills and high-speed motors.

This probe is an essential component in systems that demand real-time condition monitoring and machinery protection.

Product Advantages

• High Accuracy and Repeatability: Maintains precise shaft position detection even under high temperatures and vibration.

• Robust Construction: Armored cable and stainless steel materials provide long-term durability in industrial settings.

• Wide Compatibility: Works seamlessly with Bently Nevada 3300 XL Proximitor systems.

• Extended Cable Length: 45-inch cable allows flexible installation without compromising signal integrity.

• Non-Contact Measurement: Reduces wear and prolongs life, especially in high-speed machinery.

• Reliable in Harsh Environments: Resistant to oil, dirt, moisture, and corrosion.

FAQs

Q1: What is the main function of the 330930-045-01-00 proximity probe?

A1: It detects the relative motion and vibration of rotating shafts in machinery using non-contact eddy current technology.

Q2: Is this probe compatible with all Bently Nevada systems?

A2: It is specifically designed for use with the 3300 XL Proximitor Sensor system and may not be compatible with other series without modification.

Q3: Can this probe be used in hazardous or high-temperature environments?

A3: Yes, it is built to withstand temperatures up to +177°C and has a sealed design for oil and dust protection.

Q4: What does the “045” in the model number indicate?

A4: It signifies the probe cable length, which in this case is 45 inches.

Q5: How is the probe installed?

A5: It is mounted via a threaded tip (3/8-24 UNF) into a fixed bracket, positioned close to the rotating shaft.

Q6: Does the probe need calibration?

A6: No, it comes pre-calibrated from the factory, but system calibration with proximitor sensors is required during setup.

Q7: Is this probe reusable after removal?

A7: Yes, if undamaged. However, the armored cable should be inspected to ensure integrity before reinstallation.

Q8: Can it detect both vibration and shaft position?

A8: Yes, it provides data that can be used to measure both radial vibration and axial shaft position.

Q9: How does the armor help the probe?

A9: The armor protects the internal cable from mechanical damage, oil, and environmental exposure.

Q10: Is a longer cable length available?

A10: Yes, Bently Nevada offers other variants with different lengths such as 60, 80, or 100 inches.
