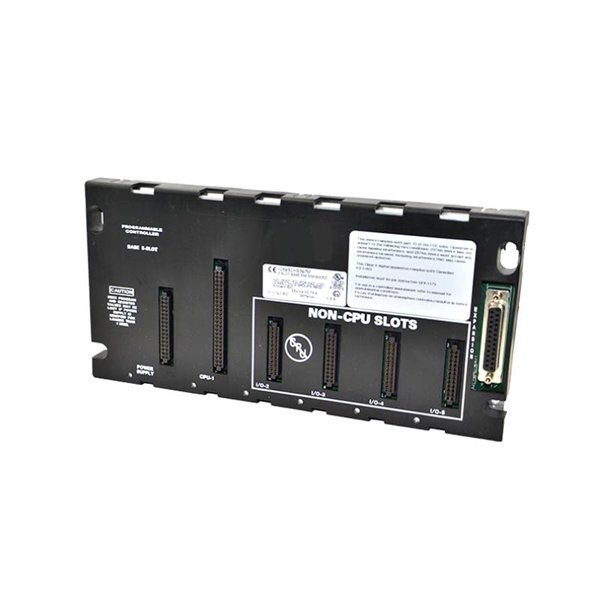

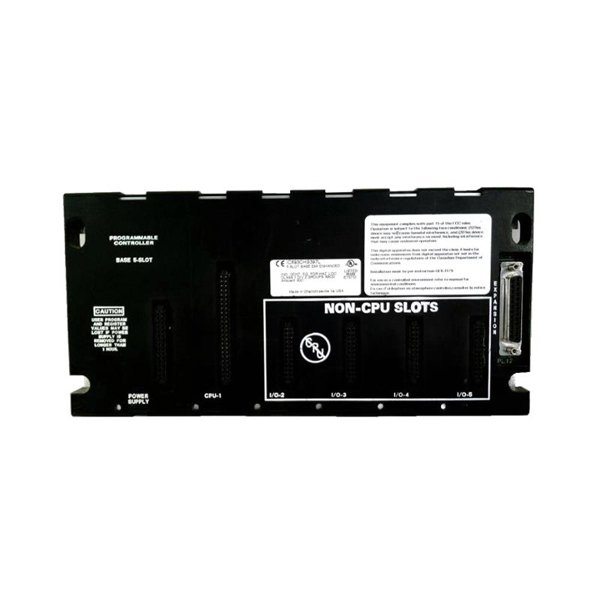

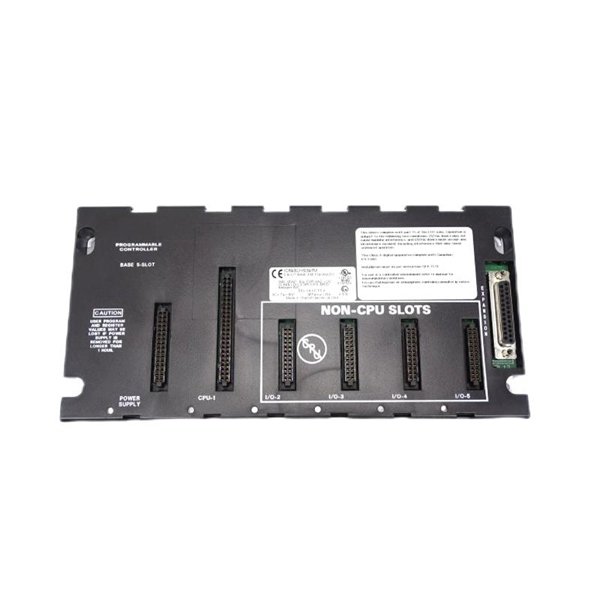

General Electric IC693CHS397M 5-slot Expansion Base

The GE IC693CHS397M 5-Slot Expansion Base is an essential part of the VersaMax PLC system designed to expand the I/O capacity by providing an additional 5 I/O slots. This baseplate is primarily used to increase the scalability and flexibility of the VersaMax PLC, allowing users to add more I/O modules to suit their industrial automation needs. Whether for small or medium-sized automation systems, the IC693CHS397M provides a cost-effective solution to extend the capabilities of the existing PLC setup.

The IC693CHS397M features a compact design that supports reliable performance in a variety of industrial environments, including manufacturing, process control, and remote automation systems. This model is an ideal solution for applications requiring a smaller footprint while still offering the necessary expansion and integration capabilities.

Product Specifications

Applications

The GE IC693CHS397M 5-Slot Expansion Base is suitable for a wide range of applications where expansion of a VersaMax PLC system is required:

1. Small to Medium Industrial Automation: It allows for easy expansion of I/O points for smaller automation systems.

2. Process Control Systems: Ideal for controlling various industrial processes, this unit enhances the ability to manage input and output modules effectively.

3. Manufacturing Automation: Helps to streamline processes by adding more I/O channels to control machinery, sensors, and actuators in automated production lines.

4. Energy Management: Useful in expanding PLC systems for managing energy-efficient systems in power plants and renewable energy setups.

5. Remote Monitoring and Automation: Perfect for remote applications that need expanded control without the need for a full system upgrade.

6. Machine Control: Expands machine control systems for increased automation and enhanced functionality in complex machine operations.

Advantages of GE IC693CHS397M

• Compact Design: The 5-slot base is designed to provide a space-efficient expansion solution, ideal for smaller setups where space is limited.

• Seamless Integration: It integrates smoothly with existing GE VersaMax PLC systems, offering easy installation and system expansion.

• Scalability: This expansion base allows the user to easily add up to 5 additional I/O modules, which increases system capacity as the automation needs grow.

• Enhanced System Performance: By adding more I/O points, the system can handle more inputs and outputs, improving overall system response time and efficiency.

• Durability: Designed for harsh industrial environments with an IP20 rating, the unit provides protection against dust and direct touch, ensuring longevity.

• Low Power Consumption: The unit operates with minimal power consumption at a 5 V DC ± 5% supply, reducing the overall system’s energy footprint.

• Flexible Mounting: It can be mounted vertically on a DIN rail, offering flexibility in installation and making it easier to integrate into different industrial settings.

• Cost-Effective: Ideal for users looking to expand their PLC system without incurring the cost of replacing the entire setup.

Frequently Asked Questions (FAQ)

1. What is the GE IC693CHS397M used for?

   • The IC693CHS397M is a 5-slot I/O expansion base used to expand the number of I/O modules for a VersaMax PLC system, allowing for more control and flexibility.

2. How many I/O modules can the IC693CHS397M support?

   • The base supports up to 5 I/O modules.

3. What is the operating temperature range for the IC693CHS397M?

   • The unit operates within a temperature range of 0°C to 60°C.

4. What is the weight of the IC693CHS397M?

   • The unit weighs 0.572 kg.

5. What is the power supply requirement for the IC693CHS397M?

   • The unit requires a 5 V DC ± 5% power supply.

6. Can I use the IC693CHS397M with other GE PLC systems?

   • No, it is specifically designed for use with GE VersaMax PLC systems.

7. How is the IC693CHS397M mounted?

   • The baseplate is mounted on a DIN rail, offering easy installation and secure attachment.

8. What environmental protection does the IC693CHS397M have?

   • The unit is rated with IP20, providing protection against dust and contact with live parts.

9. Can I use this expansion base in large-scale industrial systems?

   • While it’s ideal for smaller to medium-sized systems, the IC693CHS397M can also support large-scale systems by expanding the I/O points within a VersaMax PLC setup.

10. Does the IC693CHS397M support communication modules?

• No, the IC693CHS397M is focused on I/O expansion; however, communication modules can be added separately to the system.
