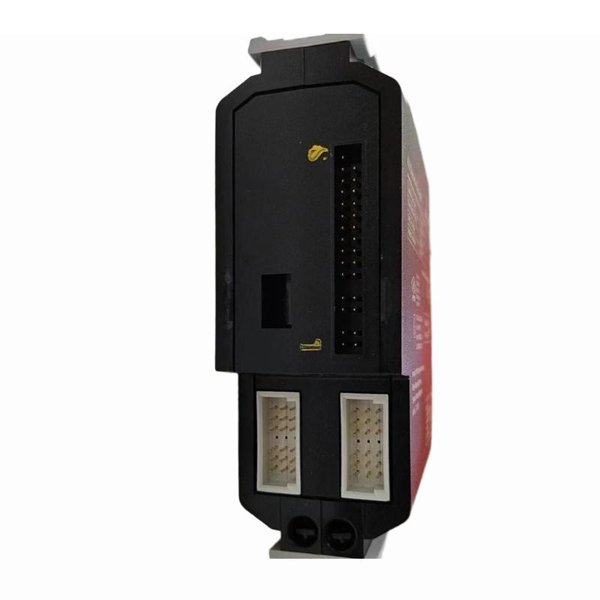

Emerson SE4083S2B11 RTD/ Resistance Terminal Block

The Emerson SE4083S2B11 RTD/Resistance Terminal Block is a specialized terminal block designed for reliable connection of RTD (Resistance Temperature Detectors) and resistance input signals within Emerson’s DeltaV system architecture. It is engineered to provide secure wiring termination and optimal signal integrity in both industrial and process automation environments.

Technical Specifications

Product Applications

• Chemical and petrochemical industries for temperature sensing and monitoring.

• Oil & gas operations for reliable resistance measurement in harsh environments.

• Power plants for precise temperature monitoring in turbines and generators.

• Pharmaceutical manufacturing requiring high accuracy and reliability in process control.

• Food and beverage production for maintaining strict process temperature consistency.

Product Advantages

• High Measurement Accuracy – Designed to minimize signal loss and interference for precise RTD input handling.

• Seamless Integration – Fully compatible with DeltaV I/O modules, ensuring smooth system expansion.

• Robust Design – Built to withstand industrial operating conditions with strong housing materials.

• Ease of Installation – Modular, plug-in design reduces wiring errors and speeds up deployment.

• Flexible Use – Supports multiple RTD/resistance sensor types, providing adaptability across industries.

• Low Maintenance – Engineered for long-term stability and reliability with minimal upkeep.

FAQ

Q1: What types of RTD sensors can the SE4083S2B11 support?

A1: It supports standard 2-wire, 3-wire, and 4-wire RTD configurations, as well as other resistance-based inputs.

Q2: How does the terminal block ensure signal integrity?

A2: The block uses high-quality conductive paths and shielding to minimize noise and ensure accurate data transmission.

Q3: Is this terminal block compatible with all DeltaV I/O carriers?

A3: Yes, it is designed to integrate directly with Emerson DeltaV carriers that support RTD/resistance input modules.

Q4: Can the SE4083S2B11 be hot-swapped during system operation?

A4: While the terminal block itself is not hot-swappable, it can be safely replaced when the carrier is powered down.

Q5: What is the maximum resistance input range supported?

A5: It can support a wide resistance measurement range suitable for industrial-grade RTDs, typically from a few ohms to several kilo-ohms.

Q6: Does the terminal block require calibration?

A6: No, calibration is handled at the I/O module level. The terminal block functions strictly as a reliable wiring interface.

Q7: What wiring method is recommended for stable connection?

A7: Shielded twisted-pair wiring is recommended to minimize electromagnetic interference (EMI).

Q8: Can multiple RTD sensors be connected to one terminal block?

A8: Yes, the block can handle multiple channel inputs as defined by the paired DeltaV I/O module.

Q9: How does the terminal block handle grounding?

A9: It is equipped with grounding provisions to ensure safe operation and reduce signal interference.

Q10: Is the SE4083S2B11 resistant to high vibration environments?

A10: Yes, its mechanical design ensures stable connections even under vibration-prone industrial conditions.
