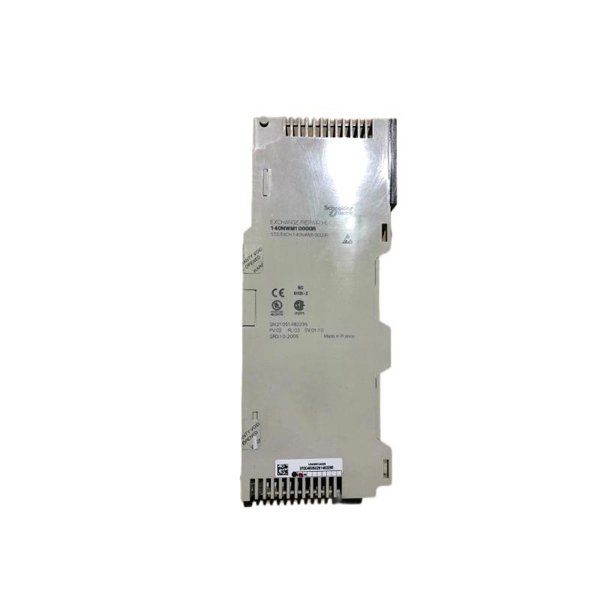

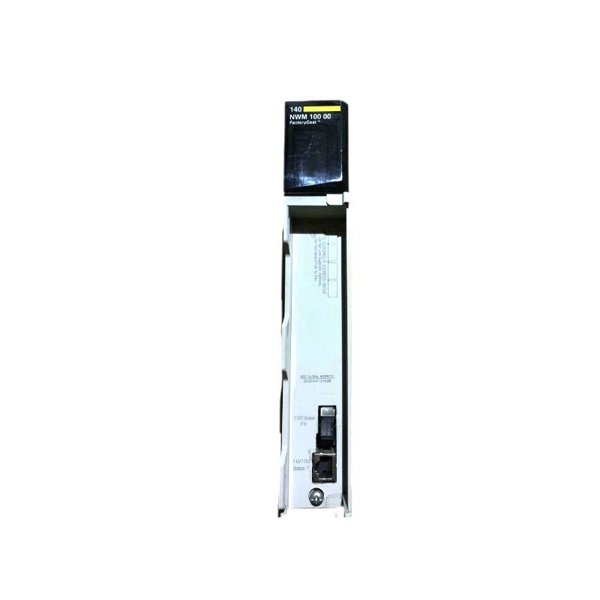

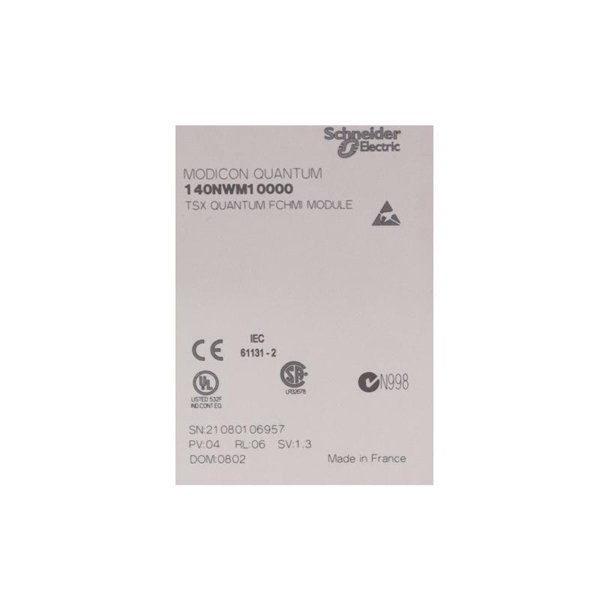

Schneider 140NWM10000 Ethernet Network TCP/IP Module

The Schneider Electric 140NWM10000 is an Ethernet Network TCP/IP Module designed to integrate Modicon Quantum PLCs into Ethernet networks. This module facilitates seamless communication between PLCs and other networked devices, supporting protocols such as Modbus TCP/IP and SNMP. Equipped with a FactoryCast HMI, it allows for real-time monitoring and control via web browsers, enhancing system transparency and accessibility.

Technical Specifications

Product Applications

The 140NWM10000 module is suitable for various industrial applications requiring robust and reliable Ethernet communication:

• Manufacturing Plants: Integrating PLCs with SCADA systems for real-time monitoring and control.

• Process Automation: Facilitating communication between distributed control systems and field devices.

• Energy Management: Monitoring and controlling energy distribution networks.

• Water Treatment Facilities: Managing and automating water purification and distribution processes.

• Building Automation: Controlling HVAC, lighting, and security systems through centralized networks.

Product Advantages

• Enhanced Connectivity: Supports multiple communication protocols, ensuring compatibility with various devices.

• Integrated Web Server: FactoryCast HMI allows for remote monitoring and control via standard web browsers.

• High-Speed Communication: 10/100 Mbps transmission rates ensure rapid data exchange.

• Robust Diagnostics: LED indicators provide immediate status updates, facilitating quick troubleshooting.

• Compact Design: Small form factor allows for easy integration into existing systems without significant space requirements.

FAQ

1. Can the 140NWM10000 module be used in both star and linear Ethernet topologies?

   Yes, it can operate in either topology, provided the connected switches and devices support the appropriate standards.

2. How can I access the built-in web server on the module?

   Connect the module to your network, assign it an IP address, and access it via any modern browser using the FactoryCast web interface.

3. Is VLAN tagging supported on the Ethernet port?

   No, the 140NWM10000 does not support VLAN tagging; it’s designed for standard Modbus TCP/IP environments.

4. What happens if the Ethernet connection is lost during operation?

   Communication will be interrupted, and depending on the PLC programming, it may trigger fault routines or switch to fail-safe mode.

5. Does the module support SNMP traps for monitoring?

   Yes, it supports SNMP and can be configured to send traps to monitoring systems for status and diagnostic reporting.

6. Can this module be used with third-party SCADA software?

   Yes, any SCADA software that supports Modbus TCP/IP communication can interface with the module.

7. How is the IP address configured on the 140NWM10000?

   IP address can be set manually via the configuration utility or assigned dynamically through a DHCP server.

8. Does it support both copper and fiber Ethernet interfaces?

   Yes, it provides both RJ45 (10/100Base-T) and MT-RJ (100Base-FX) ports to support copper and fiber media.

9. Can the module be hot-swapped while the system is running?

   No, it is not hot-swappable. Always power down the rack before inserting or removing the module.

10. What is the recommended method to diagnose communication issues with this module?

    Start with the LED indicators on the front panel to check link/activity status, then use the FactoryCast diagnostic pages to identify network errors, mismatched IP settings, or protocol mismatches.
