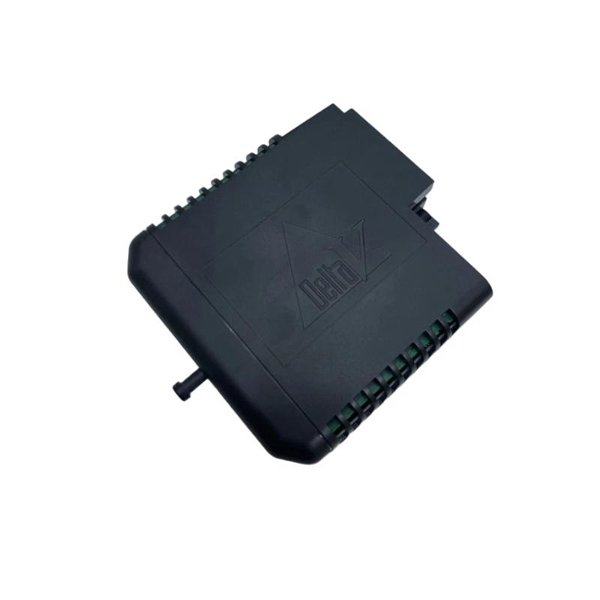

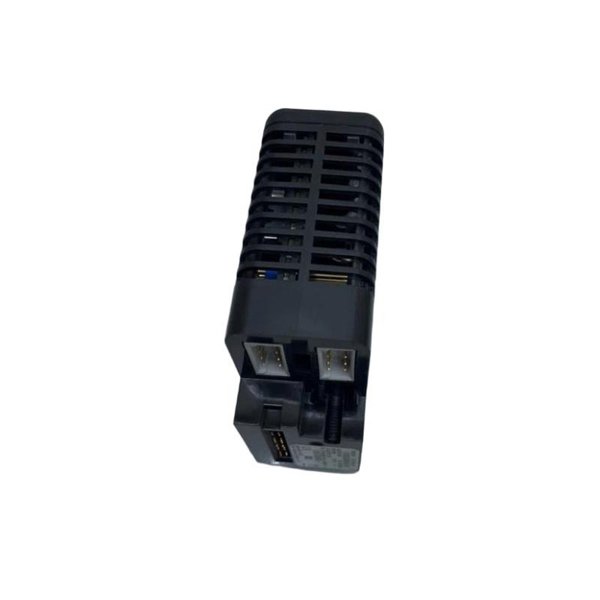

Emerson KJ3101X1-BA1 Discrete Output Modules

The Emerson KJ3101X1-BA1 Discrete Output Module is a high-performance output solution designed for use within the Emerson DeltaV™ distributed control system (DCS). Engineered to control discrete field devices such as relays, solenoids, actuators, and indicators, this module provides 16 high-side output channels with fast response and robust diagnostic capabilities. It ensures reliable operation in industrial environments and supports seamless integration into the DeltaV automation platform.

Key Features

• 16 discrete output channels

• Designed for 24 VDC high-side switching

• Short-circuit protection for each channel

• Open/short load diagnostics

• Hot-swappable under power

• Channel status LEDs for monitoring and troubleshooting

• Supports fail-safe output configuration

• Direct integration with DeltaV systems

Technical Specifications

Industry Applications

• Oil & Gas

• Power Generation

• Chemical Processing

• Water and Wastewater Treatment

• Food and Beverage Manufacturing

• Pharmaceutical Production

Product Advantages

• Reliable high-side output switching for various field devices

• Enhanced fault detection ensures operational safety

• Supports real-time status indication via onboard LEDs

• Seamless installation in existing DeltaV architecture

• Designed for rugged industrial conditions

• Facilitates efficient maintenance with hot-swap support

Frequently Asked Questions (FAQ)

1. How many output channels are available?

   The module supports 16 discrete outputs.

2. What voltage is required for output control?

   It is designed for 24 VDC output applications.

3. Is the module hot-swappable?

   Yes, it can be replaced without powering down the system.

4. What protection features are included?

   Includes short-circuit, open load, and over-temperature diagnostics.

5. Are output states configurable on failure?

   Yes, fail-safe states can be configured for each channel.

6. Can the module be used in safety applications?

   It supports diagnostics suitable for safety-related control logic.

7. What type of switching is used?

   High-side sourcing is employed for each channel.

8. Is LED indication available?

   Yes, each channel has a dedicated LED for status monitoring.

9. What is the max current per output?

   Each channel supports up to 0.5 A.

10. Which DeltaV systems is this compatible with?

    Fully compatible with DeltaV systems using standard I/O carriers.
