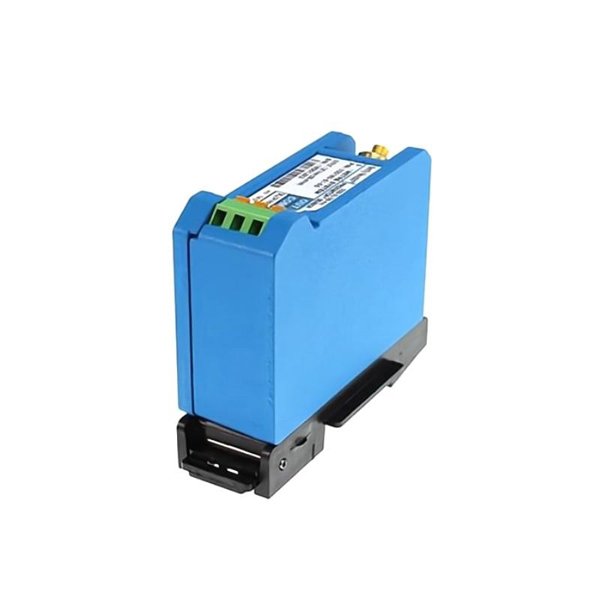

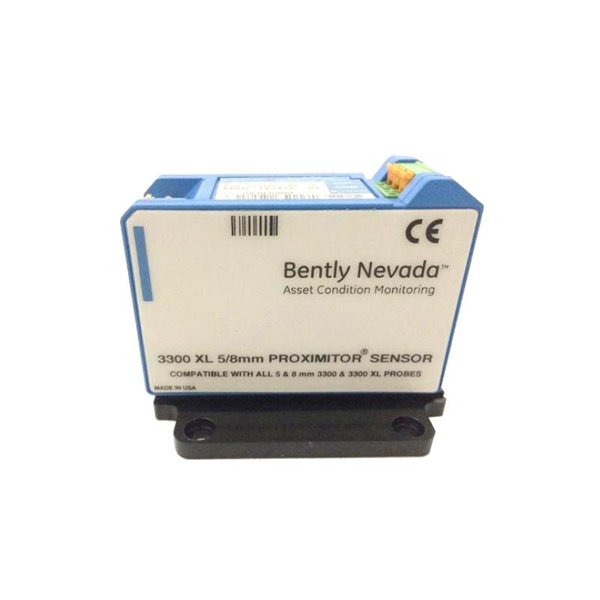

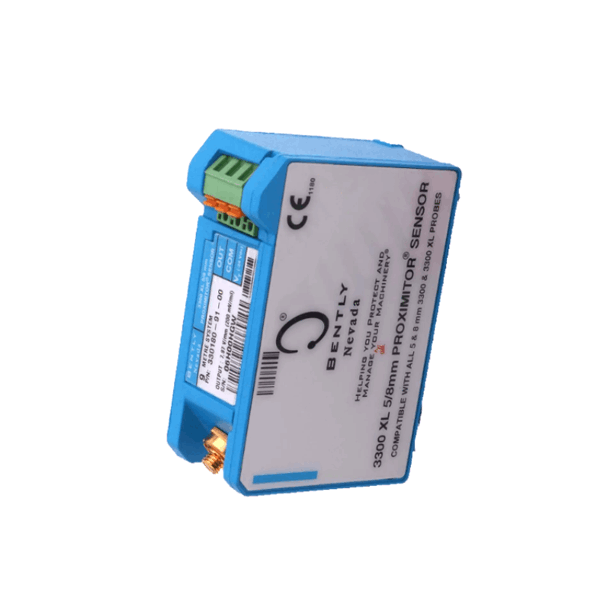

Bently Nevada 330180-X1-00 145004-128 3300 XL 8mm Proximitor Sensor

The Bently Nevada 330180-X1-00 145004-128 3300 XL 8mm Proximitor Sensor is a state-of-the-art vibration and displacement sensor designed to provide precise and reliable measurements of rotating machinery. It uses advanced eddy-current technology to detect minute displacements in machinery components, such as shafts, bearings, and other rotating equipment. This sensor is an integral part of the Bently Nevada 3300 XL series, which is widely recognized for its accuracy and durability in harsh industrial environments.

The 3300 XL 8mm Proximitor Sensor is designed for high-performance applications in industries like power generation, oil and gas, mining, manufacturing, and many others. Its compact design and rugged build ensure it can operate in extreme temperatures and under challenging environmental conditions, delivering reliable data for predictive maintenance and early fault detection.

By monitoring machinery conditions such as shaft vibration, displacement, and alignment, the 3300 XL Proximitor Sensor helps prevent unplanned downtime and costly repairs, contributing to a more efficient and reliable operation of critical equipment.

Technical Specifications

Applications

The 3300 XL 8mm Proximitor Sensor is widely used across various industries where accurate condition monitoring of rotating equipment is crucial. Some of the key applications include:

• Power Generation: Monitoring critical equipment such as turbines, generators, and motors to detect vibration, displacement, and misalignment.

• Oil & Gas: Employed in offshore platforms, refineries, and pipelines for monitoring pumps, compressors, and turbines.

• Mining: Used to monitor crushers, mills, conveyors, and other heavy machinery in mining and mineral processing plants.

• Pulp and Paper: Provides accurate measurements for equipment such as pulpers, dryers, and paper machines.

• Manufacturing: Used in motors, gearboxes, and pumps on industrial production lines to detect early signs of wear.

• Aerospace & Defense: Utilized in testing and monitoring rotating machinery for aircraft engines, rotorcraft, and military-grade machinery.

Advantages

• High Accuracy: The eddy-current technology used in this sensor ensures precise and repeatable displacement measurements.

• Durability: Built to withstand harsh industrial conditions, including high vibration levels, temperature extremes, and exposure to chemicals.

• Easy Integration: The sensor seamlessly integrates with the Bently Nevada 3300 XL monitoring system, making installation and maintenance easy.

• Compact Size: With a small form factor, the sensor can be installed in tight spaces without compromising on performance.

• Wide Operating Temperature Range: It operates effectively in environments ranging from -40°C to +85°C.

• Secure Connection: MIL-C-26482 connectors provide a secure and reliable connection for long-term use.

• Long Operational Life: Constructed with high-quality materials for long-lasting performance, reducing the need for frequent replacements.

• Low Power Consumption: The sensor consumes minimal power, making it energy efficient and ideal for continuous operation.

• Versatility: Suitable for a wide range of industries, from power plants to aerospace, providing flexibility in monitoring needs.

FAQs

1. What is the measuring range of the Bently Nevada 330180-X1-00 145004-128 Proximitor Sensor?

The measuring range is ±0.08 inches (±2.0 mm), providing precise displacement measurements for rotating machinery.

2. How does the 3300 XL Proximitor Sensor work?

It uses eddy-current technology to detect the displacement of metal objects by measuring changes in inductance.

3. What type of output signal does the sensor provide?

It provides a 4-20 mA current loop output, which is ideal for integration with monitoring and control systems.

4. What is the temperature range for the sensor’s operation?

The sensor operates within a temperature range of -40°C to +85°C, making it suitable for a variety of environments.

5. How is the sensor mounted?

The sensor is mounted directly onto the machine surface to measure displacement or vibration.

6. Is the Bently Nevada 3300 XL 8mm Proximitor Sensor compatible with other Bently Nevada products?

Yes, it is fully compatible with the Bently Nevada 3300 XL system, offering seamless integration into your monitoring network.

7. What industries use this sensor?

This sensor is used in a variety of industries, including power generation, oil & gas, mining, manufacturing, and aerospace.

8. Can the sensor be used outdoors?

Yes, as long as it is properly installed and shielded from harsh environmental factors like moisture and extreme weather.

9. What type of connectors does this sensor use?

The sensor uses MIL-C-26482 style connectors, which ensure secure and reliable connections.

10. How can I integrate the sensor into my existing monitoring system?

The 4-20 mA output signal can easily be integrated with existing monitoring equipment and control systems.
