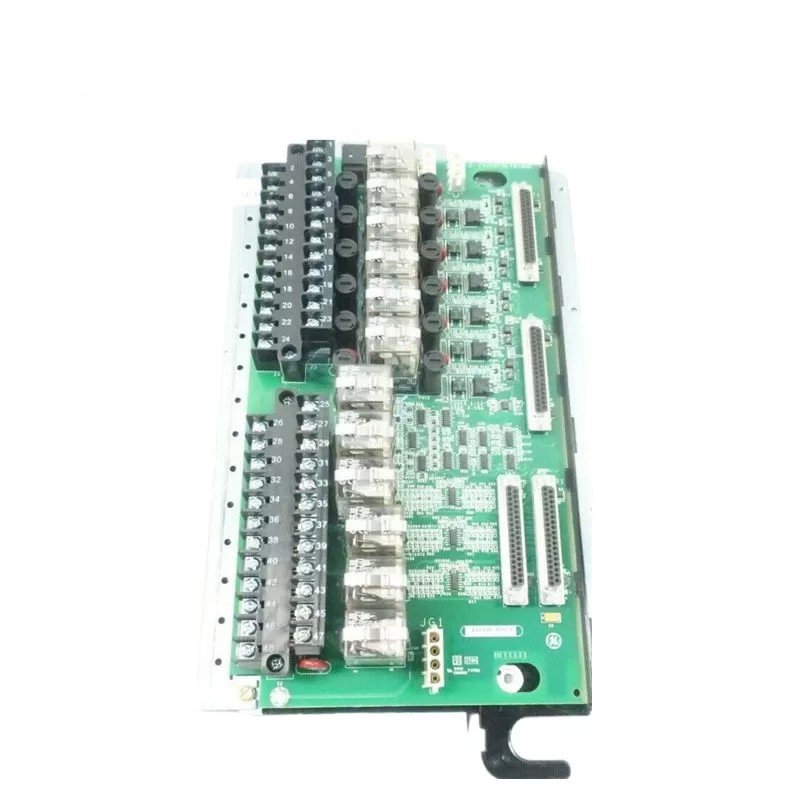

The GE IS200TRLYS1BGG is an input/output (I/O) board designed for the Mark VI control system. It specializes in diagnostic monitoring of coil currents and contributes to system safety. In specific setups with 120/240 VAC power supplies, it can offer limited power protection.

Key Features and Components

Diagnostic Functionality

The board continuously monitors coil currents. This enables early issue detection and prevents system failures.

Power Protection

Although not its primary function, the IS200TRLYS1BGG offers partial power protection when used with suitable power sources.

Robust Construction

Engineered for durability, the board includes multiple relays for signal switching. It also features reliable terminal strips and industry-standard d-shell connectors.

Component Composition

The board combines advanced integrated circuits, precision variable resistors, protective fuses, and essential passive components. These include resistors, capacitors, and diodes, ensuring optimal performance and longevity.

Applications

The GE IS200TRLYS1BGG is crucial in industrial environments. It integrates within the Mark VI control platform, offering precise coil current monitoring and partial power safeguards. This makes it versatile for various applications across multiple industries.
