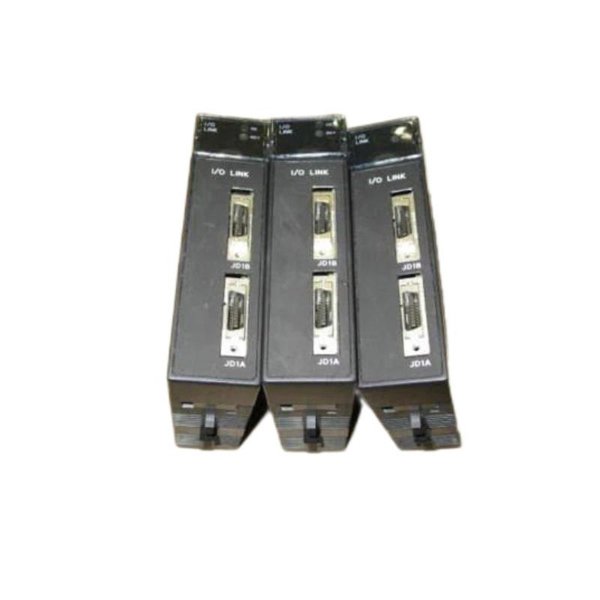

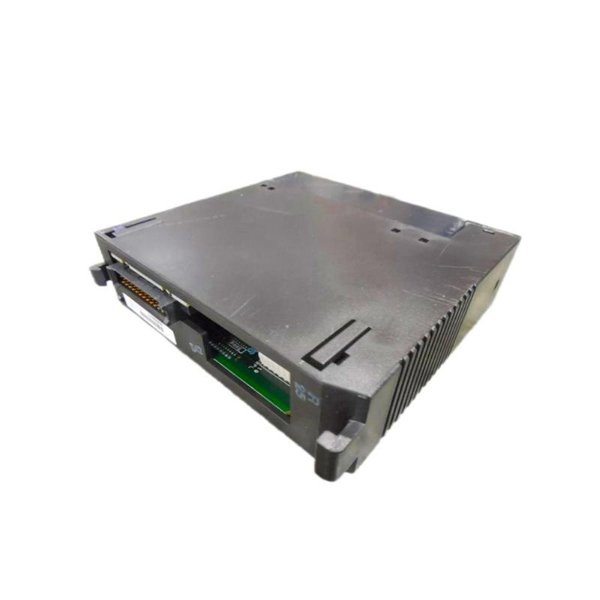

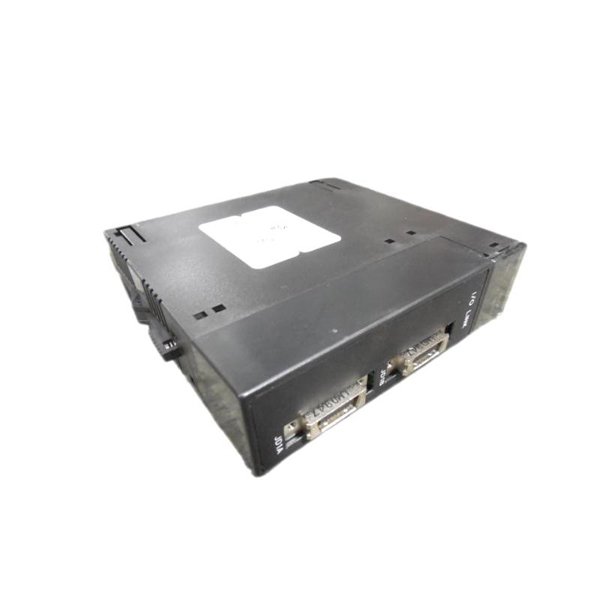

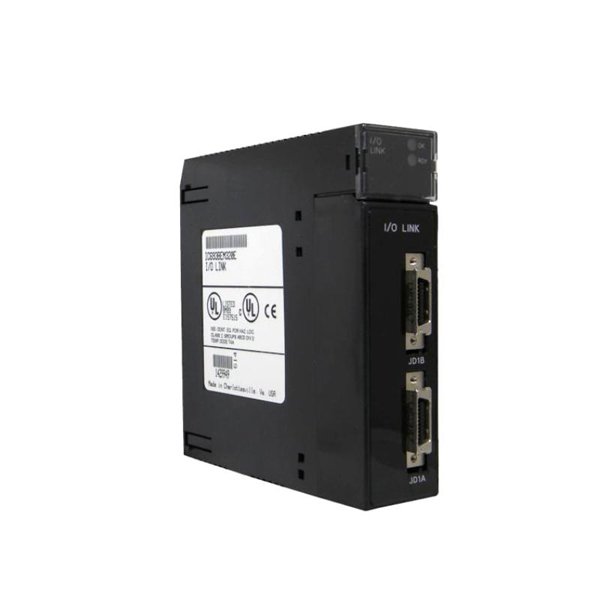

General Electric IC693BEM320 I/O Link Interface Module

The GE IC693BEM320 I/O Link Interface Module is a vital component of the GE Fanuc RX3i programmable logic controller (PLC) system, designed to provide a flexible and efficient connection between the PLC and remote I/O devices. This module acts as a communication bridge, enabling reliable data exchange and control between the central processor and distributed I/O nodes.

Engineered to support complex automation systems, the IC693BEM320 offers robust communication capabilities with high-speed data transfer and low latency. Its integration facilitates modular system expansion and improved system diagnostics. With its compact and rugged design, this module is suitable for demanding industrial environments, ensuring long-term operational stability and ease of maintenance.

Product Specifications

Product Applications

• Distributed control systems requiring remote I/O expansion

• Factory automation setups where remote sensors and actuators need centralized control

• Process industries such as chemical, oil & gas, and power generation plants

• Machine automation with modular I/O architecture

• Systems demanding high reliability in harsh industrial environments

• Applications needing real-time data exchange and diagnostics at remote nodes

• Control systems integrating diverse field devices through a standardized communication link

Product Advantages

• Flexible I/O Expansion: Supports up to 32 remote I/O nodes, enabling extensive system scalability.

• Reliable Communication: Employs the I/O Link protocol with optical isolation, ensuring data integrity and protection against electrical noise.

• Compact Design: Saves valuable cabinet space while maintaining full functionality.

• Easy Integration: Seamlessly integrates with the RX3i PLC platform for streamlined system architecture.

• High-Speed Data Transfer: Supports data rates up to 38.4 Kbps for fast response times.

• Robust Build Quality: Designed to withstand industrial temperature ranges and electrical disturbances.

• Simplified Maintenance: Diagnostics and status indicators aid in quick troubleshooting and system monitoring.

• Standards Compliant: Meets international safety and quality standards, ensuring dependable operation worldwide.

Frequently Asked Questions (FAQ)

1. What is the maximum number of remote I/O nodes supported by the IC693BEM320?

   The module supports up to 32 remote I/O nodes.

2. What communication protocol does this module use?

   It uses the I/O Link communication protocol.

3. What is the data transfer rate of the IC693BEM320?

   The module supports data transfer rates up to 38.4 Kbps.

4. Is the module electrically isolated?

   Yes, optical isolation is provided for the communication lines.

5. What are the physical dimensions and weight of the module?

   64 x 127 x 102 mm, weighing 0.29 kg.

6. What is the operating temperature range of the IC693BEM320?

   The operating range is from -20°C to +70°C.

7. What power supply voltage does the module require?

   It is powered by 5 V DC from the RX3i backplane.

8. Can the IC693BEM320 be used with other GE PLC series?

   It is specifically designed for the RX3i series.

9. Does the module provide diagnostic indicators?

   Yes, it includes status LEDs for communication and module health monitoring.

10. What certifications does the IC693BEM320 have?

    It carries CE and UL recognitions.
