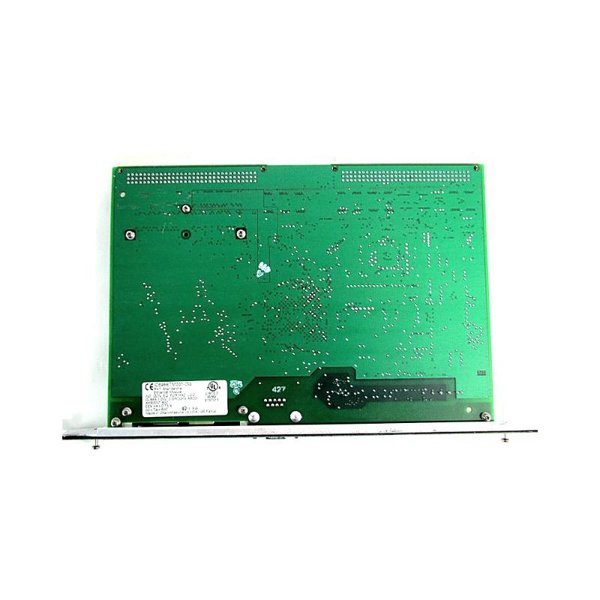

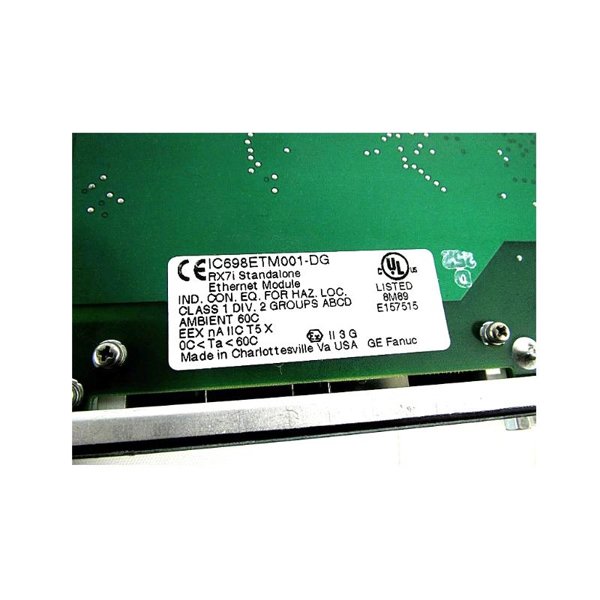

General Electric IC698ETM001-DG Ethernet Interface Module

The GE IC698ETM001-DG Ethernet Interface Module is designed to facilitate high-performance communication between programmable logic controllers (PLCs) and other networked devices. This Ethernet module is part of the GE Series 90-30 family and supports communication via Ethernet to achieve seamless data transfer, real-time control, and monitoring over long distances. This module provides an essential interface for industrial applications requiring robust, scalable, and reliable Ethernet communication.

This module enables data transmission over the standard Ethernet networks, providing flexible integration with diverse industrial devices and control systems. Whether used in manufacturing, process control, or other automated environments, it offers superior connectivity to meet modern industrial demands.

Product Specifications

Here are the key technical specifications for the GE IC698ETM001-DG Ethernet Interface Module:

Product Applications

The IC698ETM001-DG Ethernet Interface Module is widely utilized in industrial automation systems. Some common applications include:

1. Industrial Control Systems: It facilitates communication between controllers and networked devices, ensuring reliable control and monitoring.
2. Manufacturing Automation: Helps in integrating production machines, sensors, and PLCs for real-time data sharing and control.
3. Process Control: Used in applications like temperature control, pressure monitoring, and machine diagnostics in industries such as chemical processing and oil & gas.
4. Building Automation: Provides connectivity for building management systems, including HVAC, lighting, and security systems.
5. Remote Monitoring and Diagnostics: Supports remote access and diagnostics of industrial systems, improving maintenance and troubleshooting.

Product Advantages

The GE IC698ETM001-DG Ethernet Interface Module offers several advantages, making it an excellent choice for modern industrial automation needs:

1. Fast Data Transfer: With 10/100 Mbps Ethernet speeds, it ensures quick and reliable data transfer over the network.
2. Scalability: It easily integrates with a wide range of devices and control systems, supporting various industrial protocols.
3. High Compatibility: Compatible with GE Series 90-30 PLCs and other industrial automation systems, ensuring seamless integration.
4. Compact Design: The module’s compact size helps optimize space in control cabinets and panel installations.
5. Real-Time Monitoring: It provides real-time data transfer for better monitoring and control over industrial processes.
6. Robust Build Quality: Built to endure tough industrial environments with resistance to temperature variations and environmental conditions.
7. Reduced Downtime: Enables fast communication for quick troubleshooting and minimal downtime in production or processing environments.
8. Cost-Effective: It provides a cost-efficient solution for Ethernet-based communication without compromising on performance.

Frequently Asked Questions (FAQ)

1. What is the GE IC698ETM001-DG Ethernet Interface Module?

   • The GE IC698ETM001-DG Ethernet Interface Module is an Ethernet communication module designed for use with GE’s Series 90-30 PLCs. It enables high-speed data transfer and seamless integration of PLCs into Ethernet-based industrial networks.

2. What communication protocols are supported by the IC698ETM001-DG?

   • The IC698ETM001-DG supports both TCP/IP and UDP protocols, allowing for reliable, real-time communication between industrial automation systems over Ethernet networks.

3. What are the key features of the IC698ETM001-DG module?

   • Key features include a 10/100 Mbps Ethernet port, real-time data transfer, LED status indicators (Power, Status, Network), and compatibility with GE’s Series 90-30 PLCs, making it ideal for industrial automation applications.

4. How does the IC698ETM001-DG module integrate into an industrial network?

   • The module connects to the industrial Ethernet network via its 10/100 Mbps Ethernet port. It enables communication between the PLC and other devices on the network, supporting data exchange and remote monitoring.

5. What is the maximum operating temperature for the IC698ETM001-DG?

   • The module operates effectively within a temperature range of 0°C to 60°C, making it suitable for most industrial environments where temperature fluctuations are common.

6. How is the IC698ETM001-DG powered?

   • The module operates with a 5V DC power supply, which is typically provided by the Series 90-30 PLC or an external source compatible with its specifications.

7. Can the IC698ETM001-DG be used for remote diagnostics and monitoring?

   • Yes, the IC698ETM001-DG is designed to enable remote diagnostics and monitoring via Ethernet. This capability allows maintenance personnel to troubleshoot and monitor systems from a distance, improving operational efficiency.

8. Is the IC698ETM001-DG module compatible with all PLC systems?

   • The IC698ETM001-DG is specifically designed for use with the GE Series 90-30 PLC. It is not directly compatible with other PLC systems without additional configuration or modules.

9. What types of applications can benefit from using the IC698ETM001-DG Ethernet module?

   • This module is ideal for applications such as industrial automation, manufacturing control systems, process control, building automation, and remote monitoring, where reliable Ethernet communication is required for real-time data exchange and control.

10. How do I configure the IC698ETM001-DG module?

• Configuration of the IC698ETM001-DG module is done through GE’s PLC programming software (Proficy Machine Edition or similar tools), where network settings such as IP addresses, communication parameters, and connection settings are defined to integrate the module into the control system.
