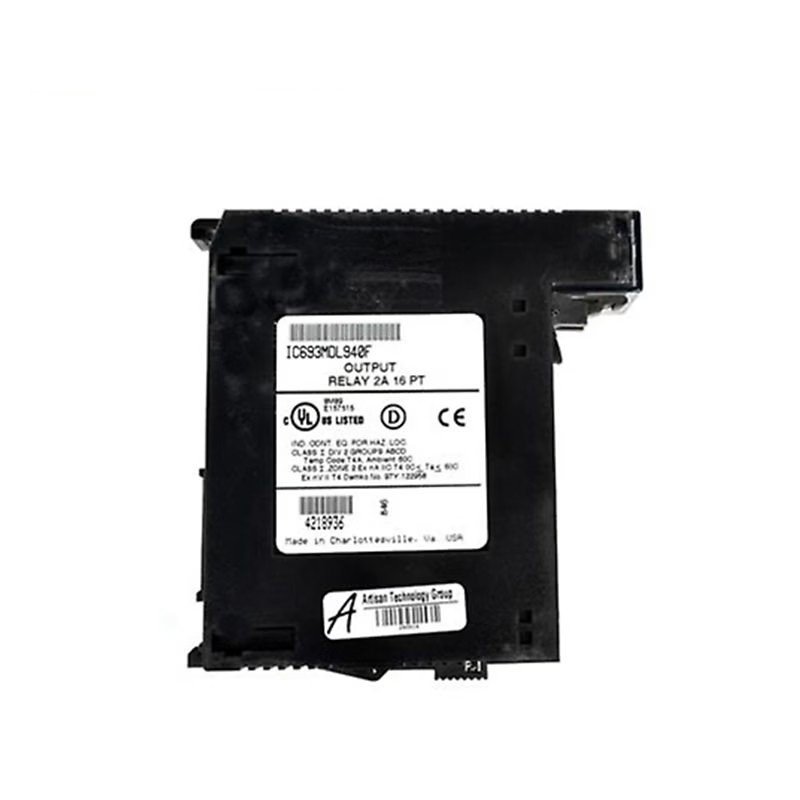

GE Fanuc IC693MDL940F Relay Output Module

The GE Fanuc IC693MDL940F is a 16-point relay output module designed for use with GE Fanuc’s Series 90-30 PLC systems. This module is engineered to control various industrial output devices, including motor starters, solenoids, and indicators. It simplifies wiring, enhances reliability, and provides clear status indicators, making it suitable for a wide range of industrial applications such as manufacturing, material handling, and process control.

Technical Specifications

• Part Number: IC693MDL940F
• Manufacturer: GE Fanuc
• Product Type: 16-Point Relay Output Module

Electrical Specifications:

• Rated Voltage: 24 VDC, 120/240 VAC
• Operating Voltage: 5 to 30 VDC, 5 to 250 VAC, 50/60 Hz
• Maximum Load: 2 amps per output (pilot duty), 4 amps per common, 16 amps per module
• Minimum Load: 10 mA
• Maximum Inrush: 5 amps
• Power Consumption:
  • 7 mA (from 5V bus on backplane, all outputs on)
  • 135 mA (from relay 24V bus on backplane, all outputs on)

Response Times:

• On Response Time: Maximum 15 ms
• Off Response Time: Maximum 15 ms

Isolation:

• Field Side to Logic Side: 1500 V
• Between Groups: 500 V

Mechanical Specifications:

• Number of Outputs: 16
• Output Type: Negative logic (sinking type)
• LED Indicators: Green LEDs for each output, indicating ON/OFF status
• Field Wiring Information: Provided on the insert between the inner and outer surfaces of the hinged door
• High Voltage Module: Red color-coding for easy identification of high-voltage components

Operating Conditions:

• Operating Temperature: 0°C to 60°C
• Humidity: 5% to 95% relative humidity, non-condensing
