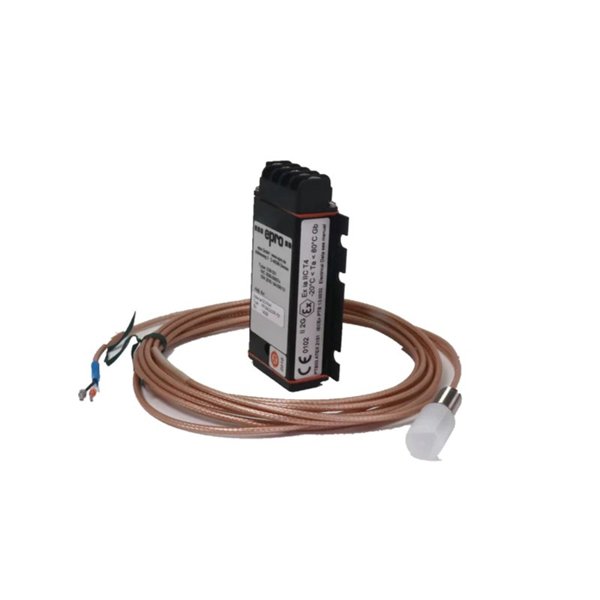

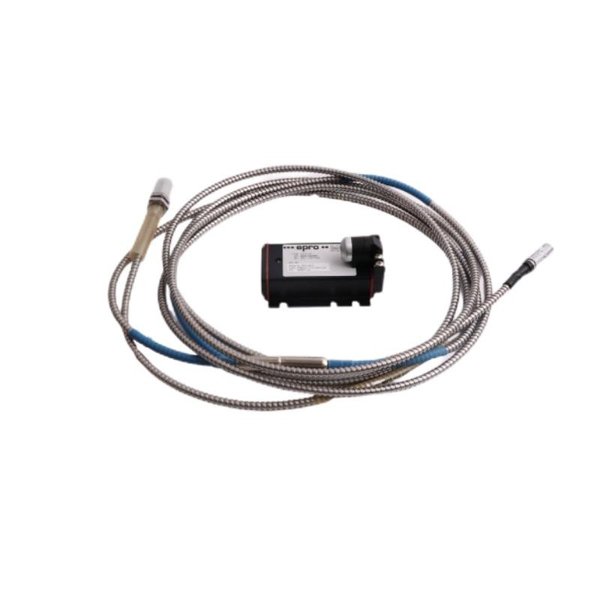

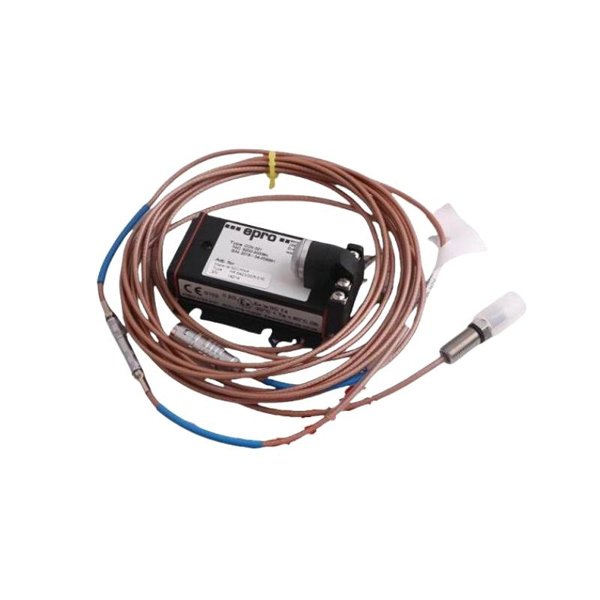

Epro PR6424/102-000 16mm Eddy Current Sensor

The Epro PR6424/102-000 is a 16mm Eddy Current Sensor designed to provide high-precision measurement in industrial environments. This sensor uses eddy current technology, which allows for non-contact displacement and position measurements. The PR6424/102-000 sensor is particularly suitable for applications in machinery monitoring, precision measurement, and vibration analysis where minimal contact or mechanical wear is required. The sensor provides excellent accuracy even in environments with high electromagnetic interference and vibrations, making it highly reliable for industrial operations.

The PR6424/102-000 sensor is ideal for use in sectors like aerospace, automotive manufacturing, energy production, and high-speed machinery monitoring, where precision and real-time feedback are crucial. It excels in applications where traditional contact-based measurement methods are impractical due to the environment or the need for continuous monitoring.

Product Specifications

Product Applications

The Epro PR6424/102-000 16mm Eddy Current Sensor is used in numerous applications requiring non-contact position and displacement measurement. Here are some primary areas where this sensor excels:

1. Rotating Machinery Monitoring

   The sensor is commonly employed in the monitoring of rotating equipment such as motors, turbines, and pumps, providing real-time feedback on vibration, displacement, and position shifts.

2. Automotive Production Lines

   In the automotive industry, it ensures the precise positioning of components during assembly. It is particularly useful for quality control and automated inspection of engine parts, suspension systems, and other critical components.

3. Aerospace Applications

   The sensor is also deployed in aerospace systems to monitor actuators, rotating shafts, and other sensitive parts that require high precision and low mechanical contact.

4. Turbine and Generator Monitoring

   Energy sector applications utilize this sensor to monitor the vibration, position, and displacement of turbines, generators, and other rotating equipment. It ensures that machinery operates within specified tolerances, avoiding mechanical failures.

5. Precision Positioning Systems

   The PR6424/102-000 is integral to robotic systems, micromachining, and semiconductor manufacturing, where precise, real-time measurements of component positions are crucial for production accuracy.

6. Industrial Equipment Monitoring

   This sensor also serves in a variety of industrial machinery applications, including vibration analysis and position measurement in automated systems where high-speed and accurate feedback is essential.

Product Advantages

• Non-Contact Measurement

  The Epro PR6424/102-000 uses eddy current technology for non-contact measurement, which minimizes wear and tear and extends the sensor’s lifespan, making it suitable for high-speed or heavy-duty machinery.

• High Precision

  The sensor offers an accuracy of ±0.1% of full scale, making it highly precise and capable of detecting even the smallest changes in displacement or position.

• Fast Response Time

  With a response time of less than 1 ms, the PR6424/102-000 provides real-time measurement updates, allowing operators to make immediate adjustments or corrections in critical applications.

• Robust and Durable

  Rated at IP67, this sensor is designed to withstand harsh environments, providing protection against dust, water, and other contaminants. It ensures reliable performance in industrial conditions, including high vibration and temperature extremes.

• Wide Temperature Range

  The PR6424/102-000 can operate across a temperature range of -20°C to +70°C, making it suitable for use in extreme conditions, whether in cold or high-temperature environments.

• Easy Integration and Mounting

  The sensor offers threaded or flange mounting options, allowing for flexible installation in various systems. It can be easily integrated into existing machinery or industrial setups.

FAQ

1. What is the sensing technology used by the Epro PR6424/102-000 sensor?

   The Epro PR6424/102-000 uses eddy current technology for non-contact displacement and position measurement.

2. What is the diameter of the sensing head?

   The sensing head diameter is 16 mm.

3. What is the typical measuring range for this sensor?

   The typical measuring range is 0-10 mm.

4. What type of output does the sensor provide?

   The sensor provides an analog output (voltage or current).

5. What is the accuracy of the sensor?

   The accuracy of the sensor is ±0.1% of full scale.

6. What is the response time of the Epro PR6424/102-000?

   The response time is less than 1 ms, ensuring rapid data feedback.

7. What supply voltage is required for this sensor?

   The sensor requires a 24 V DC supply voltage.

8. What is the temperature range of the Epro PR6424/102-000 sensor?

   The sensor operates within a temperature range of -20°C to +70°C.

9. Is the Epro PR6424/102-000 sensor resistant to environmental factors?

   Yes, the sensor has an IP67 rating, making it dust-tight and water-resistant.

10. What types of mounting options are available for this sensor?

    The sensor supports threaded and flange mounting options, providing flexibility for installation in various systems.
