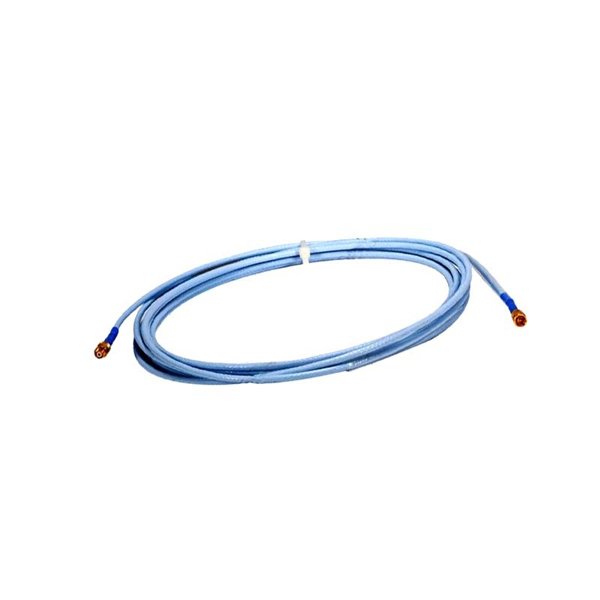

Bently Nevada 330730-080-01-CN 3300 XL 11mm Extension Cable

The Bently Nevada 330730-080-01-CN is a high-performance extension cable designed for the 3300 XL 11 mm Proximity Transducer System. This cable serves as a critical link between the proximity probe and the Proximitor sensor, ensuring accurate transmission of vibration and position signals in industrial machinery monitoring applications.

Manufactured in the USA, the 330730-080-01-CN features an 8.0-meter (26.2 feet) length and armored construction, providing enhanced durability in harsh environments. Its design adheres to stringent industrial standards, making it suitable for use in various sectors, including power generation, oil and gas, and manufacturing.

Product Specifications

Applications

• Axial (Thrust) Position Measurements: Monitoring axial displacement in rotating machinery.

• Differential Expansion Measurements: Assessing thermal expansion in steam turbines.

• Rod Position or Rod Drop Measurements: Evaluating piston rod position in reciprocating compressors.

• Tachometer and Zero Speed Measurements: Detecting rotational speed and zero-speed conditions.

• Phase Reference (Keyphasor) Signals: Providing reference signals for vibration analysis.

Advantages

• Enhanced Durability: Armored construction with stainless steel and FEP jacket ensures resistance to mechanical damage and environmental factors.

• High-Temperature Operation: Capable of functioning in extreme temperatures ranging from -51°C to +177°C.

• Reliable Signal Transmission: Maintains signal integrity over long distances with low capacitance.

• Secure Connections: ClickLoc connectors provide secure, vibration-resistant connections.

• Compatibility: Designed to seamlessly integrate with the 3300 XL 11 mm Proximity Transducer System.

Frequently Asked Questions (FAQ)

1. What is the primary function of the 330730-080-01-CN extension cable?

   It connects the proximity probe to the Proximitor sensor, transmitting vibration and position signals accurately.

2. Is this cable compatible with other Bently Nevada systems?

   It is specifically designed for the 3300 XL 11 mm Proximity Transducer System.

3. What does the ‘080’ in the part number signify?

   It indicates the cable length of 8.0 meters (26.2 feet).

4. What type of environments is this cable suitable for?

   Its armored construction makes it suitable for harsh industrial environments with high temperatures and potential mechanical hazards.

5. Can this cable be used in hazardous areas?

   Yes, it has country-specific approvals, making it suitable for use in hazardous locations.

6. What is the significance of the ClickLoc connectors?

   They ensure a secure, vibration-resistant connection between components.

7. What is the typical capacitance of this cable?

   69.9 pF/m (21.3 pF/ft).

8. What is the recommended gap setting for this system?

   2.5 mm (100 mils).

9. What is the weight of the cable?

   0.36 kg.

10. Where is this cable manufactured?

    It is manufactured in the United States.
