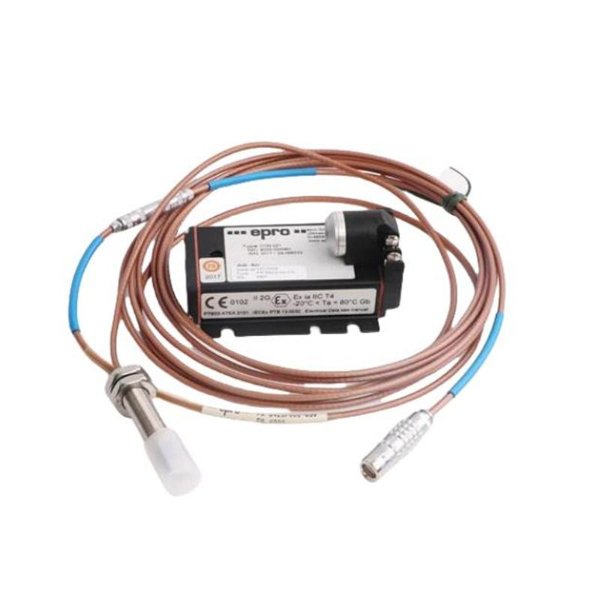

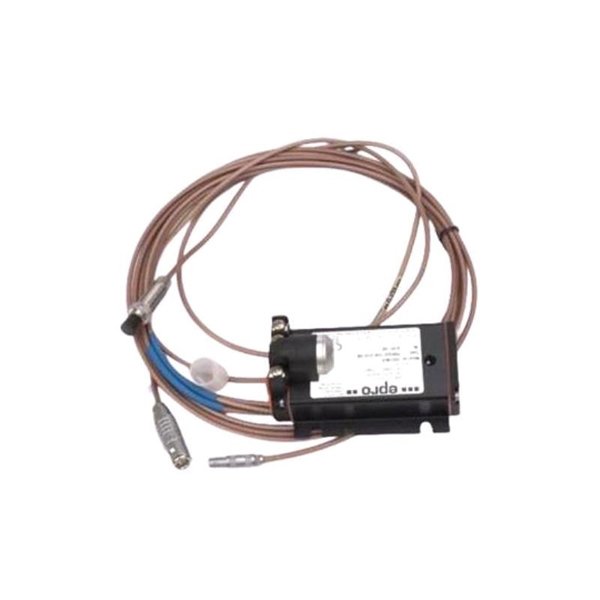

Epro PR6426/010-140 32mm Eddy Current Sensor

The Epro PR6426/010-140 is a precision eddy current displacement sensor featuring a sensor head diameter of 32 mm. Designed for high-accuracy non-contact measurement, it uses eddy current technology to detect the distance between the sensor and a conductive target surface.

This sensor is widely utilized in industrial and research applications where precise monitoring of shaft position, vibration, and displacement is critical. The PR6426/010-140 model offers robust performance, excellent linearity, and stability, making it suitable for harsh environments and demanding operational conditions.

Technical Specifications

Product Advantages

• Non-Contact Measurement

  Eddy current technology allows for accurate displacement measurement without physical contact, preventing wear and mechanical interference.

• Compact Sensor Head

  The 32 mm diameter sensor head enables installation in tight or confined spaces.

• High Precision and Linearity

  Provides accurate and linear output signals for reliable process control and monitoring.

• Robust and Durable Design

  Suitable for industrial environments, resistant to dust, moisture, and vibration.

• Wide Operating Temperature Range

  Maintains stable operation across a broad temperature spectrum, ensuring reliability in diverse conditions.

• Fast Response Time

  Ideal for dynamic measurements such as vibration monitoring and rotating machinery diagnostics.

• Versatile Output Options

  Compatible with various control and data acquisition systems through standard analog outputs.

Applications

The PR6426/010-140 eddy current sensor serves numerous critical industrial applications:

• Rotating Machinery Monitoring

  Used for shaft position, vibration, and displacement measurement in turbines, motors, and generators.

• Condition Monitoring

  Helps detect early signs of mechanical wear or failure through precise displacement tracking.

• Process Control Automation

  Integrates with PLCs and control systems for real-time position feedback.

• Quality Control in Manufacturing

  Measures small displacements for precise alignment and tolerance verification.

• Research and Development

  Used in laboratories for detailed analysis of mechanical movement and material properties.

• Hydraulic and Pneumatic Systems

  Monitors piston position and displacement in fluid power systems.

FAQs

1. What is the diameter of the sensor head?

   The sensor head diameter is 32 mm.

2. What types of output signals are available?

   Analog voltage or current outputs are standard options.

3. What is the typical measurement range?

   The sensor usually measures up to about 1 mm, depending on the setup.

4. Can this sensor be used in harsh industrial environments?

   Yes, it features a robust design with IP65 or higher protection ratings.

5. What is the weight of the sensor?

   The sensor weighs approximately 0.2 kg.

6. What power supply voltage is required?

   Typically, 10 to 30 V DC is required to power the sensor.

7. Is the sensor suitable for vibration monitoring?

   Yes, it has a fast response time suitable for dynamic measurements.

8. How does the sensor detect displacement without contact?

   It uses eddy current principles to sense changes in magnetic fields near conductive surfaces.

9. Are custom cable lengths available?

   Yes, cable lengths can be customized according to application needs.

10. What maintenance is required for this sensor?

    Minimal maintenance is needed due to its non-contact nature; periodic cleaning may be required in dusty environments.
