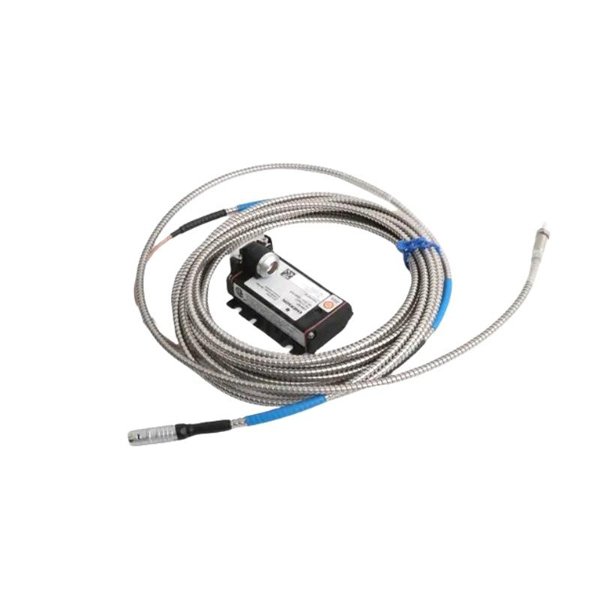

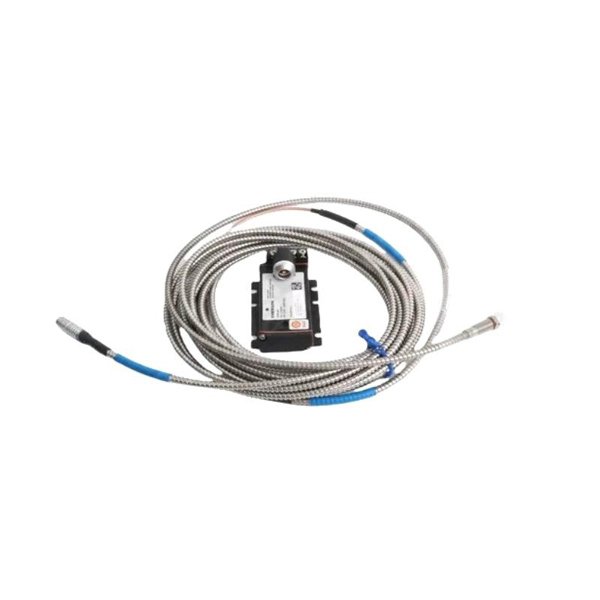

Epro PR6424/010-110+CON021 16mm Eddy Current Sensor

The Epro PR6424/010-110+CON021 is a high-precision, non-contact eddy current proximity sensor system designed for the measurement of shaft displacement, vibration, and axial position in rotating machinery. Developed by Epro, a reputable brand under the Emerson Process Management umbrella, this sensor is widely used in critical industrial applications where reliable condition monitoring is crucial. It comes equipped with the CON021 converter, forming a complete probe-converter pair that ensures accurate signal processing and output.

This model features an 16mm tip diameter, making it ideal for use in environments with medium-sized shaft diameters, typically found in turbines, compressors, pumps, and other dynamic equipment. It offers rugged construction, high vibration resistance, and excellent immunity to harsh environmental factors such as oil, dust, and temperature fluctuations.

Product Specifications

Product Applications

The Epro PR6424/010-110+CON021 is widely used in the following industrial environments:

• Steam and Gas Turbines: Monitoring shaft vibration and axial position.

• Centrifugal Compressors: Condition monitoring of shaft movement and clearance.

• Pumps and Motors: Ensuring alignment and operational stability.

• Gearboxes: Detecting wear-induced vibrations and shaft displacements.

• Paper Mills and Steel Plants: Real-time monitoring of high-speed rotating elements.

• Petrochemical Plants: Preventive diagnostics for rotating machinery.

Its robust construction and precision make it an integral part of machine protection systems in hazardous zones and high-vibration areas.

Product Advantages

• High Reliability in Harsh Environments: IP68 rating and wide temperature tolerance ensure functionality in oil, water, and dusty conditions.

• Excellent Measurement Precision: Ideal for monitoring micrometer-level displacements in high-speed rotating shafts.

• Integrated System Compatibility: Seamlessly integrates with Epro and Emerson MMS systems for centralized monitoring.

• Durable Design: Stainless steel housing resists corrosion and mechanical wear.

• Non-contact Measurement: Eliminates mechanical wear and reduces maintenance.

• Flexible Cable Configuration: Various cable lengths and mounting options available to suit diverse applications.

• ATEX Certified Versions Available: For use in hazardous areas (consult product variation).

• Long Service Life: Industrial-grade components extend operational lifespan.

• Backed by Global Support: Full technical and aftermarket support from Emerson’s service network.

Frequently Asked Questions (FAQ)

1. What is the main function of the PR6424/010-110+CON021 sensor?

   It measures non-contact shaft displacement and vibration in rotating machinery for condition monitoring and protection purposes.

2. Can this sensor operate in high-temperature environments?

   Yes, the probe can withstand temperatures up to 180°C and the CON021 converter up to 120°C.

3. What is the maximum cable length supported?

   Standard configurations support cable lengths up to 9 meters, depending on application and signal requirements.

4. Is the sensor suitable for use in explosive environments?

   Select versions of the sensor are ATEX certified. Please verify specific model certifications before use.

5. What systems is this sensor compatible with?

   It is compatible with EPRO MMS6000/MMS3000 series and Emerson VM600 monitoring systems.

6. How does the sensor output signal work?

   It provides a linear voltage output that corresponds to the distance of the target metal surface from the probe tip.

7. What is the recommended installation distance?

   Typically, the gap between the probe and the shaft should be calibrated for a mid-range voltage output, often around 1 mm.

8. What is the protection rating of the sensor?

   The probe has an IP68 protection rating, making it suitable for submerged and dusty environments.

9. What materials is the sensor made from?

   The probe housing is made from stainless steel to ensure corrosion resistance and durability.

10. Is it necessary to recalibrate the sensor periodically?

    While it is highly stable, periodic calibration is recommended as part of routine maintenance practices.
