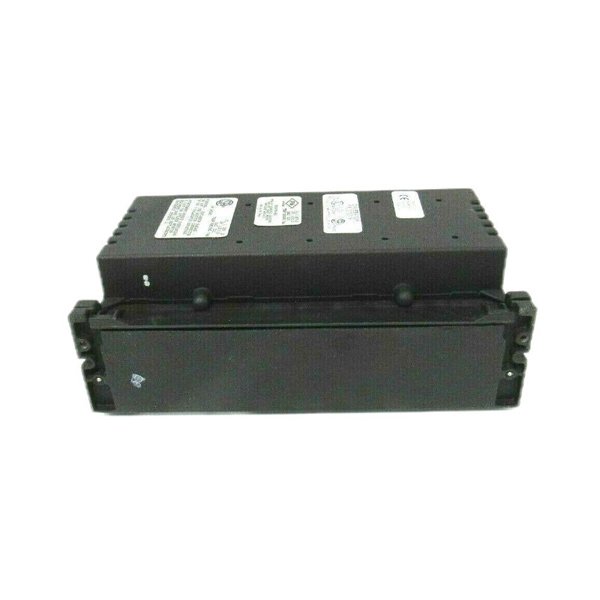

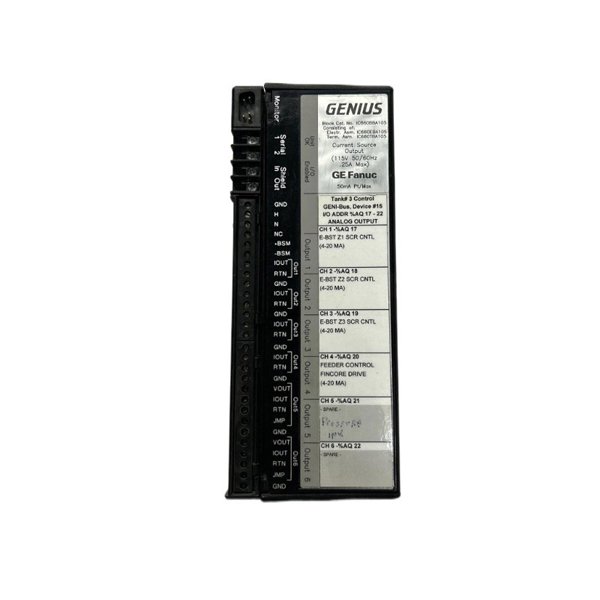

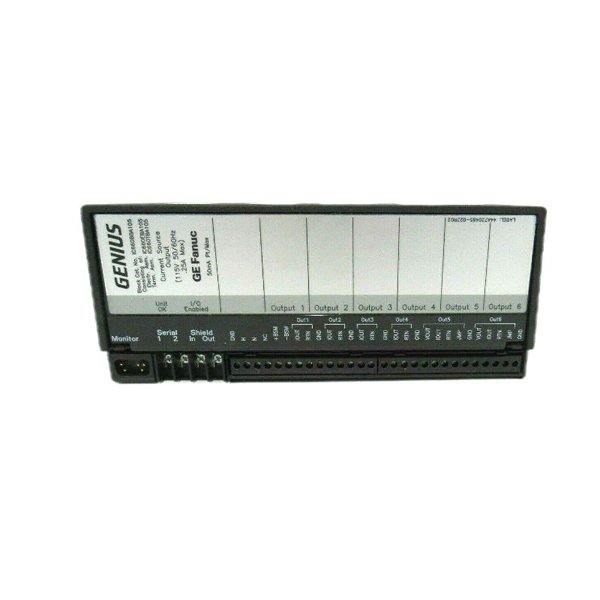

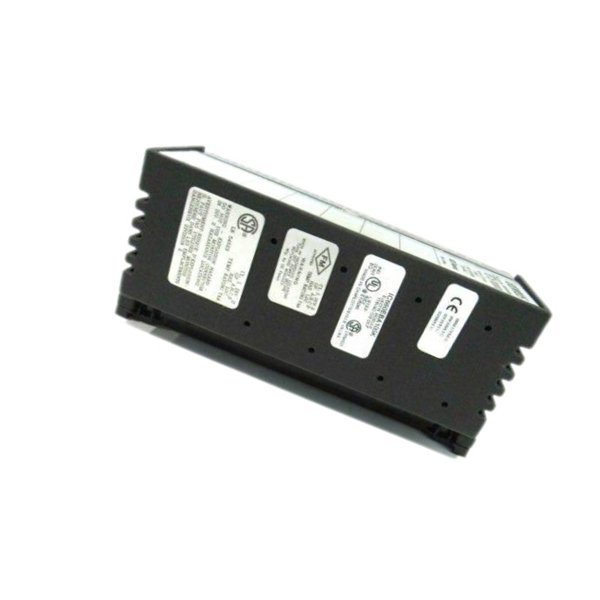

GE Fanu IC660EBA105 I/O Block Electronics

The GE Fanuc IC660EBA105 is an I/O Block Electronics Assembly designed specifically for Genius I/O systems. It functions as the intelligent electronics core of a modular I/O block, enabling seamless integration of field I/O into the Genius network. This unit is used in conjunction with compatible terminal bases and cover assemblies to complete the block, and it provides communication, configuration, diagnostics, and control functionalities.

It supports both discrete and analog I/O depending on the terminal base configuration and is capable of operating in a variety of industrial environments. The IC660EBA105 is a robust, intelligent module that enhances flexibility, scalability, and reliability in distributed control applications.

Key Features

• Supports discrete or analog I/O depending on base compatibility

• Integral Genius Bus interface for fast communication

• Built-in configuration and diagnostic memory

• Automatic block identification and error reporting

• Rugged industrial-grade design with high immunity to noise

• Compatible with handheld monitors and configuration software

• LED indicators for block status and communication monitoring

• Wide operating temperature and power range

Technical Specifications

Industry Applications

• Manufacturing Automation: Facilitates decentralized control in large production systems.

• Energy and Utilities: Suitable for SCADA and substation control.

• Material Handling Systems: Manages sensors and actuators in distributed conveyor setups.

• Process Industries: Supports mixed I/O configurations in chemical and pharmaceutical plants.

• Transportation Systems: Used in railway automation and traffic control systems.

• OEM Machinery Integration: Provides a programmable interface for third-party equipment.

Product Advantages

• Modular Architecture: Electronics block can be reused across multiple I/O types simply by changing the terminal base.

• Simplified Maintenance: Electronics can be replaced independently of wiring terminals.

• Configurable Versatility: One part number supports various I/O configurations.

• Built-in Fault Detection: Immediate detection of wiring or signal faults minimizes downtime.

• Reliable Communications: Native Genius Bus interface ensures high-speed, deterministic I/O exchange.

• Field Proven Durability: Designed for demanding industrial environments, including vibration and electrical noise.

Frequently Asked Questions (FAQ)

1. What does the IC660EBA105 consist of?

   It includes the electronics portion of a Genius I/O block; a base and cover are required for full function.

2. Can this module support analog or discrete I/O?

   Yes, it depends on the terminal base it is paired with.

3. Does it store configuration data?

   Yes, the module retains configuration in non-volatile memory.

4. Is it hot-swappable?

   The electronics module can be replaced without rewiring the base, though power should be off for safety.

5. How is it configured?

   Via GE handheld monitors or Genius configuration software.

6. What is the communication protocol?

   It uses Genius I/O bus protocol for real-time I/O data exchange.

7. Are LED indicators included?

   Yes, for communication status, I/O health, and block diagnostics.

8. What environmental conditions can it withstand?

   Operates from 0°C to 60°C, with high tolerance for humidity and vibration.

9. Is isolation provided?

   Yes, it includes optical isolation between logic and field circuits.

10. What kind of certifications does it have?

    UL, CSA, and CE approvals; compliant with hazardous area standards when fully assembled.
