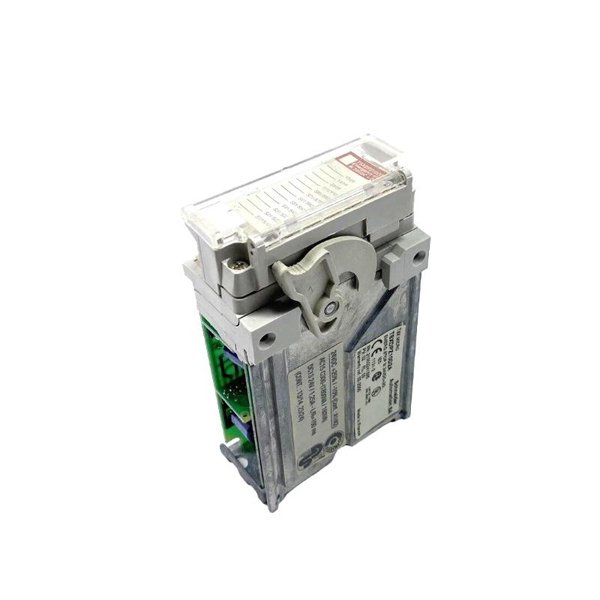

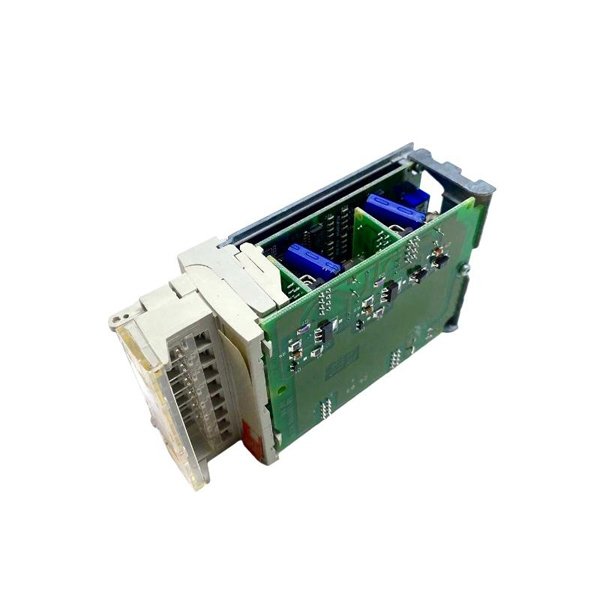

Schneider TSXDPZ10D2A Emergency Stop Monitoring Module

The Schneider TSXDPZ10D2A is a dedicated Emergency Stop Monitoring Module designed to enhance safety and control in industrial automation systems. It functions as a critical safety device to monitor emergency stop signals, ensuring immediate and reliable system shutdown during emergency conditions. This module is part of Schneider Electric’s extensive range of programmable logic controllers (PLC) accessories, offering robust performance, easy integration, and high reliability.

Designed to work seamlessly within Schneider’s Modicon Quantum and Premium automation platforms, the TSXDPZ10D2A module supports stringent safety standards and industrial requirements. It is widely used in applications demanding quick emergency response and failsafe operation to protect personnel and equipment.

Product Parameters

Product Applications

• Industrial Automation Safety: Used in automated manufacturing plants to ensure immediate halting of processes when emergency stop is activated.

• Machine Safety Systems: Integrated into machinery for emergency shutdown, reducing risk of accidents.

• Process Control Plants: Provides monitored emergency stop feedback for critical process control.

• Material Handling Equipment: Enhances safety by monitoring emergency stops on conveyor systems, lifts, and cranes.

• Packaging Lines: Ensures operator safety by rapid response to emergency stop signals.

• Robotics and Assembly Lines: Guarantees failsafe stopping in robotics cells and assembly operations.

Product Advantages

• High Reliability: Designed with robust components to ensure fault-tolerant, reliable emergency stop monitoring.

• Quick Response Time: Provides fast reaction to emergency stop activation, enhancing overall plant safety.

• Easy Integration: Compatible with Schneider’s Modicon PLC systems for streamlined installation and configuration.

• Compact Design: Small footprint saves panel space while maintaining full functionality.

• Certified Safety Standards: Meets industry safety certifications and can be configured to SIL 3, providing assurance in safety-critical applications.

• Diagnostic Features: Built-in diagnostics for easy troubleshooting and maintenance.

• Wide Operating Range: Functions reliably across a broad range of temperature and humidity conditions.

• DIN Rail Mounting: Simplifies panel installation and replacement.

• Reduced Downtime: Enhances system availability by providing prompt emergency stop feedback.

• Scalability: Suitable for both small and large-scale automation projects.

Frequently Asked Questions (FAQ)

1. Q: What voltage does the TSXDPZ10D2A module require?

   A: The module operates on 24 V DC with a tolerance of ±10%.

2. Q: Can this module be used with all Schneider PLCs?

   A: It is primarily designed for use with Schneider’s Modicon Quantum and Premium series PLCs.

3. Q: What is the response time of the emergency stop signal?

   A: Typically, the response time is under 20 milliseconds, ensuring rapid system shutdown.

4. Q: Is the module compliant with any safety integrity levels?

   A: Yes, when properly configured, it supports SIL 3 safety integrity level compliance.

5. Q: What are the physical dimensions of this module?

   A: The module measures 125 x 32 x 100 mm.

6. Q: How is the module installed?

   A: It is mounted easily on a standard DIN rail inside the control panel.

7. Q: Does the module provide any diagnostic capabilities?

   A: Yes, it offers built-in diagnostics to assist with maintenance and fault detection.

8. Q: Can it handle harsh industrial environments?

   A: Yes, it operates effectively between 0°C and 55°C and within 5% to 95% relative humidity (non-condensing).

9. Q: What type of outputs does it provide?

   A: The module outputs safety relay contacts that can be used for emergency stop control.

10. Q: Is this module suitable for retrofitting existing systems?

    A: Yes, due to its compact design and DIN rail mounting, it can be integrated into existing panels with minimal modifications.
