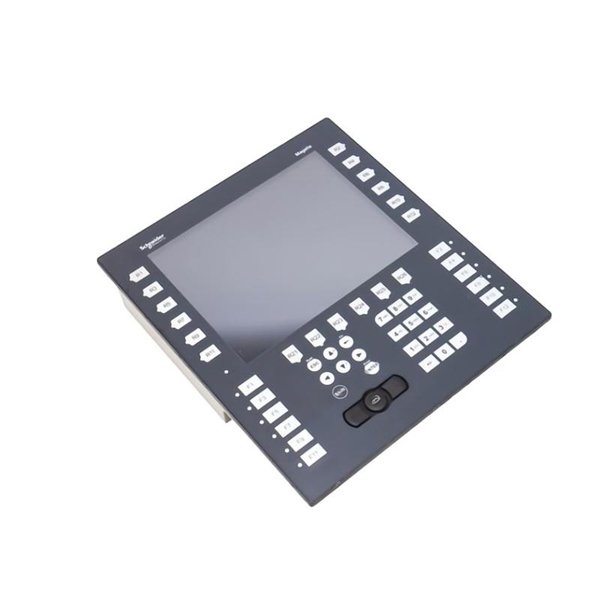

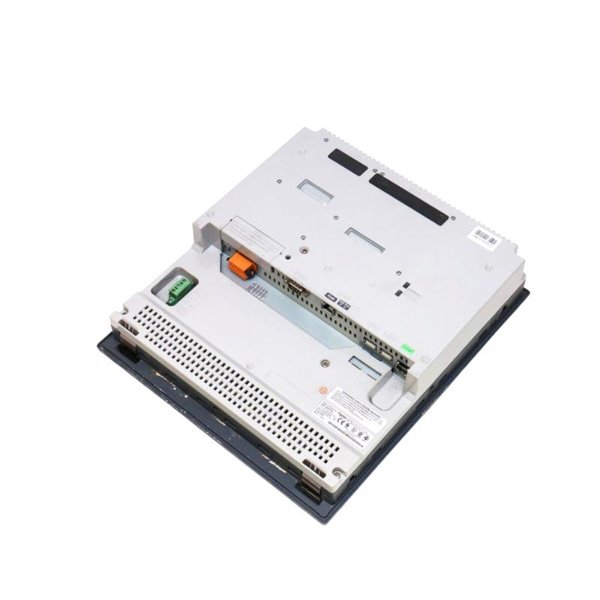

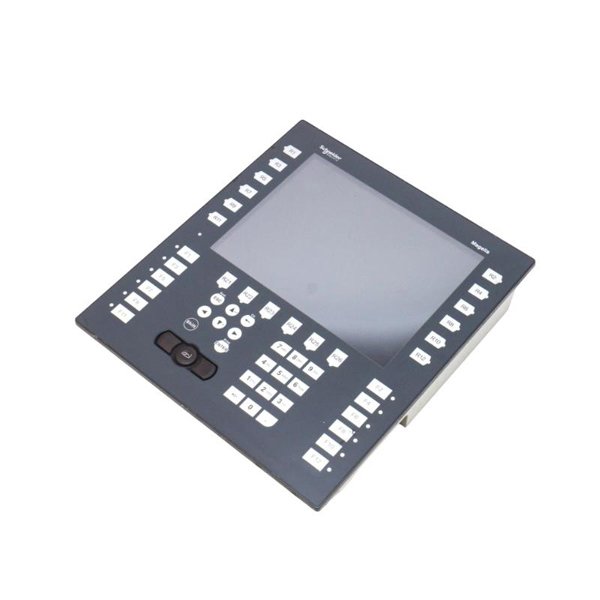

Schneider XBTGK5330 Advanced Touchscreen Panel With Keyboard

The Schneider XBTGK5330 is an advanced touchscreen panel that combines intuitive control with a physical keyboard for enhanced user interaction. Designed for industrial automation applications, this robust HMI (Human-Machine Interface) system offers a sleek, modern interface that allows operators to interact with machinery and systems in real-time.

With a user-friendly touch interface and the addition of a physical keyboard, the XBTGK5330 provides versatile control options. This makes it ideal for complex automation systems, where both touch and text-based input may be required for efficient operation. Schneider Electric’s emphasis on reliability, durability, and ease of use ensures that the XBTGK5330 is a top choice for many industrial applications.

Product Specifications

Applications

The Schneider XBTGK5330 Advanced Touchscreen Panel With Keyboard is designed for a wide range of industrial and commercial applications where user interaction with control systems is essential. Some key areas of use include:

• Industrial Automation Systems: It enables operators to control and monitor automated machinery and processes with both touch and keyboard input.

• Machine Control: In environments where precise control is needed, such as CNC machines or manufacturing equipment, this HMI allows for flexible input methods.

• Process Control Systems: Ideal for industries like oil and gas, chemical, and water treatment where operators need real-time data input and output control.

• Building Management Systems (BMS): Used to manage energy-efficient systems such as HVAC, lighting, and security from a centralized interface.

• Packaging and Manufacturing: Operators in packaging lines or complex manufacturing environments can use both the touchscreen and keyboard for quick data entry and operation.

Advantages

1. Dual Input Method: The combination of a touchscreen interface and a physical keyboard provides flexibility and efficiency in user input, catering to both touch and text-based control needs.

2. Durable Design: Made with high-quality polycarbonate and ABS materials, the XBTGK5330 is built to withstand the demanding conditions of industrial environments.

3. High-Resolution Display: The 640 x 480 pixel resolution offers clear visuals, ensuring operators can read and interact with data easily.

4. Wide Operating Temperature Range: Operating from -10°C to +60°C, it can perform in both cold and hot industrial environments.

5. Easy Installation: The XBTGK5330 is designed for simple integration into Schneider Electric’s Magelis XBT series systems, reducing setup time.

6. Enhanced Productivity: The physical keyboard allows for efficient data entry and rapid operation, speeding up workflow in environments requiring frequent text-based inputs.

7. Compact and Space-Saving: Its compact size allows for easy placement in various industrial environments, even where space is limited.

8. Versatile Usage: Perfect for both standalone and networked operations, allowing for customization based on the needs of the system or application.

9. Long-Term Reliability: Built for continuous operation, ensuring minimal downtime and long-term service life in tough environments.

10. User-Friendly Interface: The touch-sensitive screen offers a responsive interface, while the keyboard provides tactile feedback for precise control.

Frequently Asked Questions (FAQ)

1. What is the screen size of the Schneider XBTGK5330?

   The XBTGK5330 features a 10.4 inches screen, which offers an excellent balance between clarity and compactness.

2. What is the resolution of the XBTGK5330 touchscreen?

   The screen resolution is 640 x 480 pixels, providing clear visuals for monitoring and controlling industrial processes.

3. Does the XBTGK5330 come with a physical keyboard?

   Yes, the XBTGK5330 includes an integrated physical keyboard with alphanumeric and function keys for versatile input.

4. What type of touch technology is used in the XBTGK5330?

   The XBTGK5330 uses analog resistive touch technology, allowing for precise input with a finger or stylus.

5. Can the XBTGK5330 operate in extreme temperatures?

   The operating temperature range is from -10°C to +60°C, making it suitable for most industrial environments.

6. Is the XBTGK5330 compatible with other Schneider Electric systems?

   Yes, the XBTGK5330 is compatible with Schneider Electric’s Magelis XBT series systems and can also be used in custom applications.

7. How much does the XBTGK5330 weigh?

   The unit weighs 2.4 kg, making it easy to install and handle.

8. What materials is the XBTGK5330 made of?

   The touchscreen panel is constructed from polycarbonate and ABS, ensuring durability and resistance to industrial conditions.

9. Is the XBTGK5330 suitable for use in hazardous environments?

   While the XBTGK5330 is durable and robust, it is not specifically rated for hazardous or explosive environments. Additional protection may be needed.

10. Can I use both the touchscreen and the keyboard simultaneously?

    Yes, the touchscreen and keyboard can be used together, offering flexibility for operators to switch between touch and text-based input as needed.
