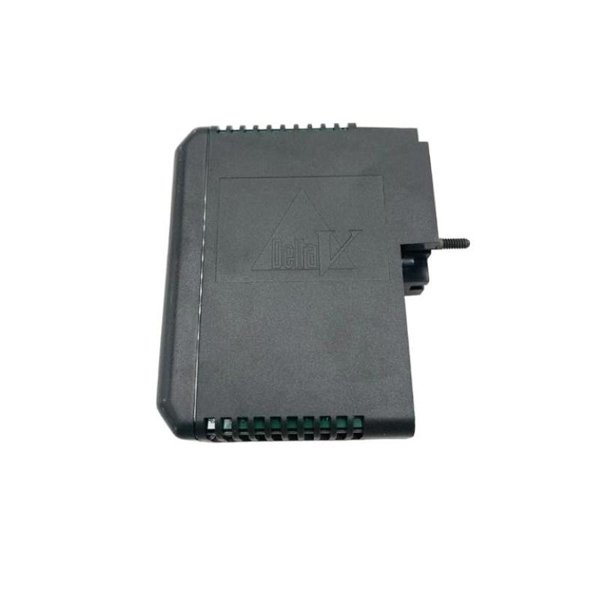

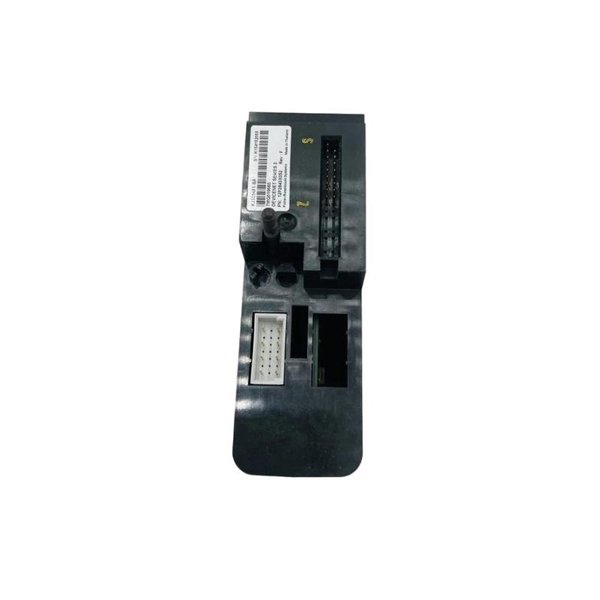

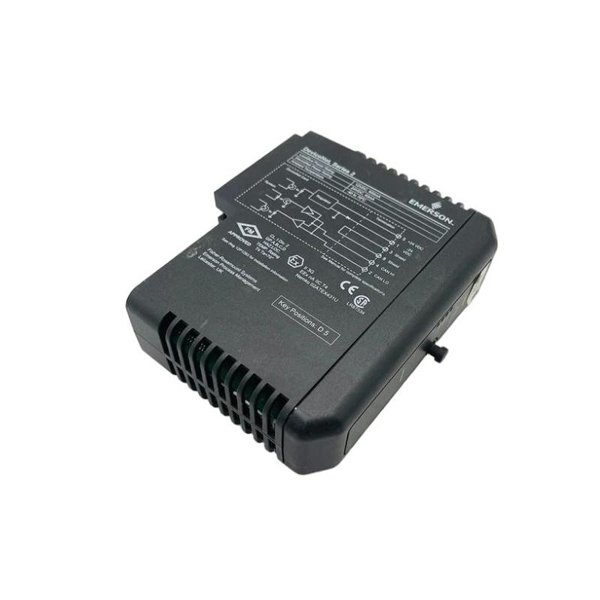

Emerson KJ3244X1-BA1 DeltaV DeviceNet Card

The Emerson KJ3244X1‑BA1 is a Series 2 DeviceNet Interface Card for Emerson’s DeltaV™ Traditional I/O system. It enables integration between DeviceNet field devices and the DeltaV control platform, supporting robust and secure bi‑directional communication. Certified for hazardous-area deployment, this card is ideal for process automation systems requiring reliable network connectivity and flexible I/O integration.

Key Features

• DeviceNet communication over the DeltaV S-series I/O architecture

• Series 2 module for DeltaV Traditional I/O expansion

• Integrates DeviceNet bus devices directly into the control system

• Keyed terminal blocks prevent mis‑connection with I/O target cards

• Certified for hazardous area installation (Zone 2/Div 2)

• Plug‑in module: removal/insertion only with field power removed

• Maintenance‑free: no calibration or user‑serviceable parts

Technical Specifications

Industry Applications

• Integrating DeviceNet-enabled field devices (sensors, drives, valves) into DeltaV DCS

• Process control in oil & gas, chemical, power generation, and utilities

• Hazardous-area remote I/O setups where intrinsic safety is required

• Applications requiring standard DeviceNet bus topology with DeltaV systems

• Compact installations where space-efficient communication modules are needed

Product Advantages

• Seamlessly connects DeviceNet devices to the DeltaV system without extra field controllers

• Hazardous-area certified, allowing installation in Zone 2/Div 2 environments

• Rotary keying prevents incorrect card-to-terminal block alignments

• Rugged design tolerates industrial vibration, shock, and humidity extremes

• Hot-swappable design (when safely powered down) minimizes downtime

• Field power drawn only from DeviceNet bus improves installation simplicity

Frequently Asked Questions (FAQ)

1. What is the power draw of this DeviceNet card?

   Local bus draws 12 VDC @ 600 mA; DeviceNet power uses 24 VDC @ 40 mA.

2. What temperature range is specified?

   Operates reliably from –40 °C to +70 °C.

3. Can the card be replaced while powered?

   No. Removal/insertion is only allowed after field power is removed.

4. Does the module require calibration?

   No. It contains no user-serviceable parts and requires no calibration.

5. Is the module certified for hazardous locations?

   Yes—ATEX Zone 2 Ex ec IIC Gc and FM Class I Div 2 A–D.

6. What protection against vibration and shock does it offer?

   Rated for 1 mm p‑p vibration and 10 g shock per specification.

7. What alignment mechanism prevents mis‑installation?

   Terminal key position D5 ensures correct pairing.

8. What are typical uses for this card?

   Connecting DeviceNet field devices—such as drives, sensors, and actuators—to DeltaV systems.

9. What is the module weight and size?

   Approx. 0.8 kg; size roughly 160 × 160 × 120 mm.

10. What system does the card operate with?

    Emerson DeltaV Traditional I/O rack (S-series modules).
