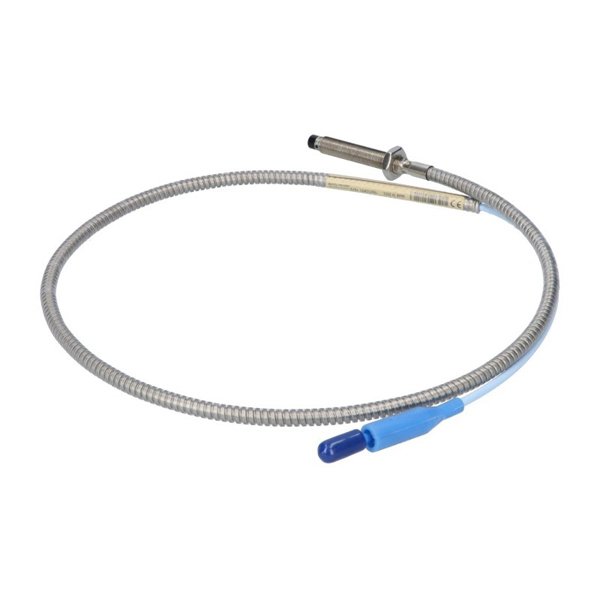

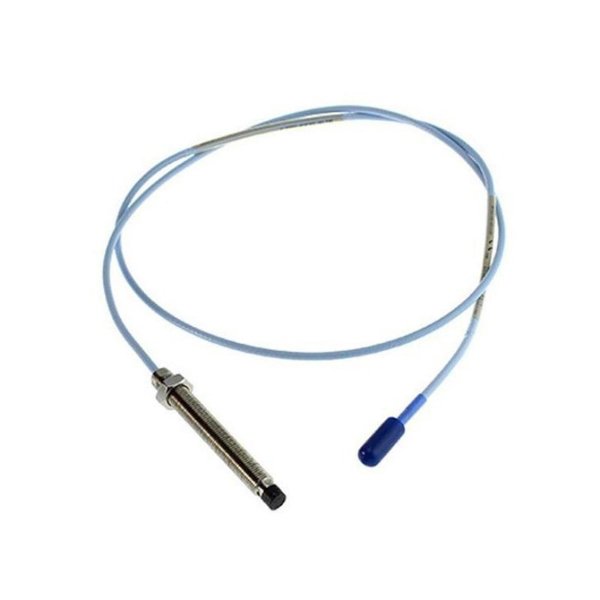

Bently Nevada 330104-00-15-10-01-05 3300 XL 8 mm Proximity Probe

The Bently Nevada 330104-00-15-10-01-05 is part of the 3300 XL 8 mm Proximity Transducer System, designed for non-contact vibration and position measurement in rotating machinery. This specific probe features M10x1 thread, armor protection, a 1.5-meter length, and uses a standard coaxial ClickLoc connector.

Product Features

• Fully compliant with API 670 standards

• Interchangeable with non-XL 3300 series components

• High resistance to EMI/RFI

• Ruggedized with TipLoc and CableLoc construction

• Finger-tight ClickLoc connectors with corrosion resistance

• Compatible with harsh environments and high-density installations

Applications

• Shaft vibration monitoring

• Radial and axial position measurement

• Keyphasor reference signal generation

• Overspeed detection

• Machinery protection in turbines, compressors, motors, and pumps

Advantages

• High Accuracy: ±0.025 mm DSL with 5-meter systems

• Long Lifespan: Durable mechanical and electrical design

• Simplified Maintenance: Component interchangeability eliminates calibration requirements

• Environmental Resilience: Withstands wide temperature and pressure ranges

• Low Installation Cost: No need for special shielding due to advanced EMI immunity

Technical Specifications

FAQs

Q1: What is the primary use of the 330104-00-15-10-01-05 probe?

A1: It is used for precise vibration and position measurement in rotating machinery.

Q2: Is this probe compatible with older Bently Nevada 3300 systems?

A2: Yes, it is backward compatible and interchangeable with non-XL 3300 8 mm and 5 mm systems.

Q3: What connector type does this model use?

A3: It uses a miniature coaxial ClickLoc connector with standard cable.

Q4: Can it be used in high-temperature applications?

A4: Yes, the standard version supports up to 177°C; the ETR version supports up to 218°C.

Q5: Does it meet API 670 standards?

A5: Yes, fully compliant for mechanical configuration and performance.

Q6: What makes the probe robust against vibration damage?

A6: The patented TipLoc and CableLoc designs enhance its mechanical durability.

Q7: What shaft size is recommended for radial measurement?

A7: A minimum of 76.2 mm (3 in) shaft diameter is recommended.

Q8: Is calibration needed when replacing components?

A8: No, components are fully interchangeable without requiring bench calibration.

Q9: What is the effect of humidity on probe accuracy?

A9: Less than 3% change in average scale factor in 93% humidity (IEC 68-2-3 standard).

Q10: What is the maximum thread engagement length?

A10: For M10x1 threads, the maximum is 15 mm.
