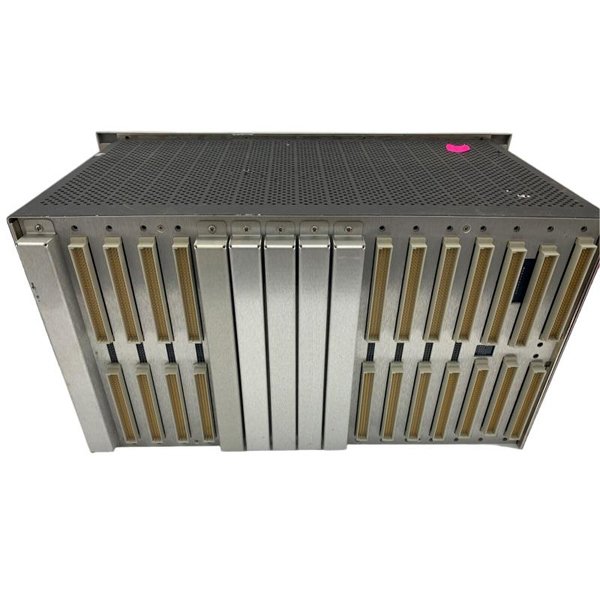

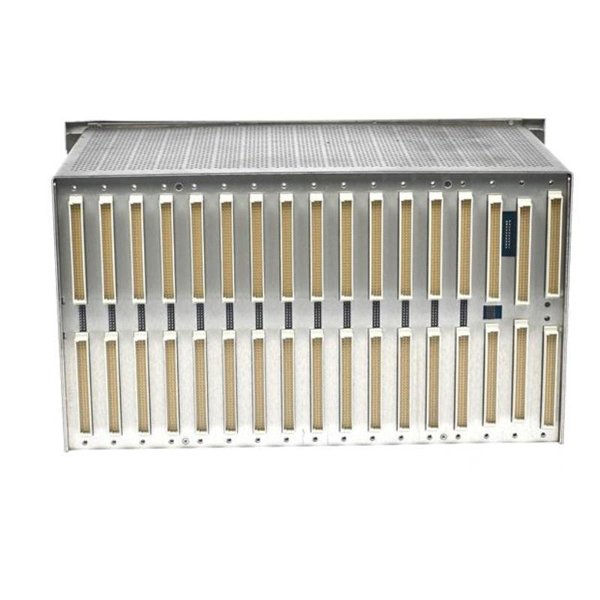

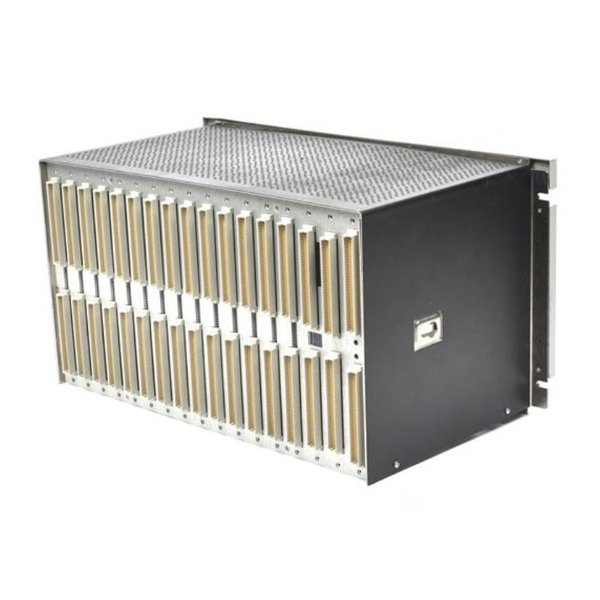

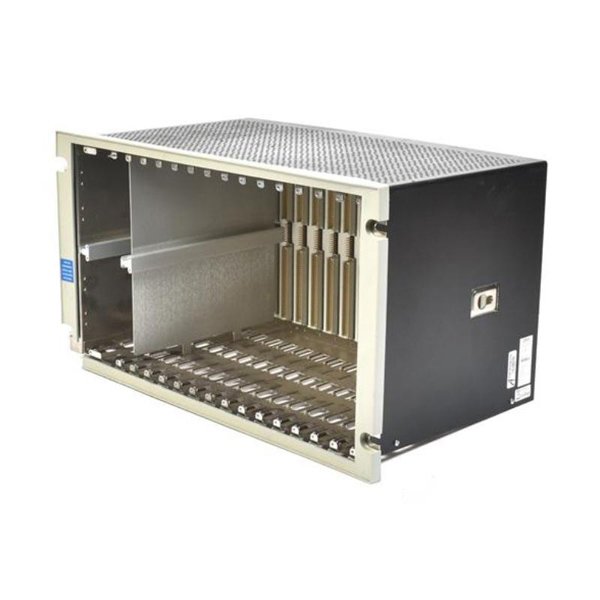

Bently Nevada 3500/05-01-03-00-00-01 3500/05 System Rack

The Bently Nevada 3500/05-01-03-00-00-01 is a high-performance Monitoring Relay Module designed for industrial machinery protection and condition monitoring. It is part of the renowned Bently Nevada 3500 Series, widely used in critical applications across industries like oil & gas, power generation, and manufacturing. This module ensures reliable monitoring of vibration, temperature, and other parameters to prevent equipment failure and optimize operational efficiency.

Product Parameters

Product Applications

The 3500/05-01-03-00-00-01 is ideal for:

• Industrial Machinery Protection: Monitors vibration, temperature, and speed to prevent catastrophic failures.

• Power Plants: Ensures turbine and generator health for uninterrupted operation.

• Oil & Gas: Protects compressors, pumps, and pipelines from excessive wear.

• Manufacturing: Provides real-time alerts for rotating equipment in production lines.

• Water Treatment: Monitors pumps and motors to avoid downtime.

Product Advantages

1. High Reliability: Designed for 24/7 operation in harsh environments.

2. Flexible Configuration: Supports multiple sensor inputs (accelerometers, proximity probes, etc.).

3. Robust Communication: RS-485 and Modbus enable seamless integration with control systems.

4. Compact Design: Space-saving form factor for easy panel mounting.

5. Certified Safety: Complies with ATEX, IECEx, and UL standards for hazardous areas.

6. Easy Maintenance: Modular design allows quick replacement without system shutdown.

Frequently Asked Questions (FAQ)

1. What is the purpose of the 3500/05-01-03-00-00-01 module?

   It is a monitoring relay module for machinery protection, providing alarm and shutdown signals based on sensor inputs.

2. What types of sensors are compatible?

   It works with vibration sensors (proximity probes, accelerometers), temperature sensors (RTDs, thermocouples), and tachometers.

3. How many relay outputs does it have?

   It includes 4 Form C (SPDT) relay outputs for alarms or shutdown signals.

4. Is it suitable for hazardous areas?

   Yes, it is ATEX and IECEx certified for use in explosive atmospheres.

5. What communication protocols are supported?

   RS-485 with Modbus RTU protocol for integration with SCADA/DCS systems.

6. What is the operating voltage range?

   24V DC (standard), with tolerance up to ±10%.

7. Can it be used in high-temperature environments?

   Yes, it operates reliably from -20°C to +70°C.

8. How is the module mounted?

   It is designed for DIN rail or panel mounting.

9. Is the module field-configurable?

   Yes, settings can be adjusted via software or handheld configurator.

10. What is the warranty period?

    Typically 12 months, depending on the supplier and region.
