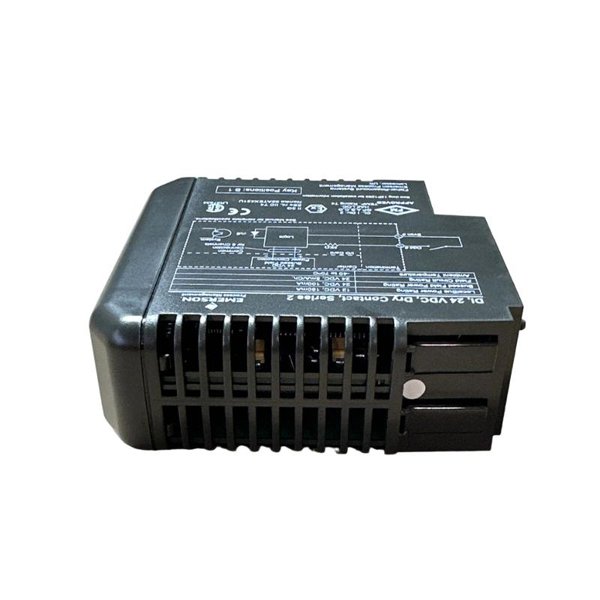

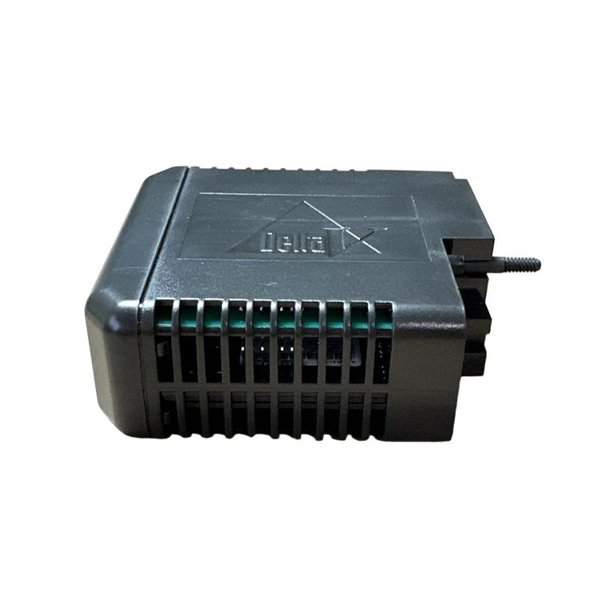

Emerson VE4001S2B1 Discrete Input Card

The Emerson VE4001S2B1 Discrete Input Card is an advanced I/O module designed for high-reliability control systems used in process automation and industrial environments. This discrete input card interfaces with a wide variety of on/off field devices such as limit switches, push buttons, and status contacts, providing precise digital signal acquisition for distributed control systems (DCS). Built for continuous operation in harsh conditions, it offers fast response times, secure isolation, and seamless integration into Emerson’s DeltaV™ and Ovation™ platforms. The rugged design ensures dependable performance in applications that demand uncompromising reliability and long service life.

Product Parameters

Applications

• Process Automation – Monitors valve limit switches, pump start/stop signals, and safety interlocks in chemical and petrochemical plants.

• Power Generation – Captures critical status inputs in turbine control, boiler management, and auxiliary systems.

• Oil & Gas – Interfaces with remote sensors for pipeline monitoring, drilling rigs, and production platforms.

• Water & Wastewater – Tracks pump station alarms, gate valve positions, and treatment plant equipment status.

• Manufacturing – Provides reliable on/off detection for conveyors, packaging lines, and robotic systems.

• Building Automation – Integrates with HVAC, lighting, and fire-safety systems for centralized digital monitoring.

Advantages

• High Channel Density – Sixteen isolated inputs reduce cabinet space requirements.

• Fast Signal Processing – Sub-5 ms response supports real-time control and critical safety functions.

• Robust Isolation – 1500 V RMS channel-to-bus isolation prevents ground loops and electrical interference.

• Redundant Communication – Dual DeltaV™ I/O bus connections ensure continuous data integrity.

• Wide Environmental Tolerance – Operates from –20 °C to +60 °C, suitable for demanding field conditions.

• Low Power Design – Consumes only 6 W, optimizing energy efficiency and thermal management.

• Easy Maintenance – Hot-swappable design allows replacement without system shutdown.

FAQ

1. What type of signals can each channel accept?

   Each input channel can handle dry contact closures or 18–32 VDC voltage signals, providing flexibility for various field devices.

2. How many discrete inputs are available on one card?

   The VE4001S2B1 provides 16 fully isolated channels, each independently configurable.

3. What is the typical response time for signal detection?

   The module detects input changes in under 5 milliseconds, enabling rapid control actions.

4. Does the card support redundant communication?

   Yes, it uses a redundant DeltaV™ I/O bus to maintain communication even if one path fails.

5. What level of channel isolation is provided?

   Each channel offers 1500 V RMS isolation to protect against electrical noise and ground potential differences.

6. Can the card be replaced during operation?

   Yes, it supports hot-swapping, allowing maintenance without shutting down the system.

7. What is the maximum power consumption?

   The module consumes up to 6 W at full load, ensuring efficient operation.

8. Is the card certified for hazardous areas?

   It is certified for ATEX Zone 2 and meets CE, UL, and CSA standards for industrial environments.

9. What operating temperature range is supported?

   The card operates reliably from –20 °C to +60 °C and can be stored down to –40 °C.

10. Which control systems are compatible with this module?

    It integrates seamlessly with Emerson DeltaV™ and Ovation™ control systems for distributed automation.
