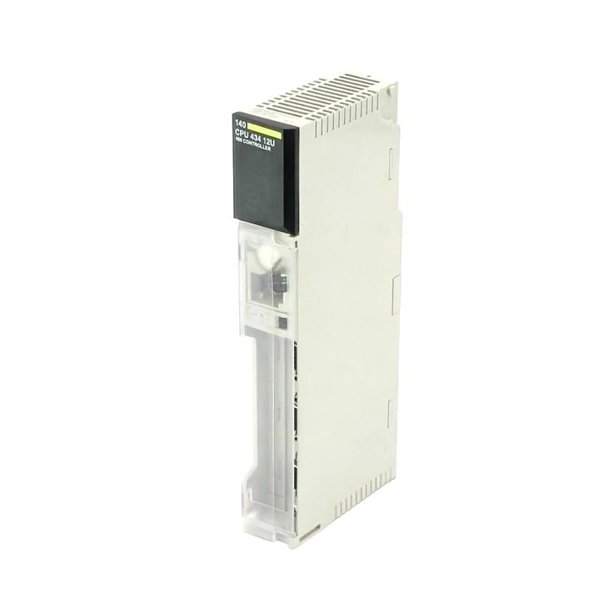

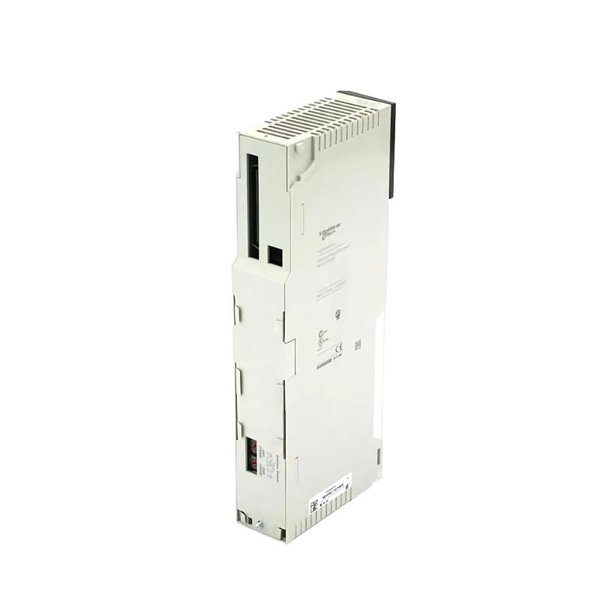

Schneider 140CPU43412UC Unity Processor

The Schneider Electric 140CPU43412UC is a high-performance Unity processor module designed for use within the Modicon Quantum automation platform. Tailored for demanding industrial control environments, this CPU module delivers powerful processing capabilities, advanced networking, and seamless integration into complex automation systems.

The 140CPU43412UC supports Unity Pro programming software and is compatible with a wide range of I/O modules, communication adapters, and expansion modules. It features a 486-based 32-bit processor, enhanced memory architecture, and multiple ports for Ethernet and Modbus communications.

Designed to serve mission-critical applications in process industries, utilities, and infrastructure, this Unity processor is engineered for robustness, real-time control, and high availability—making it a preferred choice for scalable and distributed control systems.

Technical Specifications

Applications

The 140CPU43412UC Unity Processor is widely implemented in large-scale and critical industrial environments, including:

• Process Automation

  Ideal for petrochemical, pharmaceutical, and food & beverage industries requiring real-time batch, continuous, or hybrid process control.

• Power and Energy Systems

  Used in substations, distributed energy systems, and utility grids for controlling power distribution, metering, and load balancing.

• Water and Wastewater Treatment

  Manages pump stations, filtration units, and SCADA-based control systems for municipal and industrial water infrastructure.

• Manufacturing Plants

  Suitable for discrete manufacturing automation, including motion control, machine sequencing, and conveyor logic.

• Infrastructure and Transport

  Deployed in airport baggage handling, metro systems, tunnel ventilation, and lighting automation systems.

• Oil & Gas Facilities

  Used in upstream, midstream, and downstream operations for control and monitoring of drilling, refining, and transport systems.

Advantages

• High Processing Performance

  With a 66 MHz processor and 544 KB of application memory, the module executes logic at extremely high speeds, supporting complex applications.

• Unity Pro Compatibility

  Seamless integration with Unity Pro software simplifies configuration, programming, diagnostics, and simulation.

• Robust Network Integration

  Built-in Ethernet and Modbus ports allow for flexible and redundant communication across multiple network architectures.

• Scalability and Modularity

  Easily integrates with other Quantum I/O and expansion modules, offering scalable control from a single PLC to distributed systems.

• Redundancy and High Availability

  Supports hot standby configurations, power redundancy, and CPU switchover, minimizing system downtime in critical operations.

• Global Certifications

  Certified for international use, including hazardous and regulated environments (CE, UL, ATEX, etc.).

Frequently Asked Questions (FAQ)

1. What software is required to program the 140CPU43412UC?

You need Unity Pro or EcoStruxure Control Expert, which provides IEC 61131-3 compliant languages and intuitive programming interfaces.

2. Can this CPU module support hot standby redundancy?

Yes, it supports full hot standby CPU redundancy for mission-critical systems with zero logic execution downtime during failover.

3. What are the communication options available?

It includes 2 Ethernet ports, Modbus, and RS-232/485, enabling connectivity across plant networks and field devices.

4. How much application memory is available for user programs?

The CPU offers 544 KB of application memory, which is sufficient for complex and large-scale process control programs.

5. Does the 140CPU43412UC support remote diagnostics?

Yes, through Unity Pro or SCADA integration, users can monitor CPU status, error logs, and real-time system behavior remotely.

6. Is this processor compatible with existing Quantum I/O modules?

Yes, it is fully compatible with all standard Modicon Quantum backplanes and I/O modules.

7. Can I expand the memory of the CPU?

Yes, additional memory can be added using PCMCIA flash memory cards.

8. Is this processor certified for use in hazardous environments?

Yes, it holds ATEX and other industrial certifications, making it suitable for use in oil & gas and chemical industries.

9. How is program memory managed or expanded?

The processor has built-in application memory and supports PCMCIA flash memory cards for program and data expansion.

10. Does it support legacy Modbus RTU devices?

Yes, the RS-232/485 port allows communication with Modbus RTU slaves, making it compatible with legacy field devices.
