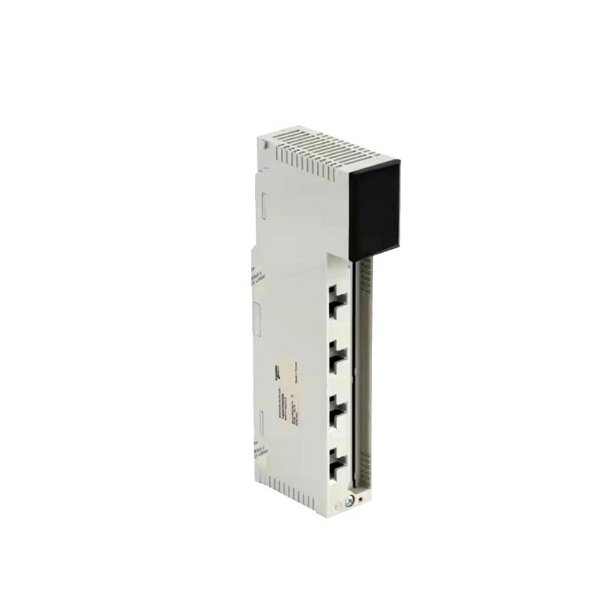

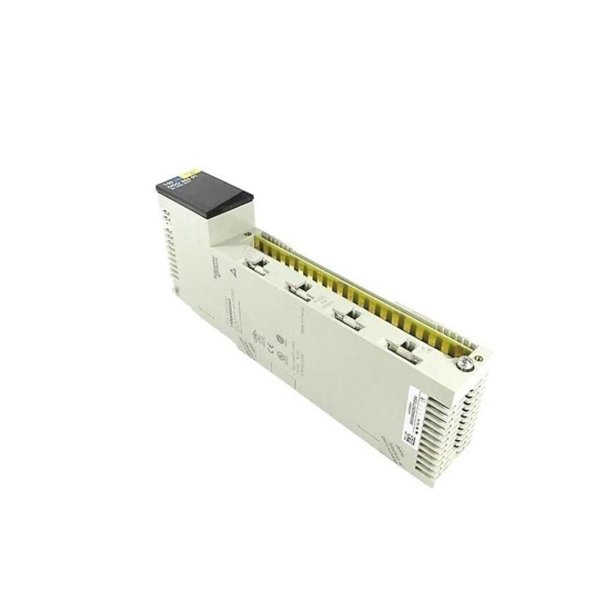

Schneider 140NOM25200 DIO Head-End Adaptor

The Schneider Electric 140NOM25200 is a Distributed I/O (DIO) Head-End Adaptor module from the Modicon Quantum series, engineered to interface Quantum PLCs with remote I/O via the Remote I/O (RIO) communication bus. It functions as a bridge between the controller and multiple drops of distributed I/O modules, maintaining data consistency, synchronization, and high-speed communication throughout industrial control environments. Built with Schneider’s robust industrial standards, the 140NOM25200 offers high reliability in automation architectures requiring efficient I/O expansion across distributed zones.

Designed for demanding applications, the adaptor supports advanced diagnostics, modular expansion, and high communication throughput. Its DIN rail mount compatibility and compact form factor make it ideal for integration into control cabinets with space constraints.

Technical Specifications

Product Applications

The 140NOM25200 is widely deployed in industrial automation systems where distributed I/O architectures are necessary. It is ideal for use in:

• Manufacturing plants: Automating conveyor systems, robotic arms, packaging lines.

• Oil & gas facilities: Monitoring and controlling remote sensors and actuators in hazardous zones.

• Water treatment plants: Managing remote stations, pump operations, and sensor networks.

• Power generation: Facilitating communication between turbine control and field I/Os.

• Building automation systems: Integrating lighting, HVAC, and security control from a centralized PLC.

• Food & beverage industries: Ensuring seamless operations across distributed equipment zones.

Its versatility, compatibility with Quantum controllers, and reliable performance make it suitable for critical real-time process automation tasks.

Product Advantages

• Seamless Quantum Integration: Fully compatible with the Quantum PLC backplane and Schneider Electric RIO architecture.

• Modular and Scalable: Enables expansion to up to 31 remote I/O drops, allowing flexible system growth.

• Robust Communication: Provides fast, deterministic data exchange via RIO, ensuring real-time responsiveness.

• High Availability: Suitable for high-reliability environments with minimal communication latency.

• Diagnostic Transparency: Built-in LED status indicators help with real-time monitoring and troubleshooting.

• Space Efficient Design: Slim profile ensures easy installation within constrained industrial panels.

• Industrial-Grade Build: Rugged construction withstands harsh industrial conditions.

• Vendor Support: Backed by Schneider’s global network of support, service, and spare parts.

FAQ

1. What is the primary function of the 140NOM25200 module?

   It acts as a DIO head-end adaptor that facilitates communication between a Quantum PLC and remote I/O modules.

2. Which PLC series is it compatible with?

   The module is designed specifically for Schneider Electric’s Modicon Quantum series PLCs.

3. Can the 140NOM25200 be used in redundant configurations?

   Yes, it supports use in redundant RIO networks for high availability applications.

4. What is the maximum number of remote I/O drops supported?

   It supports up to 31 remote I/O drops over the Remote I/O network.

5. Does it support hot swapping?

   Yes, Quantum series modules, including 140NOM25200, generally support hot-swapping with minimal system disruption.

6. How is the 140NOM25200 powered?

   It is powered through the Quantum rack backplane and does not require a separate external power supply.

7. What type of diagnostic features are included?

   The module features front-panel LED indicators to show power status, communication activity, and error states.

8. What is the operating temperature range?

   The module operates between 0°C to 60°C, suitable for most indoor industrial environments.

9. Can this module be used with other Schneider Electric I/O modules?

   Yes, it supports a wide range of Schneider I/O modules that are compatible with Quantum architecture.

10. Is it suitable for use in safety-critical applications?

    While not a safety-certified module, it can be used in conjunction with certified devices in process automation systems.
