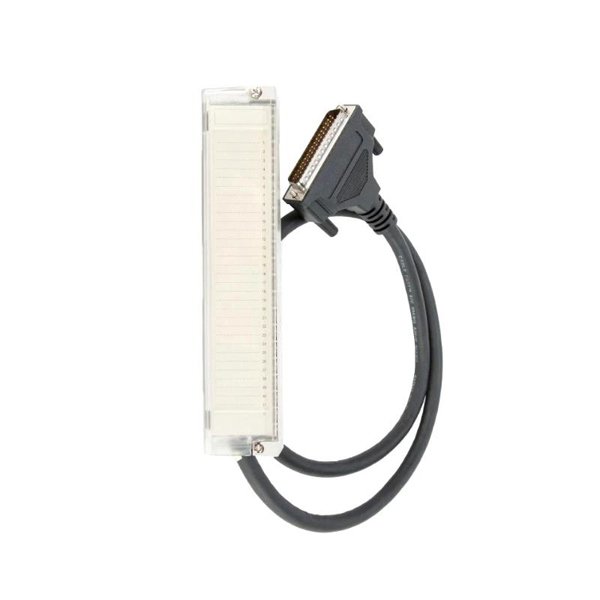

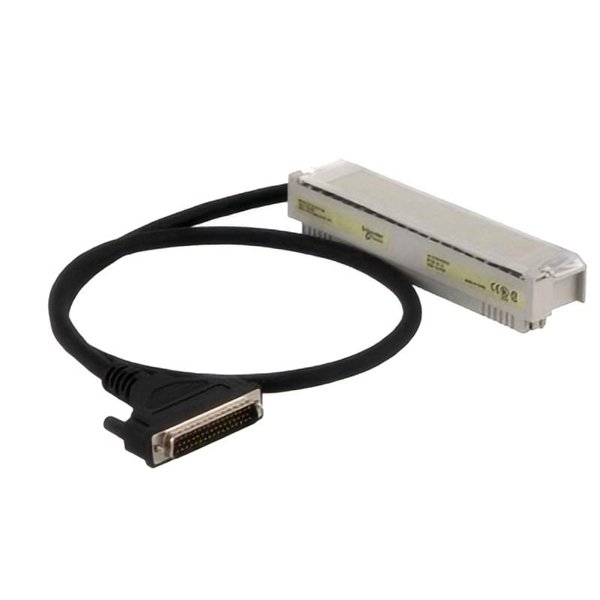

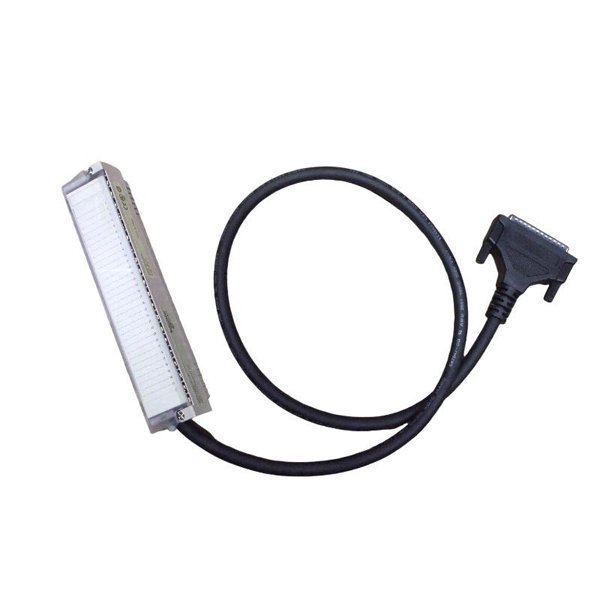

Schneider 140XTS00203 CableFast System Cable

The Schneider 140XTS00203 is an industrial-grade CableFast system cable designed for high-performance connectivity within the Modicon Quantum automation platform. This specialized cable is engineered to facilitate rapid and reliable signal transmission between I/O bases and other automation system modules, optimizing installation efficiency and system reliability in demanding environments.

Part of Schneider Electric’s renowned CableFast family, this cable is pre-assembled with industrial connectors to reduce wiring complexity, minimize installation time, and lower the risk of miswiring. It provides a consistent and secure interface for transferring digital and analog signals, ensuring seamless communication between critical automation components.

The 140XTS00203 is particularly suitable for applications where high-speed and error-free data transfer is critical, such as in continuous processing plants, energy management systems, and manufacturing automation cells. With robust construction and long operational life, this cable is built to meet the rigorous demands of industrial control systems.

Technical Specifications

Product Applications

• Factory Automation Systems: Connecting remote or local I/O bases to Quantum CPUs or interface modules.

• Continuous Process Plants: Used in critical environments where signal integrity must be preserved.

• Automotive and Packaging Lines: Enables modular wiring for systems requiring frequent reconfiguration.

• Power Generation Facilities: Supports fast installation and commissioning of monitoring equipment.

• Oil & Gas Operations: Maintains data reliability in harsh, vibration-prone locations.

• Building Automation: Facilitates centralized wiring schemes in large-scale infrastructure controls.

Key Advantages

• Rapid Deployment: Pre-terminated connectors drastically reduce setup time and eliminate the need for custom field wiring.

• Reliable Performance: Designed to maintain signal integrity with low susceptibility to electromagnetic interference.

• Space-Saving: Clean, compact layout improves enclosure space management.

• Reduced Downtime: Factory-quality terminations minimize wiring errors and enhance diagnostics during maintenance.

• Durability: Built with industrial-strength materials to endure environmental stress and extended use.

• Standardization: Part of the CableFast system, allowing consistent use across multiple Quantum installations.

Frequently Asked Questions (FAQ)

1. What is the primary purpose of the 140XTS00203 cable?

The cable is used to connect I/O modules within Schneider’s Modicon Quantum system, enabling fast and secure communication between automation components.

2. Can this cable be used with non-Schneider equipment?

It is specifically designed for use with Schneider’s CableFast system and may not be compatible with third-party systems.

3. Is this cable shielded against electromagnetic interference (EMI)?

Yes, it features both foil and braid shielding to ensure reliable data transmission in electrically noisy environments.

4. What are the benefits of pre-terminated connectors?

Pre-terminated connectors eliminate the need for manual wiring, reducing installation errors and time while ensuring consistent electrical performance.

5. How long is the 140XTS00203 cable?

It is 0.9 meters in length, suitable for typical rack or panel interconnections.

6. Is the cable suitable for outdoor or harsh environments?

While durable, it is primarily intended for indoor industrial use. Additional protection may be required for outdoor applications.

7. What type of signals can the cable transmit?

It is capable of transmitting both analog and digital control signals, depending on the configuration of the I/O modules it connects.

8. How is the cable secured to the base modules?

It utilizes locking connectors designed for quick and secure attachment to CableFast-compatible ports.

9. Is the 140XTS00203 UL certified?

Yes, it complies with UL and CE standards for industrial automation equipment.

10. Does Schneider Electric offer different cable lengths in this series?

Yes, the CableFast series includes various lengths to suit different installation needs, such as 0.5m, 1.0m, 3.0m, and longer.
