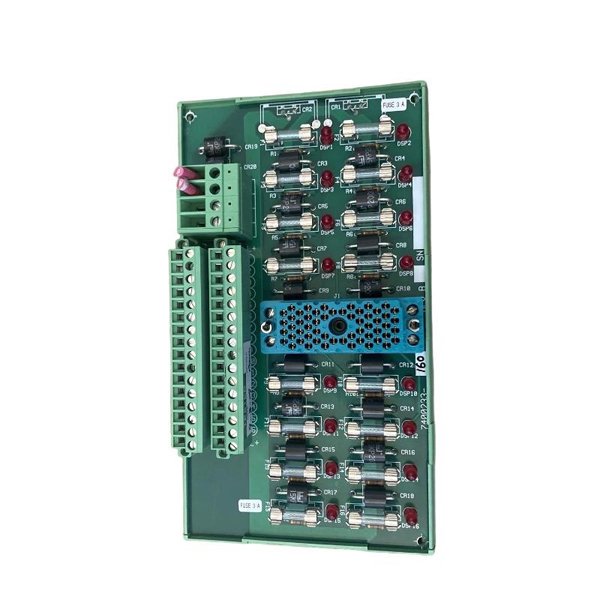

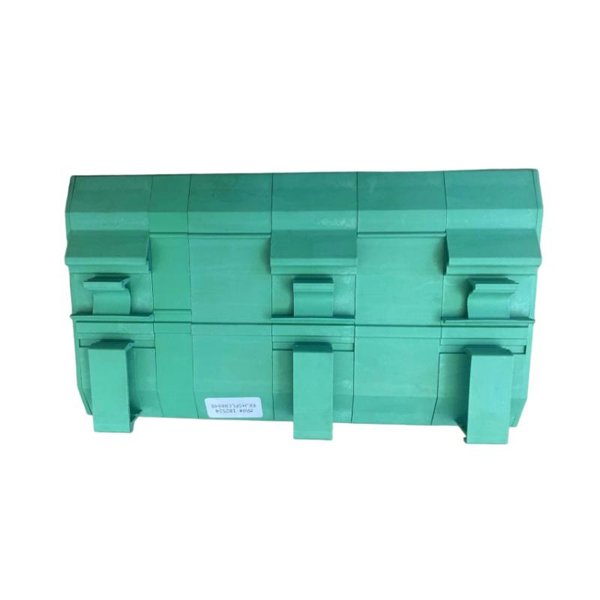

Triconex 9663-610 DO Term Panel

The Triconex 9663-610 Digital Output (DO) Terminal Panel is a high-performance interface module designed to distribute digital output signals from Triconex control systems to field devices. This module serves as a critical connection point for controlling actuators, relays, solenoids, and other digital devices in safety and process automation environments.

The 9663-610 ensures signal integrity through robust construction and precise circuitry, making it suitable for harsh industrial conditions such as high vibration, electrical noise, and temperature fluctuations. Its modular design allows easy integration into Triconex systems, supporting both standalone and redundant configurations in Safety Instrumented Systems (SIS), Emergency Shutdown Systems (ESD), and Fire & Gas (F&G) applications.

Product Specifications

Applications

The Triconex 9663-610 DO Terminal Panel is used in industrial systems that require reliable digital output signal distribution:

• Safety Instrumented Systems (SIS) – Controls actuators and shutdown devices in critical applications.

• Emergency Shutdown Systems (ESD) – Provides reliable digital outputs to initiate safe shutdown sequences.

• Fire & Gas Systems (F&G) – Drives alarm and control devices in hazardous areas.

• Process Automation – Interfaces with relays, solenoids, and field controllers for automated operations.

• Oil, Gas, and Petrochemical Plants – Supports high-integrity control of safety and process systems.

• Power Generation – Manages control signals for turbine, generator, and auxiliary equipment.

Advantages

The Triconex 9663-610 DO Terminal Panel offers multiple technical and operational advantages:

• High Reliability – Provides consistent, isolated digital outputs to field devices.

• Channel Isolation – Protects against cross-talk and electrical faults between channels.

• Robust Construction – Designed for harsh industrial environments with vibration and shock resistance.

• Diagnostics – Built-in LED indicators and fault detection facilitate maintenance and troubleshooting.

• Modular Design – Simplifies installation, replacement, and integration with Triconex systems.

• Redundant Compatibility – Supports redundant architectures for fault-tolerant control.

• Safety Compliance – Certified for use in SIL3 safety applications.

• Flexible Output Configuration – Supports relay-driven or transistor-based outputs.

FAQ

1. What types of digital outputs are supported by the 9663-610?

   It supports relay-driven and transistor-based digital outputs.

2. How many channels does the panel provide?

   It has 16 isolated digital output channels.

3. Does the panel provide channel-to-channel isolation?

   Yes, all channels are electrically isolated from each other and from the system.

4. What is the maximum output current per channel?

   Up to 2 A per channel.

5. Is the panel suitable for redundant system architectures?

   Yes, it integrates into redundant Triconex configurations.

6. What diagnostic features are included?

   Built-in LEDs indicate output status and fault conditions for each channel.

7. Can the panel operate in high-vibration environments?

   Yes, it is mechanically reinforced to withstand vibration and shock.

8. What is the operating voltage for digital outputs?

   24 VDC nominal.

9. Is the 9663-610 suitable for safety instrumented systems (SIS)?

   Yes, it is IEC 61508 SIL3 certified.

10. Does the panel support integration with actuators and relays?

    Yes, it interfaces directly with industrial actuators, relays, and solenoids.
