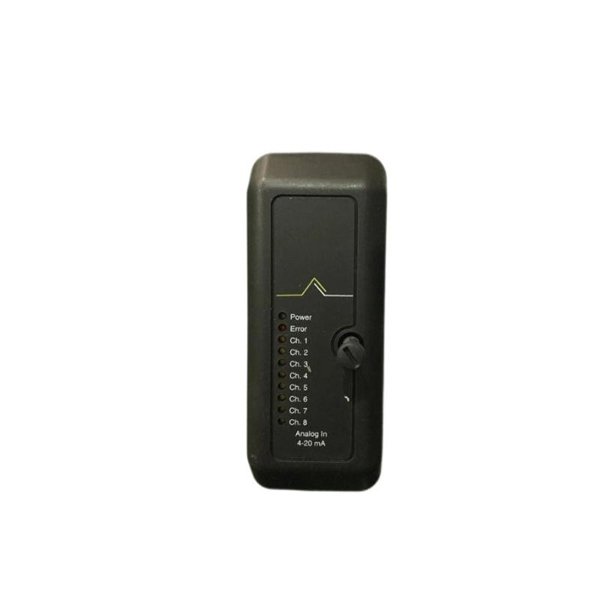

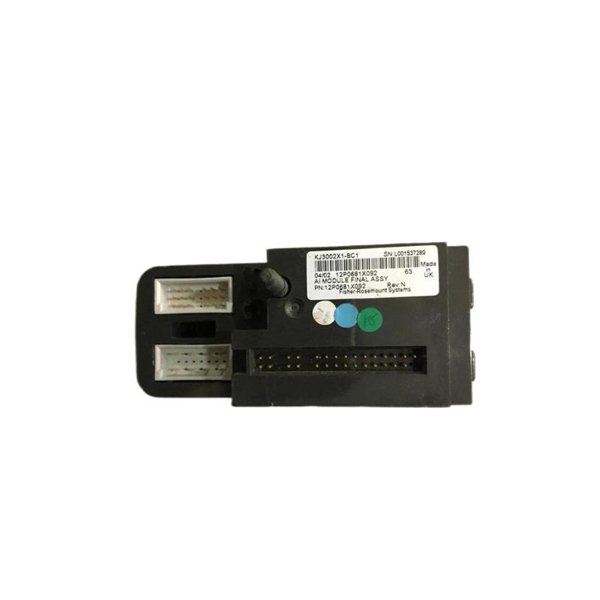

Emerson KJ3002X1-BC1 Analog Input Module

The Emerson KJ3002X1-BC1 is an 8-channel analog input module designed for integration with Emerson’s DeltaV distributed control system (DCS). It facilitates the accurate measurement of analog signals from field instruments, supporting various input types including 4–20 mA, HART, and RTD. This module ensures reliable data acquisition for process control applications across diverse industries.

Technical Specifications

Product Applications

The KJ3002X1-BC1 module is suitable for various industrial applications requiring precise analog signal measurement:

• Process Manufacturing: Monitoring variables such as temperature, pressure, and flow rate.

• Oil and Gas: Measuring parameters like level, density, and composition in refineries and pipelines.

• Power Generation: Tracking power output, voltage, and current in power plants.

• Water and Wastewater Treatment: Assessing pH, conductivity, and turbidity in treatment facilities.

• Chemical Processing: Controlling process variables in chemical plants.

• Food and Beverage: Ensuring precise control of process variables in production lines.

Product Advantages

• High Accuracy and Resolution: Ensures precise measurement of analog signals, enhancing process control.

• Multi-Signal Support: Accommodates various input types, including 4–20 mA, HART, and RTD, providing flexibility.

• Wide Operating Temperature Range: Operates reliably in extreme environmental conditions.

• Compact Design: Small form factor allows for efficient use of panel space.

• Easy Integration: Seamlessly integrates with Emerson’s DeltaV DCS, simplifying system configuration.

• Robust Construction: Built to withstand industrial environments, ensuring long-term reliability.

FAQ

1. What types of input signals does the KJ3002X1-BC1 support?

   It supports 4–20 mA, HART, and RTD input signals.

2. How many channels are available on this module?

   The module provides 8 analog input channels.

3. Can this module be mounted on a DIN rail?

   Yes, it is designed for DIN rail mounting.

4. What is the operating temperature range?

   The module operates between -40°C and 80°C (-40°F to 176°F).

5. Is the module compatible with Emerson’s DeltaV DCS?

   Yes, it is specifically designed for integration with the DeltaV system.

6. What is the accuracy of the analog inputs?

   The module offers an accuracy of ±0.1% of full scale.

7. Does the module support HART communication?

   Yes, it supports HART protocol for enhanced device communication.

8. What is the power consumption of the module?

   It consumes approximately 15 W of power.

9. What are the dimensions and weight of the module?

   Dimensions are 107 x 41 x 105 mm, and it weighs 0.181 kg.

10. Is the module certified for industrial use?

    Yes, it carries CE, UL, and CSA certifications.
