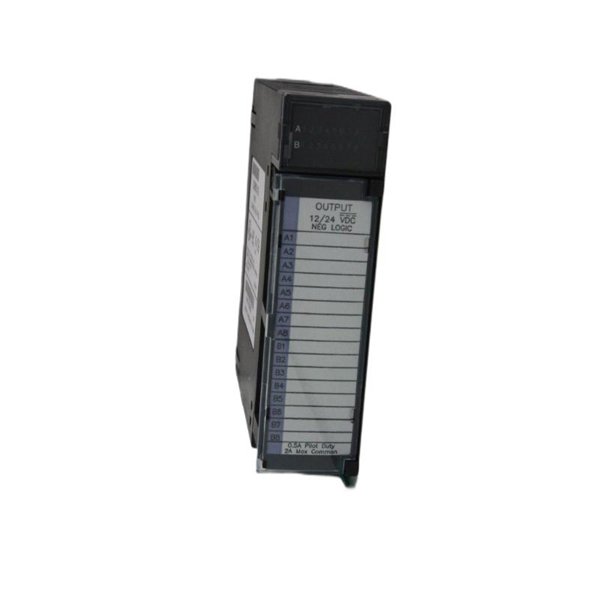

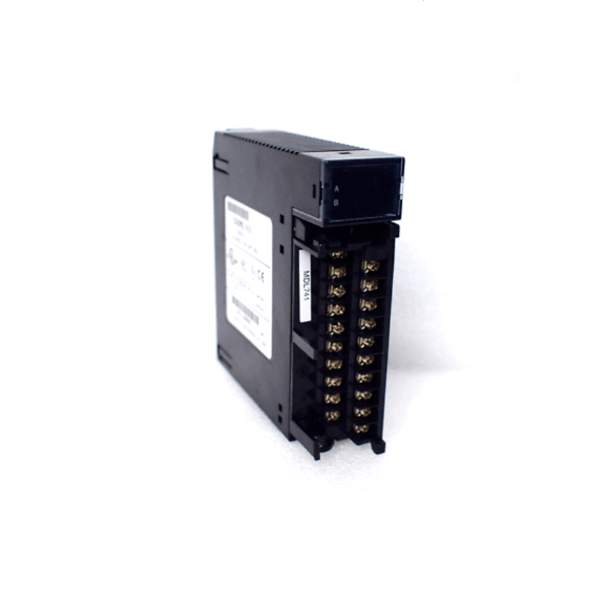

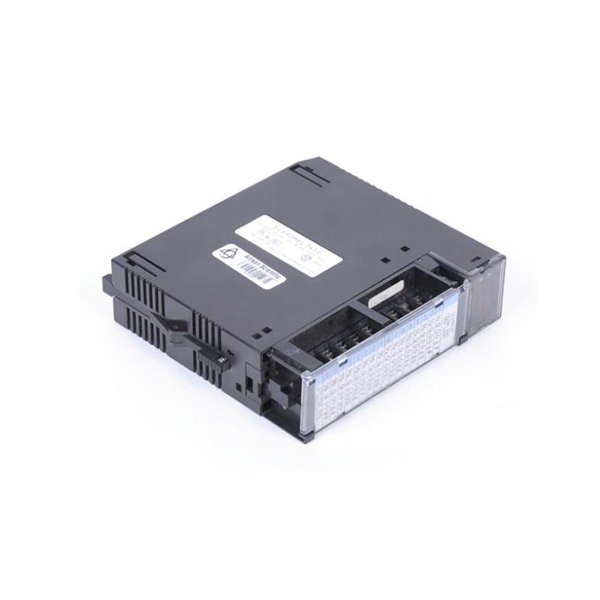

General Electric IC693MDL741G Positive/Negative Logic Input Module

The GE IC693MDL741G is a Digital Output Module used in industrial automation systems. It is part of the GE 90-30 Series programmable logic controllers (PLCs) and provides efficient and reliable control over various automation systems. This module plays a key role in driving various digital devices and actuators based on the signals from the PLC system.

The IC693MDL741G module is designed to operate within rugged industrial environments, offering precise control in harsh conditions. It is widely used in applications such as manufacturing processes, assembly lines, and other systems that require high-performance digital control.

Product Specifications

Below are the specifications for the GE IC693MDL741G:

Applications of GE IC693MDL741G

The GE IC693MDL741G module is commonly used in a variety of industrial automation applications, including but not limited to:

1. Manufacturing Control Systems – Provides output control to machinery and devices in manufacturing lines.

2. Packaging Equipment – Controls motors, valves, and other devices in automated packaging machines.

3. Process Control Systems – Manages the control of pumps, actuators, and other machinery in continuous processing environments.

4. Material Handling Systems – Operates conveyors, sorters, and automated storage/retrieval systems.

5. Automated Assembly Lines – Controls robotic arms, sorting devices, and other machinery in assembly systems.

6. Building Automation – Manages heating, ventilation, and air conditioning (HVAC) systems, lighting, and other automated systems.

Advantages of GE IC693MDL741G

1. High Reliability – Offers stable performance and long-lasting durability, minimizing downtime in industrial operations.

2. Compact Design – The compact size allows easy integration into existing automation setups without taking up excessive space.

3. Wide Compatibility – Works seamlessly with a variety of GE 90-30 PLC systems, providing flexibility in system configuration.

4. Cost-Effective – Provides an efficient and affordable solution for controlling digital devices in industrial settings.

5. Ease of Installation – Simple to mount and connect with other system components, reducing installation time.

6. Wide Temperature Range – Operates effectively in a broad range of temperatures, making it suitable for use in diverse environments.

FAQs

1. What is the operating voltage of the GE IC693MDL741G?

   • The operating voltage range for the GE IC693MDL741G is 5-30 VDC.

2. How many outputs does the IC693MDL741G have?

   • The IC693MDL741G has 16 digital outputs.

3. What is the output current per channel?

   • Each output can provide up to 0.5 A of current.

4. What is the maximum power consumption of the module?

   • The maximum power consumption is 0.3 W.

5. Can this module be used in outdoor environments?

   • No, the IC693MDL741G has an IP20 rating, which means it is designed for indoor use only.

6. What is the storage temperature range for the module?

   • The module can be stored in temperatures ranging from -20°C to 70°C.

7. Is this module compatible with other GE 90-30 PLCs?

   • Yes, the GE IC693MDL741G is compatible with other GE 90-30 PLC models.

8. What type of connections does the IC693MDL741G use?

   • The module uses screw terminal blocks for connecting outputs.

9. What is the weight of the module?

   • The module weighs 0.4 Kg.

10. What is the maximum output power for the module?

    • The maximum output power is 8 W.
