General Electric IS200VGeneral ElectricNH1B Generator Monitor and Trip Board

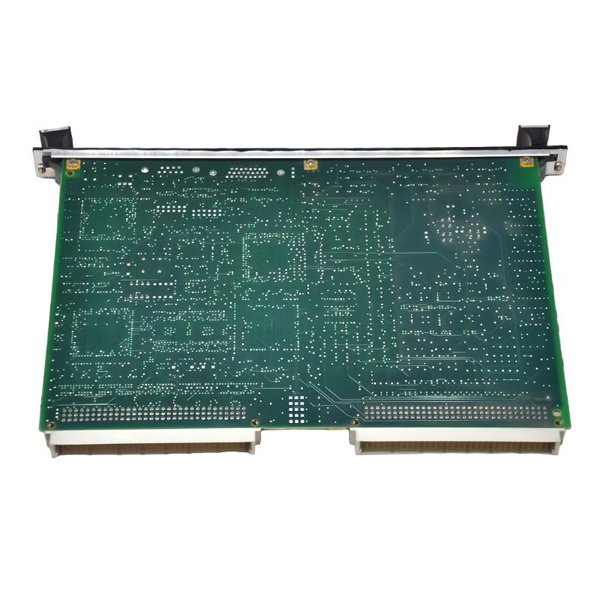

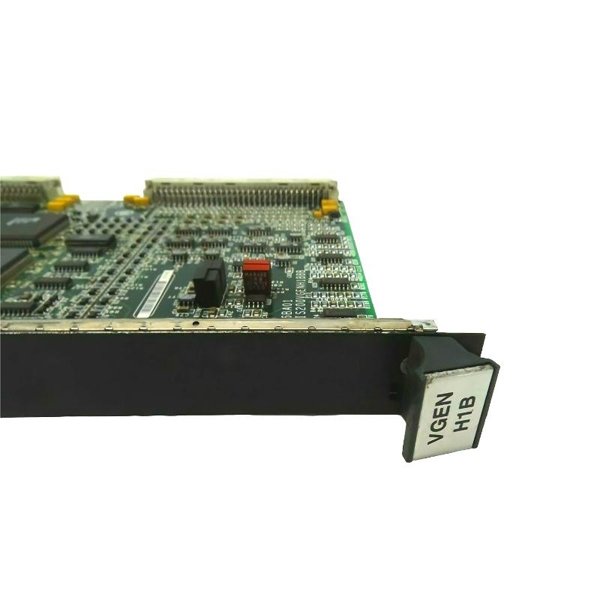

The GE IS200VGENH1B Generator Monitor and Trip Board is a specialized control and protection module used in GE Mark VI turbine and generator control systems. This board is designed to monitor critical generator operating parameters and provide fast, reliable trip functionality to protect equipment from abnormal conditions.

By integrating high-speed monitoring, fault detection, and trip initiation into one module, the IS200VGENH1B ensures maximum generator safety and system reliability. It is capable of handling multiple input signals, analyzing conditions in real time, and issuing trip commands to shut down or isolate the generator when operating outside of defined parameters.

Engineered with industrial-grade components and high isolation, the board is built for demanding environments such as power plants, industrial generation facilities, and energy infrastructure applications.

Product Specifications

Product Applications

The GE IS200VGENH1B is primarily used in critical generator control and protection applications. Common use cases include:

• Generator Protection Systems: Monitors generator parameters and issues trip commands for overcurrent, overspeed, or voltage abnormalities.

• Turbine and Generator Integration: Interfaces turbine and generator control systems for coordinated protection.

• Power Generation Plants: Used in thermal, hydro, and gas turbine generator units for real-time fault monitoring.

• Emergency Shutdown Systems: Provides high-speed trip response for critical safety applications.

• Industrial Power Systems: Ensures reliable operation and protection of on-site generation equipment.

• GE Mark VI Systems: Designed specifically for seamless integration with GE Mark VI control platforms.

Product Advantages

• Fast Trip Response: Provides sub-10 ms trip initiation for critical generator protection.

• Integrated Monitoring: Combines real-time generator condition monitoring with trip control in one board.

• High Isolation: 1500 V RMS isolation protects control electronics from field-side disturbances.

• Industrial-Grade Design: Engineered to operate in harsh environments with wide temperature range and EMI immunity.

• Seamless Integration: Fully compatible with GE Mark VI turbine and generator control systems.

• Enhanced Reliability: Uses high-quality components for long-term stable operation in mission-critical systems.

FAQ

1. What is the main function of the IS200VGENH1B board?

   It monitors generator operating conditions and provides trip control to protect equipment.

2. Is the IS200VGENH1B designed for use with GE Mark VI systems?

   Yes, it is specifically engineered for seamless integration with GE Mark VI turbine and generator platforms.

3. What is the typical trip response time of the board?

   The board provides a fast trip response time of less than 10 ms.

4. Does the IS200VGENH1B provide galvanic isolation?

   Yes, it offers 1500 V RMS isolation between control and field circuits.

5. What type of outputs are used for trip signaling?

   The board uses high-speed relay outputs to initiate generator trips.

6. Can the board monitor multiple input signals simultaneously?

   Yes, it supports multiple analog and discrete input channels for comprehensive monitoring.

7. What is the nominal power supply voltage required for operation?

   The board typically operates at 28 VDC nominal control power.

8. Is the board suitable for emergency shutdown applications?

   Yes, its fast trip response makes it ideal for ESD and critical protection systems.

9. What kind of mounting does the IS200VGENH1B use?

   It is designed for rack or card cage mounting within Mark VI systems.

10. Does the IS200VGENH1B meet industrial compliance standards?

    Yes, it complies with UL, CE, RoHS, and IEC standards for industrial automation and safety equipment.
