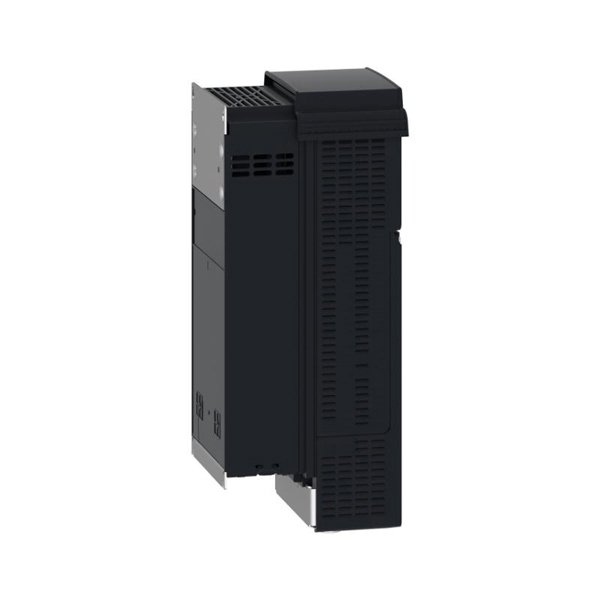

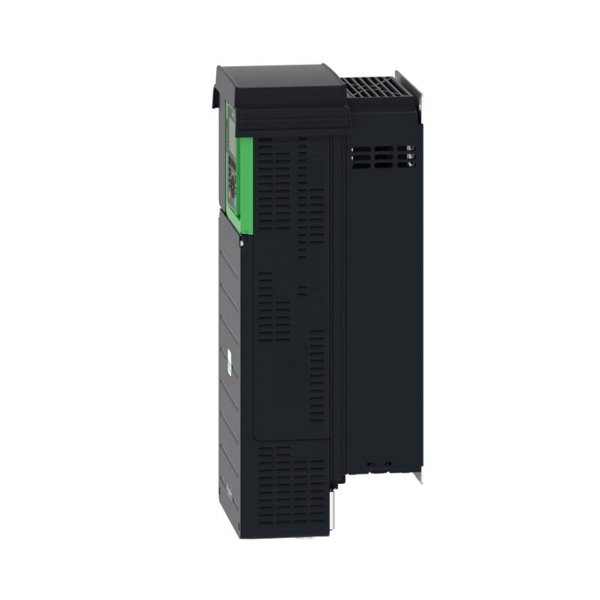

Schneider ATV930D22N4 Variable Speed Drive
Manufacturer:Schneider
Product Number:ATV930D22N4
Product Type:Variable Speed Drive
Origin:France
Dimensions:211 x 545.9 x 235 mm
Weight:14.3 kg
Views:49
Payment Methods:T/T, PayPal, Western Union
Condition:New & In Stock
Warranty:1 Year
Lead Time:1-3 Working Days
Certificate:COO
Courier partners:DHL, UPS, TNT, FedEx and EMS.
Business hours:7*24
Product Description
The Schneider ATV930D22N4 is a high-performance variable speed drive designed for demanding industrial motor control applications. It offers precise speed and torque control, energy efficiency, and robust protection for motors in a variety of environments. With advanced features and compact design, it is ideal for use in harsh and critical operations.
Product Applications
The ATV930D22N4 is widely used in industries such as water treatment, mining, oil & gas, food & beverage, and manufacturing. Typical applications include pumps, fans, conveyors, mixers, and compressors where variable motor control and energy savings are essential.
Product Advantages
-
High energy efficiency with advanced motor control algorithms
-
Reliable operation in harsh conditions with IP21 protection
-
Compact size for easy panel integration
-
Supports multiple motor types including synchronous and asynchronous
-
Built-in safety features and diagnostics
-
User-friendly interface for quick setup and monitoring
Technical Specifications
| Parameter | Value |
|---|---|
| Power Rating | 22 kW (30 HP) |
| Input Voltage | 380…480 V AC, 3-phase |
| Output Voltage | 0…480 V AC |
| Frequency Range | 0.1…500 Hz |
| Control Method | V/F, sensorless vector, torque control |
| Protection Level | IP21 |
| Communication Options | Modbus, CANopen, Ethernet |
| Dimensions (H x W x D) | 211 x 545.9 x 235 mm |
| Weight | 14.3 kg |
FAQ
Q1: What is the power output of the ATV930D22N4?
A1: The power output is 22 kW (30 HP).
Q2: What voltage does it support?
A2: It supports 380–480 V AC, 3-phase input.
Q3: What types of motors can it control?
A3: It can control asynchronous, synchronous, and permanent magnet motors.
Q4: Does it have built-in communication protocols?
A4: Yes, it supports Modbus, CANopen, and Ethernet.
Q5: What is the protection degree?
A5: The drive has IP21 protection.
Q6: Can it operate in harsh environments?
A6: Yes, it is designed to withstand industrial environments with dust and temperature variations.
Q7: What is the frequency range of operation?
A7: It can operate from 0.1 Hz up to 500 Hz.
Q8: Is it easy to install and configure?
A8: Yes, it features a compact design and intuitive interface for fast setup.
Q9: What are typical applications?
A9: Pumps, fans, compressors, conveyors, and mixers.
Q10: How heavy is the unit?
A10: The weight is 14.3 kg.
