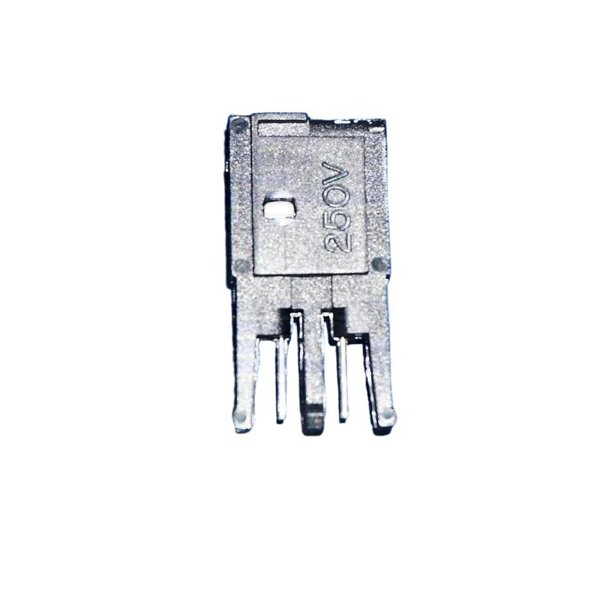

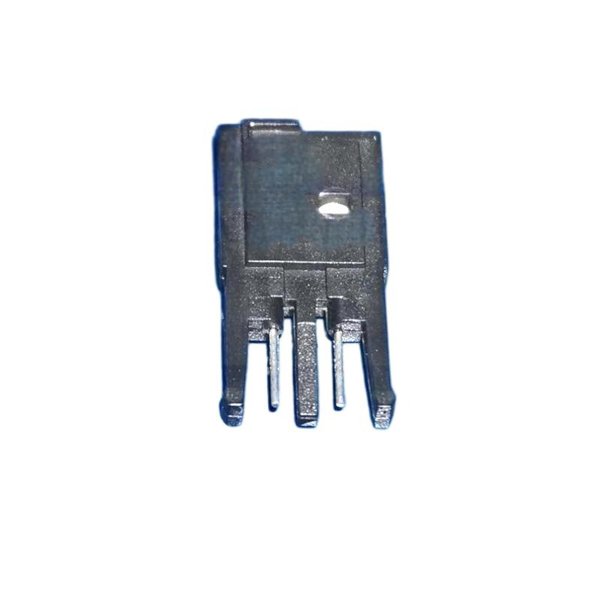

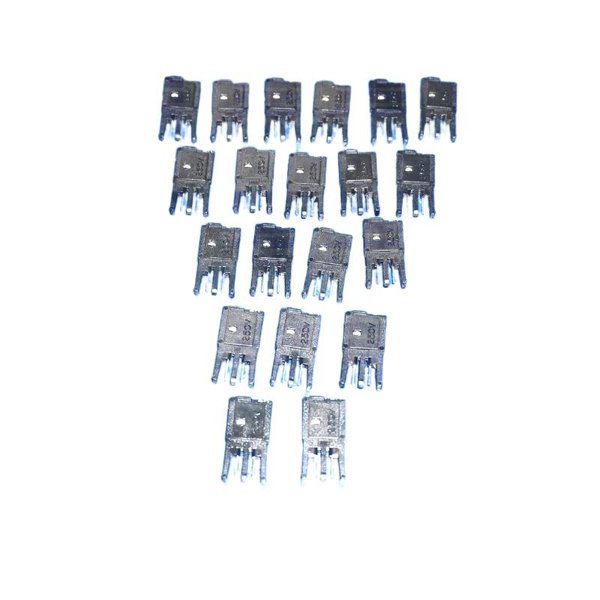

Emerson KJ4010X1-BC1 Fuse

The Emerson KJ4010X1-BC1 Fuse is a high-performance industrial protection component designed specifically for the DeltaV™ distributed control system (DCS) and other Emerson process automation platforms. This fuse provides reliable overcurrent and short-circuit protection to ensure the continuous and safe operation of critical automation systems in demanding industrial environments.

Engineered with advanced materials and precise manufacturing standards, the KJ4010X1-BC1 delivers exceptional reliability, low maintenance requirements, and compatibility with a wide range of Emerson modules and terminal blocks. Its robust construction makes it ideal for use in power-intensive and mission-critical processes across industries such as oil and gas, petrochemicals, power generation, water treatment, and advanced manufacturing.

Technical Specifications

Applications

• Process Automation – Protects sensitive control hardware from current surges and faults.

• Oil and Gas Industry – Ensures safe operation of drilling platforms, pipeline control systems, and offshore equipment.

• Power Generation – Provides stable protection for turbines, switchgear, and critical control modules.

• Chemical and Petrochemical Plants – Safeguards process control systems against electrical anomalies.

• Water and Wastewater Treatment – Maintains uninterrupted control of pumps, valves, and monitoring systems.

• Industrial Manufacturing – Supports reliable operation of high-speed assembly and robotics equipment.

Advantages

• Reliable Overcurrent Protection – Ensures stable operation by quickly isolating faults.

• High Breaking Capacity – Designed to withstand and safely interrupt high fault currents.

• Compatibility – Seamlessly integrates with Emerson DeltaV™ modules and related terminal blocks.

• Durable Construction – Built to perform in harsh industrial environments with high temperature and humidity resistance.

• Low Maintenance – Long service life reduces downtime and maintenance frequency.

• Safety Certified – Meets international standards including CE, UL, and ATEX for global industrial compliance.

• Compact and Efficient – Saves panel space while offering robust protection.

• Wide Application Range – Suitable for a variety of industrial sectors and mission-critical processes.

• Fast Response Time – Protects sensitive equipment from damage during sudden electrical surges.

• Proven Performance – Extensively tested and field-proven in automation installations worldwide.

FAQ

Q1: What systems is the KJ4010X1-BC1 fuse compatible with?

A1: It is primarily designed for Emerson DeltaV™ DCS systems but can also be used with other Emerson industrial modules.

Q2: What is the rated current of the KJ4010X1-BC1 fuse?

A2: The fuse is rated for 10 A under standard configurations.

Q3: Can this fuse handle both AC and DC voltages?

A3: Yes, it supports 250 VAC and 125 VDC, making it versatile for different power configurations.

Q4: Does the fuse feature a fast response time?

A4: Yes, it is a fast-acting fuse optimized for sensitive industrial electronics.

Q5: What certifications does the KJ4010X1-BC1 meet?

A5: It complies with CE, UL, ATEX, and RoHS certifications for safety and reliability.

Q6: Is this fuse suitable for high-humidity environments?

A6: Yes, it can operate effectively in up to 95% non-condensing humidity conditions.

Q7: Can the KJ4010X1-BC1 be replaced easily during maintenance?

A7: Yes, its design allows for quick replacement without requiring specialized tools.

Q8: What is the recommended operating temperature range?

A8: It performs reliably within –20 °C to +70 °C.

Q9: Does the fuse have a high interrupting capacity?

A9: Yes, it is designed with high breaking capacity to protect critical systems during heavy fault conditions.

Q10: How does the fuse ensure system safety during overcurrent events?

A10: It isolates the faulted circuit instantly, preventing damage to other components and minimizing downtime.
