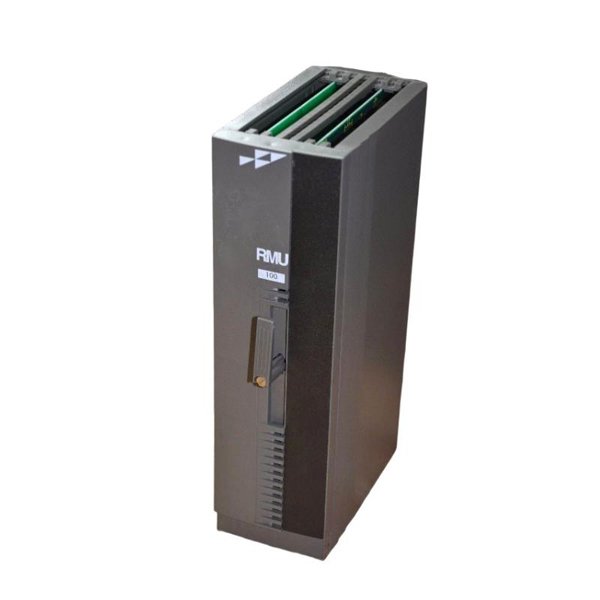

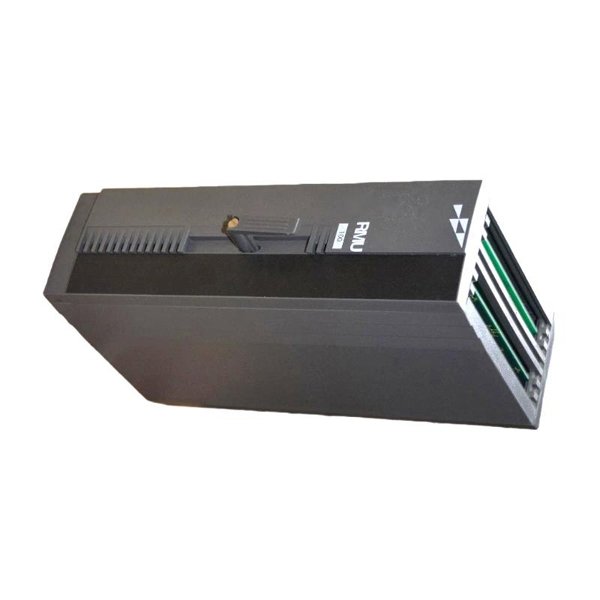

ABB Bailey RMU-100 PHBRMU10010000 Repeater Mounting Unit

The ABB Bailey RMU-100 PHBRMU10010000 Repeater Mounting Unit is a specialized communication infrastructure component designed for ABB Bailey control and automation networks. It serves as a robust platform for installing and interfacing repeater modules within Distributed Control Systems (DCS) and industrial communication architectures.

Engineered for high signal integrity and noise immunity, the RMU-100 ensures reliable data transmission across extended network distances. Its modular design allows flexible deployment, while the rugged construction meets the demands of industrial environments. As part of the ABB Bailey family, the RMU-100 integrates seamlessly into existing control networks, providing a stable backbone for high-availability communication.

Product Specifications

Product Applications

• Distributed Control Systems (DCS): Provides a stable mounting platform for repeaters to extend network communication within ABB Bailey systems.

• Industrial Communication Networks: Used in long-distance signal transmission to maintain data integrity across factory floors.

• Power Generation Facilities: Ensures reliable communication links between turbine control, excitation systems, and auxiliary modules.

• Oil & Gas Automation: Maintains robust data communication over extended distances in harsh field conditions.

• Process Control Systems: Supports repeater modules to connect multiple control cabinets or remote I/O stations.

• Manufacturing Plants: Used in high-noise environments where signal conditioning and isolation are critical.

Product Advantages

• Reliable Signal Transmission: Ensures clean and stable communication across long distances.

• High Noise Immunity: Integrated shielding and isolation for EMI/RFI-prone industrial environments.

• Modular Design: Supports flexible network topologies with easy installation of repeater modules.

• Robust Protection: Surge and overvoltage protection safeguard sensitive network electronics.

• Seamless Integration: Optimized for ABB Bailey DCS and industrial communication systems.

• Industrial-Grade Construction: Built to withstand demanding process plant conditions.

FAQ

1. What type of isolation does the RMU-100 provide for communication lines?

   It incorporates optical and galvanic isolation to protect network devices from ground loops and electrical noise.

2. Is the RMU-100 compatible with ABB Bailey Infi 90 and Symphony Plus systems?

   Yes, it integrates seamlessly with both Infi 90 and Symphony Plus architectures, supporting standard network protocols.

3. Does the unit provide any surge protection for connected repeaters?

   The RMU-100 includes built-in surge suppression to protect repeaters and downstream devices from voltage spikes.

4. How does the RMU-100 handle communication signal degradation over long distances?

   It supports repeater modules designed to regenerate and amplify signals, maintaining data integrity across extended cable runs.

5. Can the RMU-100 be used in redundant network configurations?

   Yes, it supports redundant topologies for high-availability communication networks.

6. Does the RMU-100 require an external power supply?

   It operates on a nominal 24V DC input and can be powered from the system’s control power distribution.

7. How does the RMU-100 ensure EMI/RFI immunity in industrial environments?

   The unit uses shielded enclosures and filtered connections to reduce electromagnetic interference.

8. What diagnostic features are available on the RMU-100?

   It includes LED indicators for power status and communication activity to facilitate troubleshooting.

9. Can the RMU-100 be mounted in a control cabinet alongside other ABB Bailey modules?

   Yes, its DIN-rail or panel mount design allows easy integration into existing control panels.

10. Is the RMU-100 backward compatible with legacy Bailey repeater modules?

    Yes, it is designed to work with both current and legacy ABB Bailey network repeater hardware.
