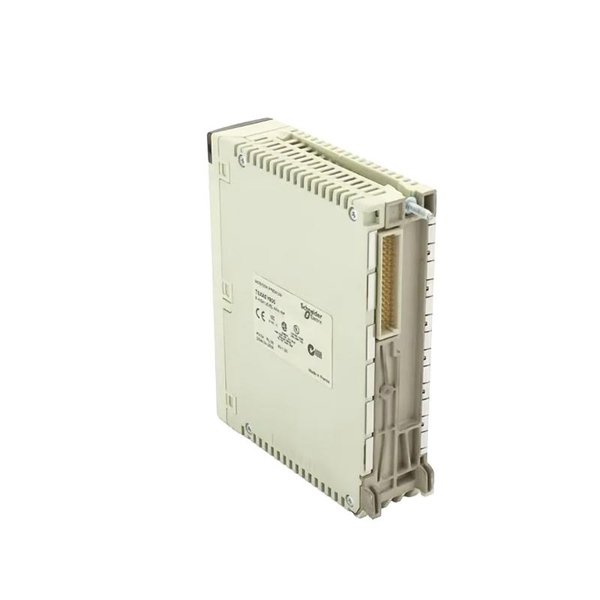

Schneider TSXAEY800 Analog Input Module

The Schneider TSXAEY800 is a robust and high-performance analog input module designed for the Modicon Premium PLC series. It features 8 isolated analog input channels, offering precise signal acquisition and reliable data processing for industrial automation systems. The module supports current input signals and is ideal for connecting sensors, transmitters, or other analog signal sources in demanding control environments.

This module is a part of Schneider Electric’s Modicon family, which is known for high reliability, flexible architecture, and seamless integration into process control systems. With an emphasis on durability, electromagnetic immunity, and easy integration, the TSXAEY800 ensures operational efficiency and long-term performance even in harsh industrial settings.

Product Specifications

Applications

The TSXAEY800 module is widely used across multiple industrial sectors for its high accuracy and reliable performance. Typical applications include:

• Process Automation in industries such as oil & gas, water treatment, food & beverage.

• Industrial Machinery Control, enabling real-time monitoring of variables like pressure, flow, and temperature.

• Manufacturing Systems, including batch control and continuous process monitoring.

• Energy Management systems for capturing precise analog signals from metering equipment.

• Building Automation for HVAC system input signal acquisition.

• OEM Applications where customized signal processing is required.

Product Advantages

• High Input Isolation: Ensures channel-to-channel and channel-to-system protection, reducing the risk of interference and damage.

• Compact Modular Design: Optimizes space within the control cabinet, supporting high-density installations.

• Easy Configuration: Seamless setup via Schneider’s EcoStruxure Control Expert (formerly Unity Pro) software.

• Diagnostic Capabilities: Integrated features like wire break and out-of-range detection enhance reliability and maintenance.

• Versatile Compatibility: Works with various Modicon Premium CPUs, making system upgrades straightforward.

• Long-Term Reliability: Built to withstand harsh industrial environments with robust electromagnetic compatibility and thermal tolerance.

• Cost-Effective: Offers excellent value in terms of performance-to-price ratio, particularly for applications needing multiple isolated analog inputs.

Frequently Asked Questions (FAQ)

1. What type of analog signals does the TSXAEY800 support?

   The module supports 0-20 mA and 4-20 mA current signals.

2. Can the TSXAEY800 be used with Modicon Quantum PLCs?

   No, it is specifically designed for use with the Modicon Premium series.

3. Is each input channel isolated from the others?

   Yes, all 8 analog input channels are electrically isolated from each other and the system bus.

4. Does the module require an external power supply?

   No, it receives its power directly from the PLC backplane.

5. How is the module configured?

   Configuration is done via Schneider’s EcoStruxure Control Expert (Unity Pro) software.

6. What is the resolution of the analog input?

   The module provides a 12-bit resolution per channel.

7. What is the physical size of the module?

   It measures 55 x 180 x 260 mm.

8. Does the module provide diagnostic features?

   Yes, it includes diagnostics for open-circuit detection and signal out-of-range warnings.

9. Can I hot-swap this module during system operation?

   No, for safety and system integrity, the module should not be hot-swapped.

10. What kind of isolation protection is offered?

    The TSXAEY800 offers 500V isolation between channels and between channels and the backplane.
