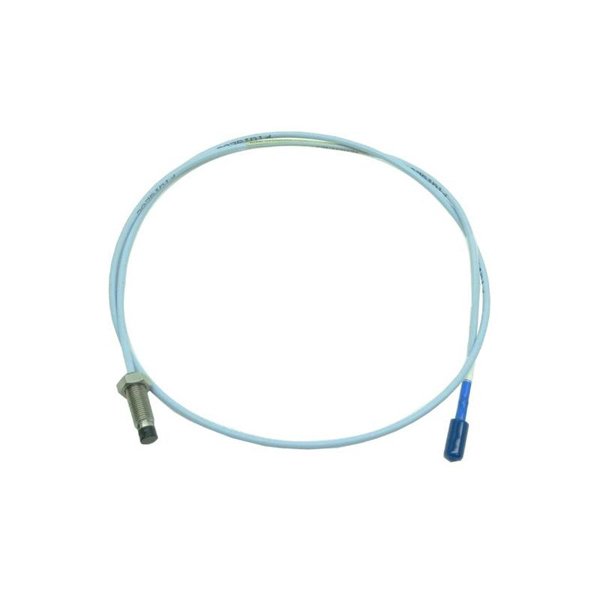

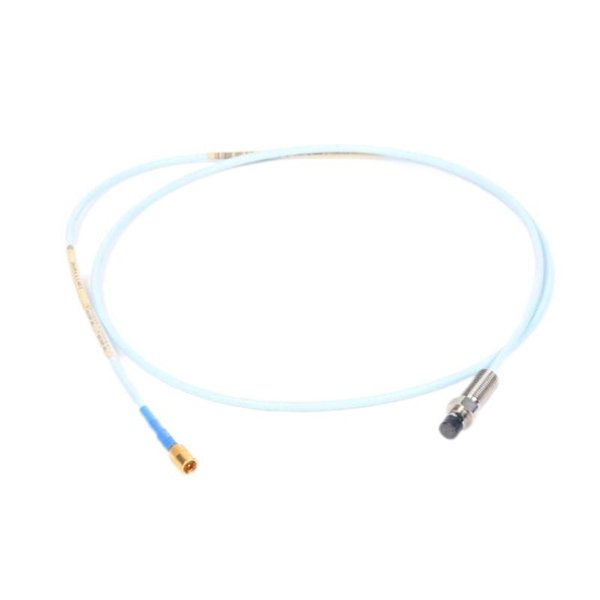

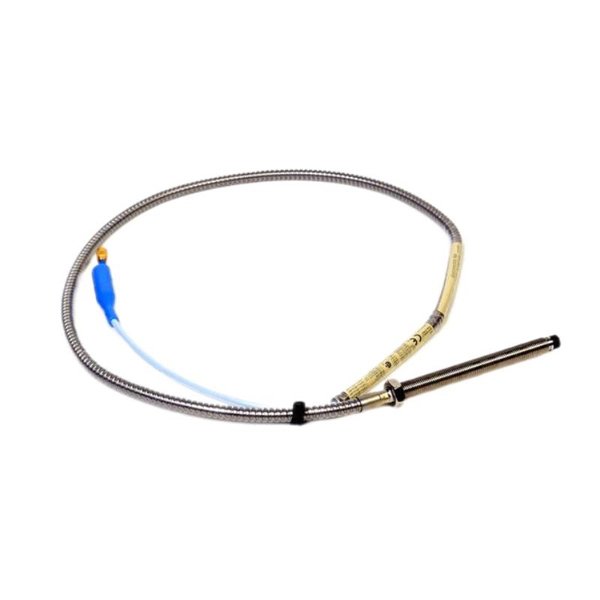

Bently Nevada 330101-00-16-10-02-05 3300 XL 8 mm Proximity Probe

The Bently Nevada 330101-00-16-10-02-05 is a precision-engineered proximity probe designed as part of the 3300 XL series, featuring an 8 mm sensing gap. This probe plays a crucial role in machinery condition monitoring and vibration analysis systems. By measuring shaft position and vibration, it provides critical data to predict machinery health and prevent failures.

With a total length of 1.0 meter and weighing 0.323 kg, the 3300 XL probe balances durability with ease of installation. The probe is designed to operate reliably in harsh industrial environments, including high temperatures, humidity, and contamination. It delivers high-resolution measurements that enhance the accuracy of diagnostic systems and improve overall maintenance strategies.

The 8 mm gap version is optimized for applications requiring longer sensing distances while maintaining precise and stable measurements. This feature makes it highly suitable for turbines, compressors, and generators, where shaft alignment and vibration data are essential for operational safety and efficiency.

Product Specifications

Product Applications

The 3300 XL 8 mm proximity probe is widely used in industries that demand precise machinery monitoring for safety and performance optimization. Common applications include:

• Turbines: Monitoring shaft position and vibration to ensure balanced and efficient operation.

• Compressors: Detecting shaft movement and vibration to prevent mechanical failures.

• Generators: Ensuring continuous operational integrity by monitoring rotor dynamics.

• Pumps: Vibration monitoring to predict bearing and shaft issues before failure.

• Motors: Real-time shaft position feedback to optimize control and maintenance.

• Industrial Fans and Blowers: Detecting vibration anomalies to maintain airflow efficiency.

Product Advantages

1. High Accuracy: The 8 mm sensing gap allows for precise detection of shaft position and vibration.

2. Robust Construction: Designed to withstand harsh industrial environments, including temperature extremes and contaminants.

3. Easy Installation: 1.0 meter length provides flexibility for various mounting configurations.

4. Reliable Signal Output: Provides stable AC voltage signals for accurate measurement.

5. Versatile Mounting Options: Supports both threaded and flanged mounting for adaptability.

6. Wide Temperature Range: Operates reliably from -40°C to +121°C, suitable for most industrial applications.

7. Durable Materials: Stainless steel probe tip ensures long service life and corrosion resistance.

8. Industry Compatibility: Fully compatible with Bently Nevada 3300 XL monitoring systems.

9. IP65 Rating: Protected against dust and water jets for reliable outdoor and indoor use.

10. Predictive Maintenance Support: Enables early detection of equipment faults, reducing downtime and maintenance costs.

FAQs

1. What is the sensing gap of this probe?

   The sensing gap is 8 mm.

2. What is the total length of the probe?

   The total length is 1.0 meter.

3. What is the weight of the probe?

   The probe weighs 0.323 kg.

4. What operating temperature range does this probe support?

   It operates between -40°C and +121°C.

5. What type of output signal does the probe provide?

   The probe outputs an AC voltage signal.

6. What materials are used for the probe tip?

   The tip is made from stainless steel.

7. What mounting options are available?

   Threaded or flanged mounting options are available.

8. Is the probe compatible with other monitoring systems?

   It is designed for compatibility with Bently Nevada 3300 XL systems.

9. What environmental protection rating does the probe have?

   It has an IP65 rating.

10. Can this probe be used in high moisture or dusty environments?

    Yes, the IP65 rating protects it from dust and water jets.
