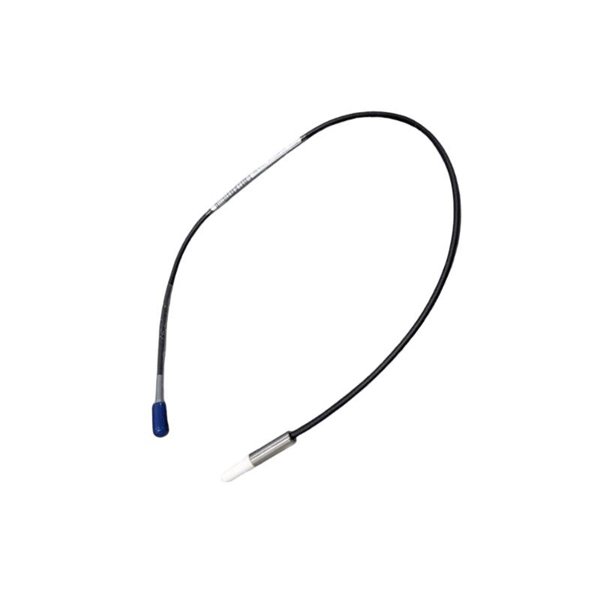

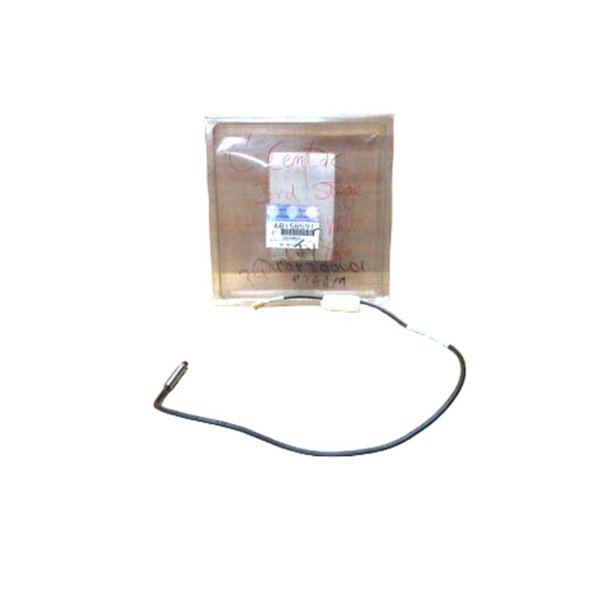

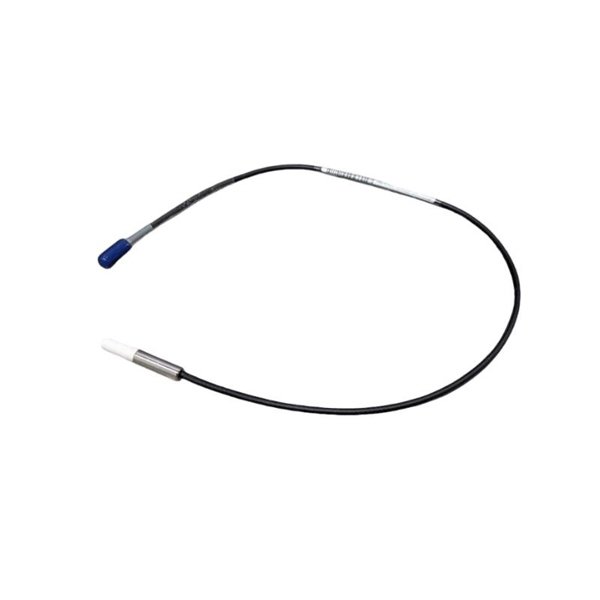

Bently Nevada 123616-01 3300XL NSv Pre-Amplifier Sensor

The Bently Nevada 123616-01 3300XL NSv Pre-Amplifier Sensor is a crucial component in the 3300XL series of monitoring systems designed by Bently Nevada, a leader in industrial machinery vibration monitoring and condition-based maintenance solutions. This pre-amplifier sensor plays an essential role in converting the signals from proximity probes into readable electrical signals that can be interpreted by monitoring systems.

The 3300XL NSv Pre-Amplifier Sensor is specifically designed for use with the 3300XL 8mm proximity probes and provides high-quality amplification of the vibration and displacement signals generated by the probes. Its primary role is to enhance signal strength, making it easier to monitor and analyze the condition of rotating machinery in real-time. By enabling clear and reliable signal transmission, it helps improve overall machine performance monitoring, allowing operators to detect issues early and perform predictive maintenance.

This sensor is widely used in industries where continuous monitoring of equipment is essential to avoid unplanned downtime and costly repairs. It supports a wide range of machinery, including turbines, compressors, motors, pumps, and other critical rotating equipment, making it a valuable asset for any industrial setup requiring real-time condition monitoring.

Product Specifications

Applications

The Bently Nevada 123616-01 3300XL NSv Pre-Amplifier Sensor is designed to be used in numerous industrial applications where high-precision condition monitoring is crucial. Some of the key applications include:

• Turbine Monitoring: Used in power plants to monitor the health of turbines. The sensor helps in detecting any misalignment, vibration, or displacement of the turbine shafts.

• Compressor Health Monitoring: The sensor is used to ensure the proper functioning of industrial compressors by amplifying signals from the proximity probe, allowing operators to detect potential issues early.

• Motor Monitoring: For electric motor systems, the pre-amplifier sensor provides real-time data on vibration and displacement, assisting in the detection of bearing faults, rotor issues, or misalignments.

• Pump Monitoring: In pump systems, this sensor helps in detecting irregularities in performance, preventing potential system failures, and ensuring a smooth operation.

• Condition Monitoring Systems: Integrated into a broader condition monitoring system, it ensures high-fidelity signal processing, enabling precise monitoring of machine conditions in real-time.

• High-Speed Machinery: In high-speed rotating machinery, the pre-amplifier ensures accurate and reliable signal amplification to detect minor vibrations or displacements that could indicate a future failure.

The sensor is highly beneficial in industries such as power generation, oil & gas, mining, and manufacturing, where machinery uptime and performance are crucial.

Advantages

• High Signal Integrity: The 3300XL NSv Pre-Amplifier Sensor delivers high signal integrity, ensuring that the data from proximity probes is accurately transmitted to the monitoring system.

• Compact and Lightweight: With a weight of just 0.05 kg and a cable length of 0.635 meters, the sensor is compact and easy to install in environments with limited space.

• Wide Frequency Range: The pre-amplifier sensor offers a wide frequency range of up to 10 kHz, making it suitable for monitoring both low and high-frequency vibrations and displacements.

• Enhanced Signal Strength: The sensor amplifies the signals from proximity probes, making it easier to analyze the data and detect issues before they lead to failures.

• Robust Performance: Designed to operate in harsh industrial environments, it maintains consistent performance across a wide range of temperatures, from -40°C to +85°C.

• Easy Integration: The sensor can be easily integrated with the Bently Nevada 3300XL series of proximity probes and other condition monitoring systems, ensuring seamless system operation.

• Low Maintenance Requirements: Designed to require minimal maintenance, it provides a reliable, long-lasting solution that reduces downtime and maintenance costs.

• Industry Standard Compliance: The sensor complies with CE and UL standards, ensuring it meets the highest global safety and performance standards.

• Cost-Effective Solution: By improving the signal quality and accuracy of the proximity probe, this pre-amplifier helps reduce the risk of mechanical failures, ultimately saving costs in terms of repairs and downtime.

• Versatility: This sensor is compatible with various types of rotating machinery and can be used in a wide range of industrial applications, offering flexibility in deployment.

FAQ (Frequently Asked Questions)

1. What is the purpose of the Bently Nevada 123616-01 3300XL NSv Pre-Amplifier Sensor?

   • The sensor amplifies the signals from proximity probes to enhance the quality of vibration and displacement data, ensuring accurate monitoring of rotating machinery.

2. What is the weight of the 3300XL NSv Pre-Amplifier Sensor?

   • The sensor weighs only 0.05 kg.

3. How long is the cable that comes with the sensor?

   • The cable length of the sensor is 0.635 meters.

4. What is the operating temperature range of the 3300XL NSv Pre-Amplifier Sensor?

   • The sensor can operate in temperatures ranging from -40°C to +85°C.

5. What is the power supply requirement for this sensor?

   • The sensor requires a 24V DC power supply with a ±10% tolerance.

6. What type of output does the Bently Nevada 3300XL NSv Pre-Amplifier Sensor provide?

   • The sensor provides either a 4-20mA or 0-10V output, depending on the application.

7. Can the 3300XL NSv Pre-Amplifier Sensor be used with other probes?

   • This sensor is designed specifically to work with Bently Nevada’s 3300XL 8mm proximity probes.

8. Is this sensor suitable for use in hazardous areas?

   • While the sensor is designed for industrial use, it should be verified for certification requirements if it needs to be deployed in hazardous locations.

9. How easy is it to install the Bently Nevada 123616-01 Pre-Amplifier Sensor?

   • The sensor is easy to install and can be mounted on a DIN rail or panel, with minimal setup required.

10. In which industries can the 3300XL NSv Pre-Amplifier Sensor be used?

    • The sensor is suitable for industries such as power generation, oil and gas, manufacturing, and mining, where rotating machinery needs to be closely monitored.
