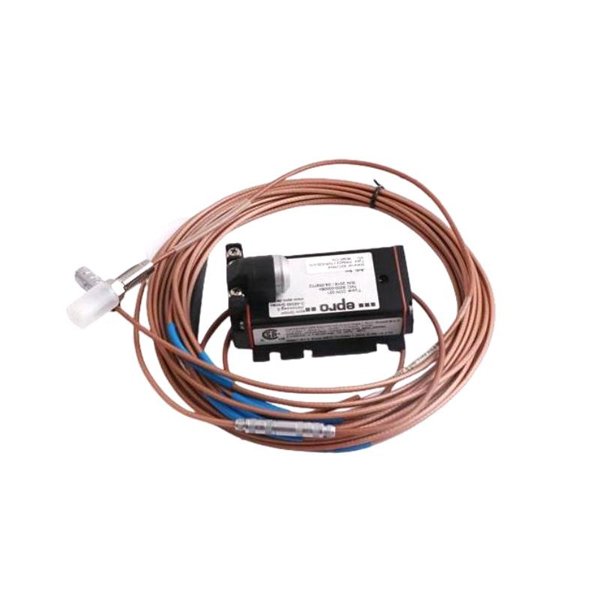

Epro PR6423/10R-030-CN 8mm Eddy Current Sensor

The Epro PR6423/10R-030-CN is a high-precision, non-contact eddy current sensor designed for measuring shaft displacement, vibration, and position in rotating machinery. Utilizing the eddy current principle, this sensor provides accurate and reliable measurements without physical contact, making it ideal for monitoring critical equipment such as turbines, compressors, and pumps.

Technical Specifications

Applications

The PR6423/10R-030-CN sensor is widely used in various industrial applications, including:

• Steam and Gas Turbines: Monitoring shaft vibration and position to prevent mechanical failures.

• Compressors: Ensuring operational efficiency by detecting misalignments and imbalances.

• Pumps and Motors: Tracking shaft displacement to identify wear and tear.

• Hydroelectric Equipment: Measuring axial and radial movements for maintenance planning.

• Gearboxes: Detecting gear misalignment and bearing issues.

• Machine Tools: Providing precise measurements for high-speed spindles.

Key Advantages

1. Non-Contact Measurement: Eliminates mechanical wear, ensuring longevity and reliability.

2. High Temperature Tolerance: Operates effectively in environments up to 180°C.

3. Robust Construction: Stainless steel housing provides durability in harsh conditions.

4. High Sensitivity: Detects minute changes in displacement with high accuracy.

5. Wide Frequency Response: Suitable for monitoring high-speed rotating machinery.

6. Environmental Protection: IP67 rating ensures resistance to dust and water ingress.

7. Easy Integration: Compatible with CON021 oscillator/demodulator for seamless system integration.

8. Compact Design: Facilitates installation in space-constrained environments.

9. Versatile Applications: Suitable for a broad range of industrial machinery.

10. Certified Safety: Meets CE and ATEX standards for use in hazardous areas.

Frequently Asked Questions (FAQ)

1. What is the primary function of the PR6423/10R-030-CN sensor?

   It measures the displacement and vibration of rotating shafts without physical contact.

2. What does the ’10R-030-CN’ denote in the model number?

   ’10R’ indicates the sensor type, ‘030’ refers to the probe length (30 mm), and ‘CN’ signifies the connector type.

3. Which oscillator is compatible with this sensor?

   The sensor is designed to work with the CON021 oscillator/demodulator.

4. What is the measuring range of the sensor?

   The sensor has a linear measuring range of 0 to 2 mm.

5. Can the sensor operate in high-temperature environments?

   Yes, it operates reliably in temperatures ranging from -35°C to +180°C.

6. Is the sensor suitable for hazardous areas?

   Yes, when configured with appropriate components, it meets ATEX Zone 1 requirements.

7. What is the output signal of the sensor?

   It provides a voltage output proportional to the distance between the sensor and the target.

8. How is the sensor mounted?

   It features an M14 x 1.5 threaded mounting for secure installation.

9. What materials is the sensor housing made of?

   The housing is constructed from stainless steel for durability.

10. Does the sensor require regular maintenance?

    Due to its non-contact design, the sensor requires minimal maintenance.
