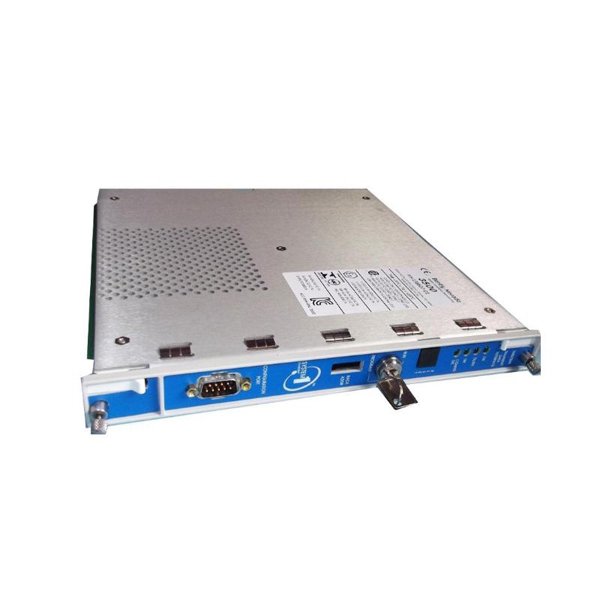

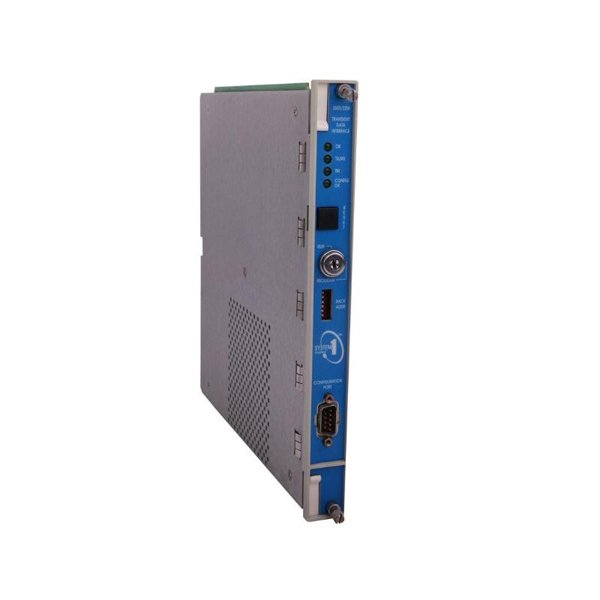

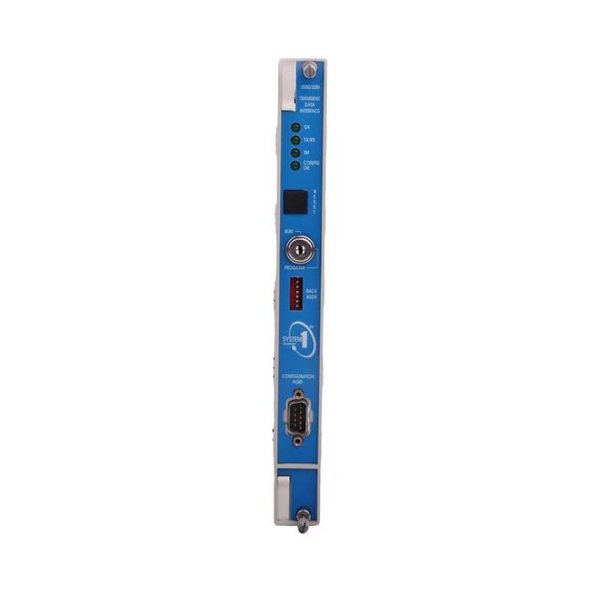

Bently Nevada 3500/22M-01-01-00 288055-01 Transient Data Interface Module

The Bently Nevada 3500/22M-01-01-00 288055-01 Transient Data Interface Module is an advanced data acquisition and processing module designed to provide precise transient data collection for machinery monitoring systems. This module is an essential component of the Bently Nevada 3500 Series machinery protection and condition monitoring system.

The 3500/22M-01-01-00 module is specifically engineered to capture high-frequency transient signals from rotating machinery, which are often indicative of mechanical faults or impending failures. By providing real-time access to critical machine health data, the module enables predictive maintenance strategies, reducing downtime and improving equipment lifespan.

Used in a variety of industries, including oil and gas, power generation, and manufacturing, this transient data interface module integrates seamlessly into the Bently Nevada 3500 system, allowing for high-precision measurements, diagnostics, and alarming capabilities. It ensures that operators can detect and respond to issues before they lead to catastrophic failures.

Technical Specifications

Applications

The 3500/22M-01-01-00 Transient Data Interface Module is used in various industrial sectors for critical machinery health monitoring and protection. Some of its primary applications include:

• Power Generation: Monitoring turbines, compressors, and generators for early detection of mechanical faults such as imbalance, misalignment, and bearing failures.

• Oil and Gas: Protecting pumps, motors, and compressors in upstream and downstream operations, where early failure detection can prevent costly shutdowns.

• Manufacturing: Ensuring the reliability of high-speed machinery, such as motors and conveyor systems, by continuously monitoring transient data.

• Industrial Pumps: Detecting cavitation, bearing wear, or misalignment in industrial pumps, allowing for predictive maintenance.

• Wind Turbines: Monitoring the health of turbines by detecting transient events that may indicate issues with rotor blades, bearings, or drive systems.

• Marine: Monitoring the machinery in ships, especially in propulsion systems, to prevent costly breakdowns and unplanned maintenance.

Product Advantages

• High Accuracy: Captures and processes transient data with high precision, ensuring accurate detection of mechanical faults.

• Real-time Monitoring: Offers real-time data acquisition, enabling immediate response to detected issues and avoiding unexpected downtime.

• Improved Predictive Maintenance: Facilitates predictive maintenance strategies by providing data that allows operators to predict machinery failures before they occur.

• Scalable Integration: Seamlessly integrates with other Bently Nevada 3500 monitoring modules for a complete machinery protection system.

• Reduced Downtime: Early detection of potential failures helps prevent unplanned shutdowns, thus reducing operational downtime and maintenance costs.

• Compact and Durable Design: Designed for tough industrial environments, it operates effectively in extreme temperatures and harsh conditions.

• Easy Installation: Designed to mount directly onto the 3500 Series rack, making integration simple and cost-effective.

• Flexible Data Output: Offers both serial and Ethernet communication for flexible data reporting and integration with control systems.

Frequently Asked Questions (FAQ)

1. What is the function of the 3500/22M Transient Data Interface Module?

This module captures high-frequency transient signals from machinery to help detect early signs of failure, such as misalignment, bearing wear, or imbalance.

2. How does the 3500/22M module contribute to predictive maintenance?

It provides precise transient data that helps predict potential failures in machinery, enabling maintenance teams to take action before breakdowns occur.

3. Can the 3500/22M module be used in high-temperature environments?

Yes, it is rated for operation in temperatures from -40°C to +70°C, making it suitable for demanding industrial environments.

4. How many input channels does the 3500/22M module support?

The module supports 8 transient data input channels, allowing for comprehensive monitoring of multiple machinery components.

5. What type of communication interfaces are available for the 3500/22M module?

It supports RS-485 and Ethernet communication interfaces, providing flexibility in data transmission.

6. Is the module suitable for use with all Bently Nevada 3500 Series systems?

Yes, the 3500/22M module is designed to integrate seamlessly with other Bently Nevada 3500 protection and monitoring systems.

7. How does the module store data?

The module includes 8MB of internal flash memory for data storage, enabling it to capture and store transient events.

8. What kind of failures can the 3500/22M module detect?

It can detect mechanical issues like bearing wear, imbalance, misalignment, and other transient mechanical faults that can lead to equipment failure.

9. What is the power consumption of the 3500/22M module?

The module consumes less than 10 W of power, making it energy efficient for continuous operation.

10. Can I integrate this module into an existing machinery protection system?

Yes, the 3500/22M module can easily integrate into existing Bently Nevada 3500 racks and monitoring systems for expanded capabilities.
