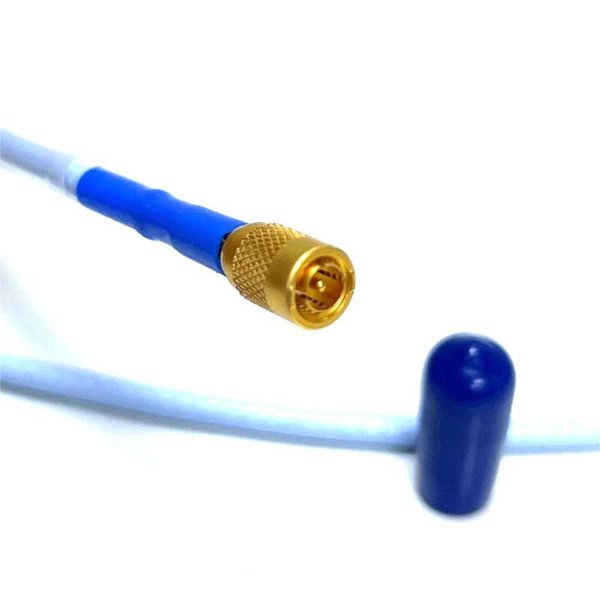

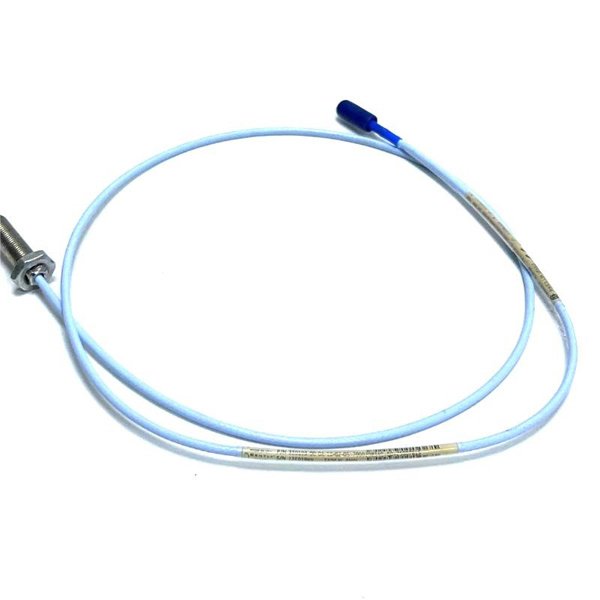

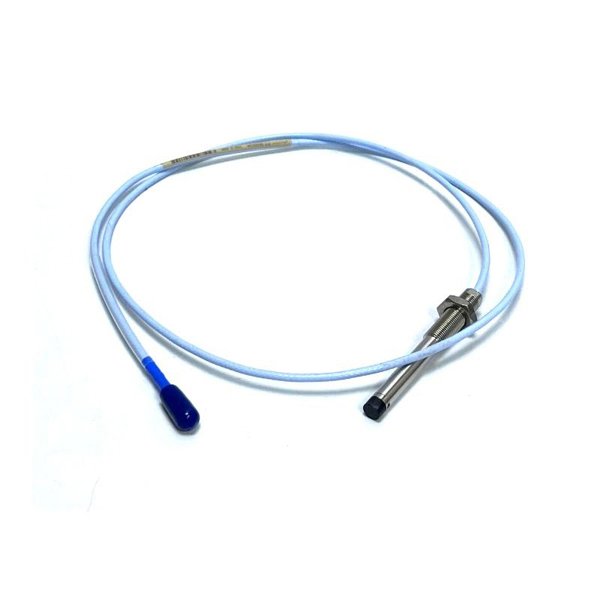

Bently Nevada 330103-00-16-10-02-CN 3300 XL 8 mm Proximity Probe
Manufacturer:Bently Nevada
Product Number:330103-00-16-10-02-CN
Product Type:3300 XL 8 mm Proximity Probe
Origin:USA
Total Length:1.0 meter
Weight:0.323 kg
Views:25
Payment Methods:T/T, PayPal, Western Union
Condition:New & In Stock
Warranty:1 Year
Lead Time:1-3 Working Days
Certificate:COO
Courier partners:DHL, UPS, TNT, FedEx and EMS.
Business hours:7*24
Product Description
The Bently Nevada 330103-00-16-10-02-CN is a 3300 XL 8 mm proximity probe designed for precise position and vibration measurement in fluid-film bearing machinery. It operates based on the eddy current principle, producing a voltage proportional to the distance from a conductive surface. This probe is part of a modular system including a Proximitor sensor and extension cable, delivering reliable static and dynamic monitoring.
Product Features and Advantages
-
Compliant with API 670 standard
-
High linearity and accuracy over wide temperature range
-
Excellent RFI/EMI immunity for industrial environments
-
Patented TipLoc and CableLoc designs for robust mechanical integrity
-
ClickLoc connectors for secure, tool-free installation
-
Optional FluidLoc cable prevents oil ingress
-
Fully interchangeable components without recalibration
Applications
-
Vibration monitoring of critical rotating equipment
-
Shaft position and axial thrust measurement
-
Keyphasor reference and speed detection
Technical Specifications
| Parameter | Value |
|---|---|
| System Length | 1.0 meter |
| Weight | 0.323 kg |
| Probe Tip Material | Polyphenylene sulfide (PPS) |
| Case Material | Stainless Steel (AISI 303/304) |
| Cable Type | 75Ω triaxial, FEP insulation |
| Linear Range | 2 mm (80 mils) |
| Frequency Response | 0–10 kHz (+0, -3 dB) |
| Recommended Gap | 1.27 mm (50 mils) |
| Operating Temperature (Probe) | -52°C to +177°C |
| Storage Temperature | -52°C to +177°C |
| Minimum Shaft Diameter | 50.8 mm |
| Humidity | <3% ASF change @ 93% RH |
| Dimensions | Standard 8 mm tip diameter |
FAQ
Q1: What is the main use of the 330103-00-16-10-02-CN probe?
A1: It is used for measuring vibration and position on fluid-film bearing machinery.
Q2: Is this probe compatible with older Bently Nevada systems?
A2: Yes, it is backward compatible with non-XL 3300 8 mm components.
Q3: Does the probe require calibration before use?
A3: No, components are interchangeable and calibrated at the factory.
Q4: Can the probe operate in high temperature environments?
A4: Yes, up to +177°C, and up to +218°C with the ETR version.
Q5: What is the recommended minimum shaft diameter?
A5: At least 50.8 mm, preferably 76.2 mm for best performance.
Q6: What is the frequency response of the system?
A6: 0–10 kHz (+0, -3 dB).
Q7: How does the FluidLoc option help?
A7: It prevents oil or liquid from leaking through the cable.
Q8: Are special tools needed for connectors?
A8: No, ClickLoc connectors are finger-tight with a secure click.
Q9: What environmental certifications does it have?
A9: Complies with EMC, FCC, CE, RoHS, and is SIL 2/3 capable.
Q10: What is the linear measurement range?
A10: The probe has a linear range of 2 mm (80 mils).
