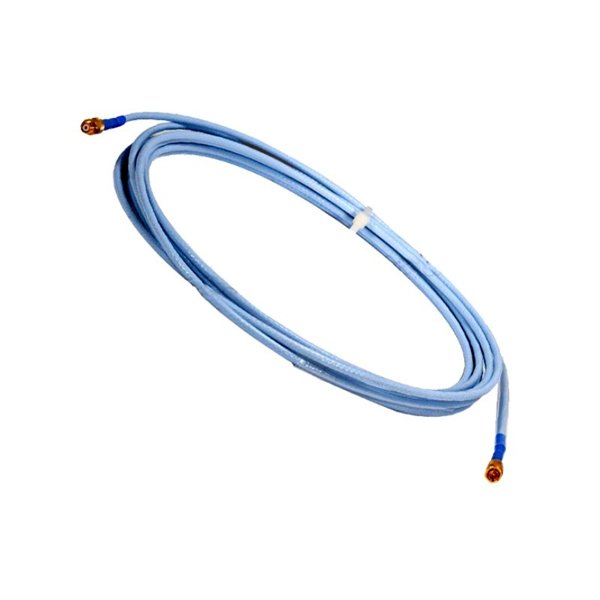

Bently Nevada 330190-040-00-CN 3300 XL ETR Extension Cable

The Bently Nevada 330190-040-00-CN is an extension cable designed for the 3300 XL series vibration sensors. It offers enhanced Extended Temperature Range (ETR) capabilities, making it suitable for harsh industrial environments, especially where high temperatures are present. The cable features a 4.0-meter length and weighs approximately 0.136 kg.

This extension cable ensures that 3300 XL proximity probes and sensors can be deployed further from the control systems without losing signal integrity. It is particularly beneficial in applications where vibration monitoring is critical, such as turbines, motors, and other industrial machinery. The high-quality shielding and materials used ensure reliable performance even in extreme temperatures, ranging from -52°C to +260°C.

Product Specifications

Applications

The Bently Nevada 330190-040-00-CN extension cable is widely used in industries requiring reliable signal transmission over long distances, such as:

• Power Plants: Used for monitoring vibration in high-temperature equipment such as gas turbines and steam turbines.

• Oil and Gas: Provides extended reach for vibration monitoring on offshore rigs, refineries, and other large-scale operations.

• Heavy Machinery: Ideal for large pumps, compressors, and other heavy-duty industrial equipment requiring vibration monitoring.

• Manufacturing: Ensures accurate vibration data in large-scale automated systems with remote sensors.

• Mining: Used for real-time vibration monitoring in mining equipment and conveyor systems to predict maintenance needs.

• Aerospace: Essential for monitoring high-precision machinery in aerospace applications, including turbine engines.

Advantages

• Extended Reach: The 4.0-meter cable provides flexibility, enabling easy installation in complex industrial setups and large machinery without compromising signal integrity.

• Temperature Tolerance: With a wide operating temperature range of -52°C to +260°C, it is perfect for environments with extreme temperature fluctuations.

• Signal Integrity: The shielded cable minimizes signal degradation over long distances, ensuring high-quality, accurate readings.

• Reliability in Harsh Environments: The IP67 rating ensures the cable is resistant to dust, water, and high-pressure environments, ideal for industrial facilities.

• Quick Installation: The ClickLoc connectors allow for fast and secure connections, reducing installation time and improving system uptime.

• Durability: Made from high-grade materials, this cable is built to withstand harsh industrial conditions, offering long-term performance.

• High Performance: Designed to deliver high-frequency signal transmission, it’s ideal for dynamic machinery and real-time condition monitoring.

• Compatibility: Specifically designed to work seamlessly with the 3300 XL series of proximity probes, ensuring optimal performance.

• Cost-Effective: By extending the reach of the 3300 XL sensors, the cable provides a cost-effective solution for complex monitoring systems.

FAQ

1. What is the maximum cable length for the 3300 XL ETR extension cable?

The 330190-040-00-CN extension cable is 4.0 meters in length. Additional extension cables can be connected for even greater reach, while maintaining signal integrity.

2. What environments is this cable suitable for?

This cable is designed to perform reliably in harsh industrial environments, with a temperature range of -52°C to +260°C and an IP67 rating for protection against dust and water.

3. How does this extension cable maintain signal integrity?

The shielded cable design prevents electromagnetic interference, ensuring that the 3300 XL series proximity probes maintain high signal fidelity even over long distances.

4. What type of connectors does this cable use?

The 330190-040-00-CN extension cable features ClickLoc fast connectors, which allow for quick and secure connections without the need for additional tools.

5. Can I use this cable for high-frequency vibration monitoring?

Yes, this cable is designed to handle high-frequency signals, making it suitable for high-speed and real-time vibration monitoring in dynamic applications.

6. Can the cable be used in outdoor or offshore environments?

Yes, the IP67 rating ensures that the cable is protected against water and dust, making it ideal for outdoor, offshore, and extreme industrial environments.

7. Is this cable compatible with other sensors or only Bently Nevada?

This extension cable is specifically designed for Bently Nevada 3300 XL proximity probes, ensuring seamless integration and reliable signal transmission.

8. How do I install the 3300 XL ETR extension cable?

The ClickLoc connectors enable easy installation by simply connecting the cable to the 3300 XL probes and monitoring systems, minimizing installation time.

9. Can I connect multiple extension cables for longer distances?

Yes, additional extension cables can be connected to achieve longer distances, but it is important to ensure that signal integrity is not compromised.

10. Is this extension cable suitable for both analog and digital signals?

Yes, the 330190-040-00-CN extension cable is capable of supporting both analog and digital signal transmission, depending on the connected systems and probes.
