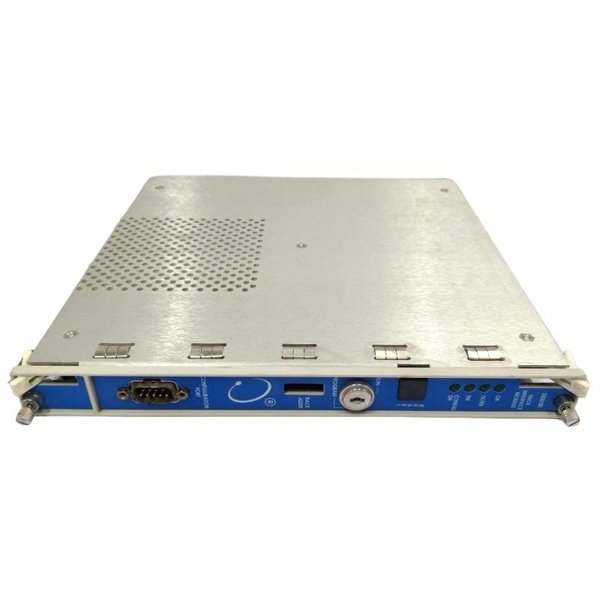

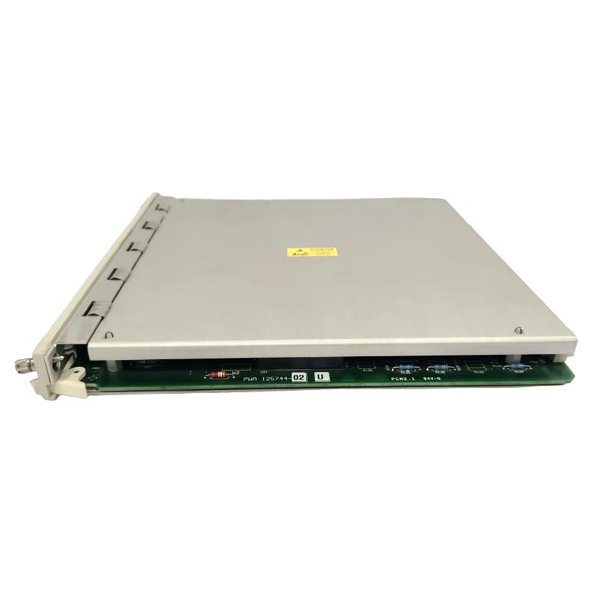

Bently Nevada 3500/20-01-02-01 Rack Interface Module

The Bently Nevada 3500/20-01-02-01 Rack Interface Module is an integral component of the 3500 Series machinery protection system, providing essential signal routing and communication between various sensors and monitoring modules within the system rack. Designed to ensure precise and reliable transmission of vibration, speed, and process signals, this interface module supports accurate machinery condition monitoring and early fault detection. Engineered with industrial-grade components, it offers robust performance in demanding environments such as power generation, petrochemical, oil and gas, and manufacturing facilities. The module enhances the overall system’s functionality by maintaining signal integrity and facilitating seamless integration with other 3500 Series components.

Product Specifications

Applications

The 3500/20-01-02-01 Rack Interface Module is widely utilized in various industrial settings for:

• Signal routing and conditioning within 3500 Series rack systems

• Integration of vibration, speed, and process input signals for comprehensive monitoring

• Machinery health monitoring in power plants, petrochemical plants, oil and gas facilities, and manufacturing environments

• Supporting early fault detection and predictive maintenance programs

• Enhancing modularity and maintainability of the overall 3500 Series protection system

This module plays a vital role in ensuring accurate and reliable data transmission crucial for protecting critical rotating machinery.

Product Advantages

• Multi-Signal Support: Compatible with vibration, speed, and process input signals, allowing versatile system configurations.

• Robust Signal Integrity: Uses high-quality backplane connectors to minimize noise and maintain reliable communication.

• Designed for Harsh Environments: Operates effectively across a wide temperature and humidity range, suitable for industrial conditions.

• Low Power Consumption: Efficient design helps reduce energy costs within the system rack.

• Compact and Modular: Fits into standard 3500 Series rack slots, making installation and replacement straightforward.

• Safety Certified: Complies with CE, UL, and CSA safety and electromagnetic compatibility standards.

• Ease of Maintenance: Modular design supports quick replacement to minimize system downtime.

FAQ

1. What types of signals does this interface module support?

   It supports vibration, speed, and process input signals.

2. How is the module connected within the monitoring system?

   Via the backplane connector of the 3500 Series rack.

3. What is the power consumption of the module?

   Approximately 3 watts.

4. What temperature range can the module operate in?

   From -40°C to +70°C.

5. How does the module ensure low electrical noise?

   Through high-quality connectors and circuitry designed for noise reduction.

6. Are there built-in protections for the module?

   Yes, it includes surge protection and safe signal routing.

7. Is hot swapping supported?

   No, power should be turned off before module replacement.

8. What certifications does the module have?

   CE, UL, and CSA.

9. Does the module provide remote diagnostics?

   Diagnostics are handled by the larger 3500 system, not this module specifically.

10. What installation precautions are recommended?

    Follow Bently Nevada’s guidelines for grounding, wiring, and rack mounting.
