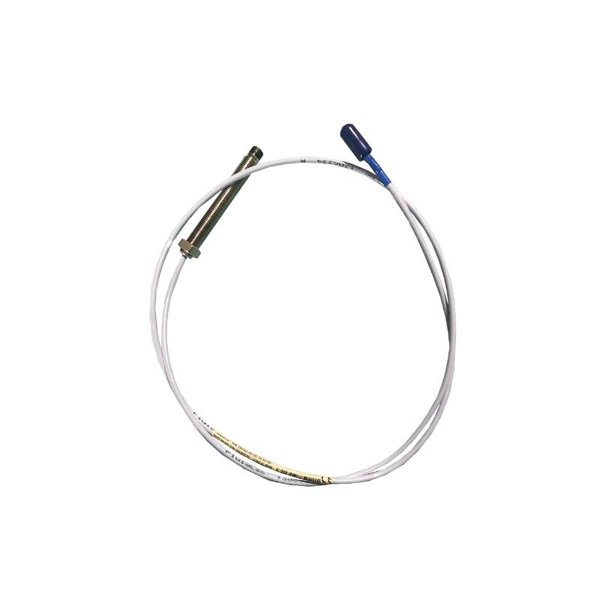

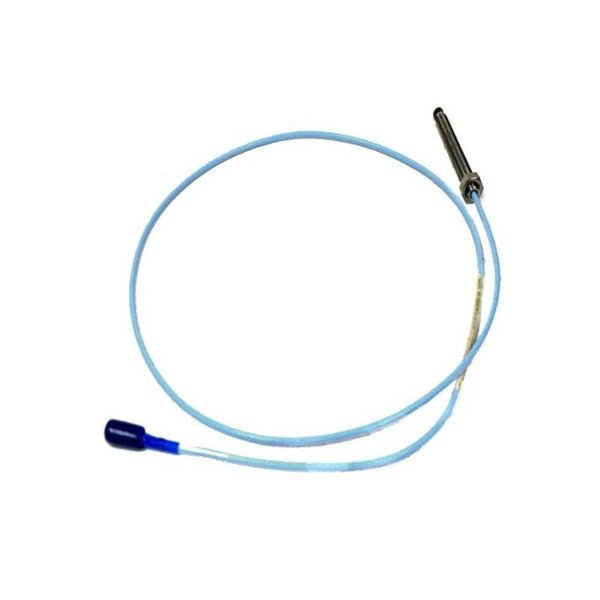

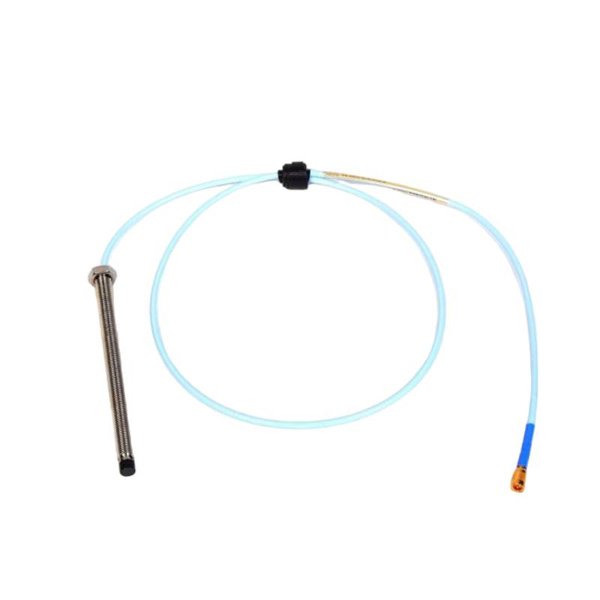

Bently Nevada 330104-14-19-10-11-00 3300 XL 8mm Proximity Probes

The Bently Nevada 330104-14-19-10-11-00 3300 XL 8mm Proximity Probe is a high-performance, non-contact sensor designed to measure the displacement of rotating machinery, specifically for monitoring shaft vibrations and positions. Part of the 3300 XL series, this probe is engineered to deliver accurate and reliable measurements in the harshest industrial environments. It is a key component in Bently Nevada’s advanced machinery protection and monitoring systems, providing critical data for the protection and optimization of industrial equipment.

The 3300 XL proximity probe is widely used in applications such as turbines, compressors, pumps, and other rotating machinery. With a measurement range of up to 8mm, it provides the necessary sensitivity and precision to detect even small changes in shaft position. Its robust construction ensures durability under extreme conditions, and it integrates easily into existing Bently Nevada monitoring systems. The 3300 XL proximity probe is designed for continuous, real-time monitoring, allowing operators to detect potential issues before they become critical failures, thereby extending the life of industrial assets and improving operational reliability.

Technical Specifications

Applications

The Bently Nevada 330104-14-19-10-11-00 3300 XL 8mm Proximity Probe is ideal for a range of industrial applications, where precise vibration and displacement monitoring is crucial. Some key applications include:

• Turbines: The 3300 XL probe is used to monitor shaft vibration and position in steam and gas turbines, helping to detect misalignments, imbalance, or other faults that can lead to costly downtime.

• Compressors: It is widely used in compressors to monitor shaft displacement, ensuring that the machinery operates within safe vibration limits and preventing failures due to misalignment or excessive vibration.

• Pumps: The probe can be installed on pump shafts to measure vibration and axial displacement, preventing mechanical damage caused by excessive motion.

• Motors and Generators: It can be employed in large electric motors and generators to monitor the shaft’s position and detect any irregularities in its motion, ensuring operational safety and efficiency.

• Fan Systems: The probe can be used to monitor the displacement of shafts in large fan systems, enabling early detection of issues such as imbalance, misalignment, or bearing wear.

• Rotating Machinery: The 3300 XL probe is essential for ensuring the safe operation of any rotating machinery, including critical industrial equipment such as conveyors, grinders, and mills.

Key Advantages

• High Precision and Sensitivity: The 3300 XL proximity probe offers high-resolution measurements, detecting even minute changes in shaft position, which is crucial for maintaining the performance and health of machinery.

• Durability in Harsh Environments: Built with a stainless steel body and ceramic tips, the probe is designed to withstand extreme temperatures, vibrations, and mechanical wear, making it ideal for industrial environments.

• Non-contact Measurement: The eddy current technology used by the 3300 XL allows for non-contact measurement, reducing wear and tear on the probe itself and providing accurate readings without direct physical contact with the shaft.

• Seamless Integration: The probe is designed to integrate easily with Bently Nevada’s monitoring systems, providing real-time data that can be used for predictive maintenance and condition monitoring.

• Extended Asset Life: By monitoring the condition of machinery in real-time, the 3300 XL probe helps identify potential issues early, which can prevent catastrophic failures and extend the life of assets.

• Wide Application Range: The 3300 XL probe is suitable for a wide range of rotating machinery and industries, from power generation and oil & gas to manufacturing and water treatment.

• Customizable Cable Lengths: The probe comes with customizable cable lengths, ensuring flexibility to meet the specific needs of different installations.

• Corrosion-Resistant: The probe’s construction, made from corrosion-resistant materials, allows it to operate effectively in challenging environments where moisture, chemicals, or extreme conditions may be present.

• Ease of Installation: The probe’s simple mounting options and connector-based design make it easy to install and replace, reducing downtime and maintenance costs.

Frequently Asked Questions (FAQ)

1. What is the measurement range of the 3300 XL proximity probe?

   The 3300 XL proximity probe has a measurement range of up to 8mm, making it suitable for monitoring small displacements and vibrations.

2. What types of applications can the 3300 XL proximity probe be used in?

   It can be used in turbines, compressors, pumps, motors, generators, fan systems, and other rotating machinery.

3. What is the operating temperature range for this proximity probe?

   The 3300 XL probe operates within a temperature range of -40°C to +120°C, making it suitable for use in a wide variety of industrial environments.

4. What technology does the 3300 XL probe use to measure shaft displacement?

   The 3300 XL uses eddy current sensing technology, which allows for non-contact measurement with high precision and sensitivity.

5. How does the probe’s non-contact measurement work?

   The probe measures shaft displacement by generating an electromagnetic field that detects changes in the shaft’s position without physically touching the shaft.

6. What materials is the 3300 XL probe made from?

   The probe has a stainless steel body and ceramic tips, ensuring durability and resistance to wear and corrosion.

7. What certifications does the 3300 XL probe have?

   The probe is certified with CE, UL, and ATEX, which makes it suitable for use in hazardous environments.

8. How does the 3300 XL help with predictive maintenance?

   By continuously monitoring shaft vibration and position, the 3300 XL provides real-time data that can be used to detect potential issues before they result in equipment failure.

9. Can the 3300 XL probe be used in hazardous environments?

   Yes, the 3300 XL probe has ATEX certification, which makes it suitable for use in hazardous locations where explosive gases or dust may be present.

10. What is the weight of the 3300 XL probe?

    The probe weighs 0.323 kg, making it lightweight and easy to handle during installation.
