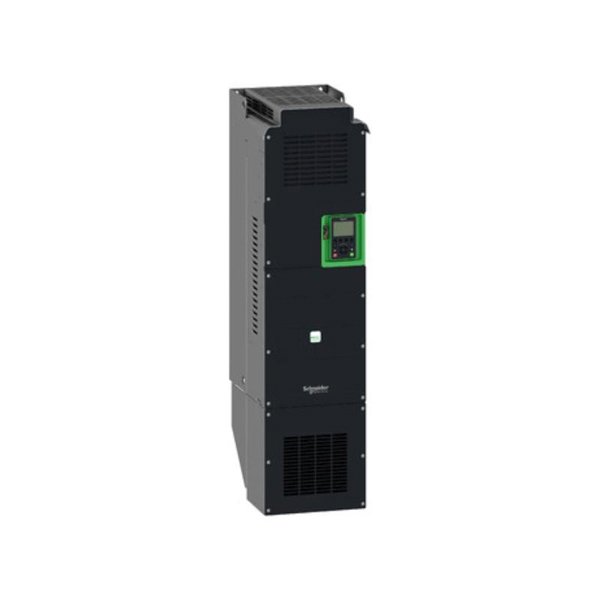

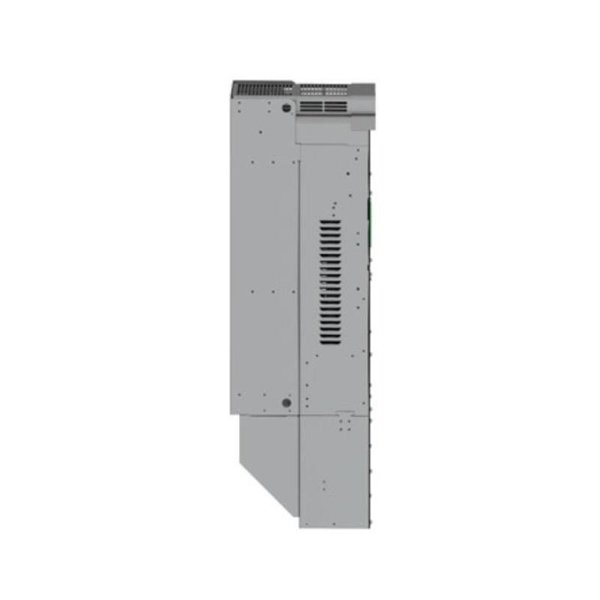

Schneider ATV630C13N4 Variable Speed Drive
Manufacturer:Schneider
Product Number:ATV630C13N4
Product Type:Variable Speed Drive
Origin:France
Dimensions:320 x 852 x 390 mm
Weight:82 kg
Views:50
Payment Methods:T/T, PayPal, Western Union
Condition:New & In Stock
Warranty:1 Year
Lead Time:1-3 Working Days
Certificate:COO
Courier partners:DHL, UPS, TNT, FedEx and EMS.
Business hours:7*24
Product Description
The Schneider ATV630C13N4 is a high-performance variable speed drive designed for energy-efficient motor control in industrial and commercial applications. It provides reliable operation, precise control, and flexible integration for demanding environments.
Technical Specifications
| Parameter | Value |
|---|---|
| Model | ATV630C13N4 |
| Power Supply | 380-480 V AC, 50/60 Hz |
| Power Rating | 132 kW (175 HP) |
| Output Frequency Range | 0.1 – 599 Hz |
| Control Method | V/F, Sensorless Vector Control |
| Communication Ports | Modbus, Ethernet, CANopen |
| Protection Class | IP21 |
| Operating Temperature | -15°C to +50°C |
| Dimensions (W x H x D) | 320 x 852 x 390 mm |
| Weight | 82 kg |
Applications
The ATV630C13N4 is widely used in:
-
HVAC systems and pumps
-
Fans and compressors
-
Conveyor systems
-
Industrial processing lines
-
Water and wastewater treatment facilities
Advantages
-
High energy efficiency with optimized motor control
-
Wide range of communication protocols for easy integration
-
Robust design suitable for harsh industrial environments
-
User-friendly interface with built-in diagnostics
-
Advanced motor protection features
-
Flexible mounting and configuration options
FAQ
Q1: What is the main function of the ATV630C13N4?
A1: It controls the speed of AC motors to improve process performance and reduce energy consumption.
Q2: Is it suitable for pump and fan applications?
A2: Yes, it is specifically optimized for pumps, fans, and HVAC systems.
Q3: Can it operate in high-temperature environments?
A3: It operates reliably up to +50°C without derating.
Q4: What communication protocols does it support?
A4: It supports Modbus, Ethernet, CANopen, and optional fieldbus cards.
Q5: Does it have built-in motor protection?
A5: Yes, it features overcurrent, overload, and phase loss protection.
Q6: How easy is it to install and configure?
A6: It is designed with a user-friendly interface and flexible mounting for quick setup.
Q7: What is the enclosure protection level?
A7: The standard version is IP21, suitable for indoor environments.
Q8: Can it handle regenerative braking?
A8: Yes, it supports dynamic braking with optional braking resistors.
Q9: Is it compatible with sensorless motor control?
A9: Yes, it supports both V/F and sensorless vector control modes.
Q10: What maintenance does it require?
A10: Regular inspection of cooling fans and filters is recommended for optimal operation.
