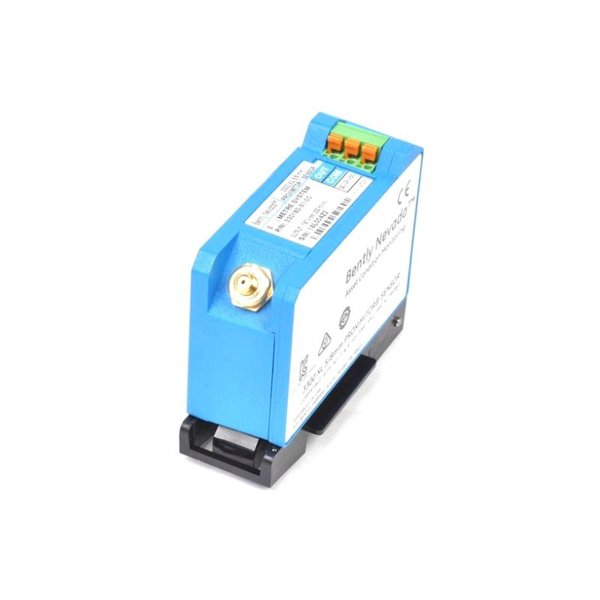

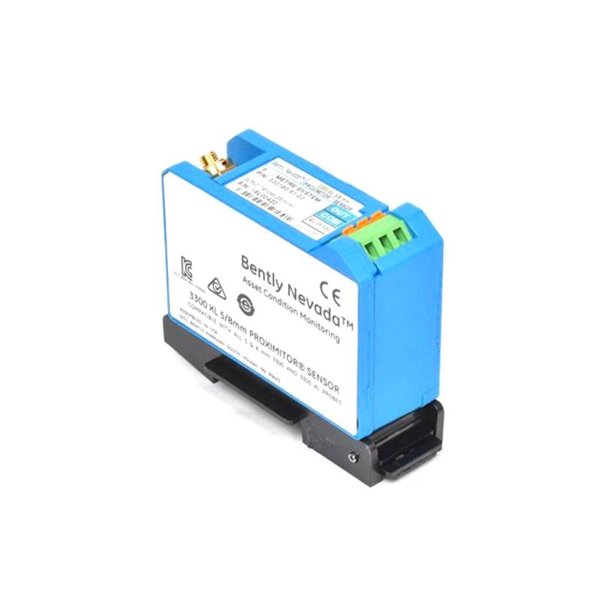

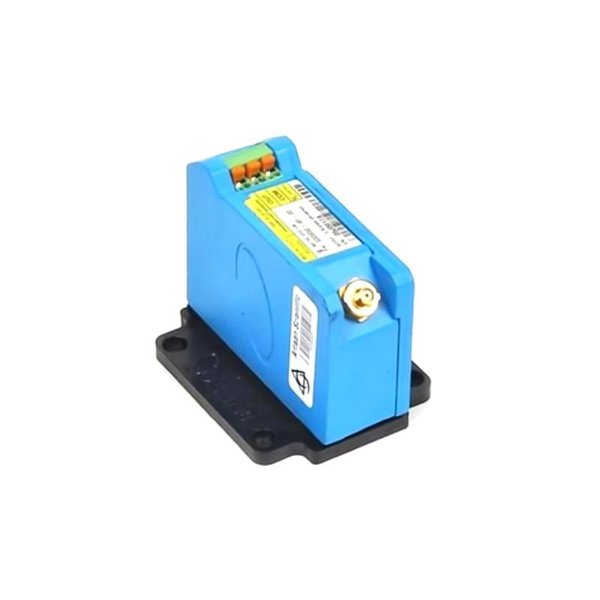

Bently Nevada 330180-X0-CN 3300 XL 8mm Proximitor Sensor

The Bently Nevada 330180-X0-CN 3300 XL 8mm Proximitor Sensor is a high-performance proximity sensor used for precise vibration and displacement measurements of rotating machinery. This sensor is designed to provide reliable and accurate measurements in harsh industrial environments, where continuous monitoring is critical for maintaining machinery health.

The 3300 XL Proximitor Sensor utilizes state-of-the-art eddy-current sensing technology to detect displacement of metal objects, such as shafts and bearings, with extreme precision. The sensor is ideally suited for applications in industries such as power generation, oil and gas, manufacturing, and mining, where maintaining machinery reliability is essential.

With its compact design and robust construction, the 3300 XL 8mm Proximitor Sensor can operate in extreme conditions, delivering accurate data even in environments exposed to high levels of vibration, temperature fluctuations, and mechanical stress.

Technical Specifications

Applications

The 3300 XL 8mm Proximitor Sensor is used across various industries for the precise monitoring of rotating equipment. Key applications include:

• Power Generation: Monitoring turbines, generators, and motors for vibration, shaft displacement, and alignment.

• Oil & Gas: Used for continuous monitoring of pumps, compressors, and turbines in critical operations such as drilling rigs and offshore platforms.

• Mining: Essential for monitoring crushers, mills, and conveyors to prevent mechanical failure.

• Pulp and Paper: Employed in monitoring key rotating machinery such as pulpers and dryers.

• Manufacturing: Ensures optimal performance of motors, gearboxes, and pumps on production lines.

• Aerospace & Defense: Used in rotating machinery testing and performance analysis for military-grade equipment.

Advantages

• Precision Measurement: The 8mm proximitor sensor uses eddy-current technology to deliver highly accurate displacement and vibration data.

• Durable Design: Built to withstand harsh environmental conditions, including temperature extremes, vibration, and mechanical stress.

• Simple Integration: Easily integrates with the Bently Nevada 3300 XL system, providing seamless monitoring of multiple machine points.

• Long Life Span: The sensor’s robust construction and high-quality materials ensure a long operational life with minimal maintenance.

• High Reliability: Designed for continuous operation, even in challenging industrial environments.

• Compact Form Factor: The small and lightweight design makes it easy to mount in confined spaces without compromising measurement accuracy.

• Signal Output: The 4-20 mA output allows for easy integration into existing control systems.

• Wide Temperature Range: The sensor operates effectively in temperatures ranging from -40°C to +85°C, making it suitable for use in various global locations.

• Low Power Consumption: Designed to operate with minimal power, making it energy efficient.

FAQs

1. What is the measuring range of the Bently Nevada 330180-X0-CN 3300 XL 8mm Proximitor Sensor?

The measuring range is ±0.08 inches (±2.0 mm), providing precise displacement measurements for rotating machinery.

2. How does the 3300 XL 8mm Proximitor Sensor work?

It uses eddy-current sensing technology to measure the displacement of metal objects, such as shafts or bearings, based on changes in inductance.

3. What is the output signal of the sensor?

The sensor provides a 4-20 mA output, which is commonly used for integration with control systems and monitoring devices.

4. What is the operating temperature range for this sensor?

It operates in temperatures from -40°C to +85°C, making it suitable for extreme environmental conditions.

5. How do I mount the proximitor sensor?

The sensor is mounted directly to the machine surface for precise vibration and displacement measurement.

6. Is this sensor compatible with other Bently Nevada systems?

Yes, it is fully compatible with the Bently Nevada 3300 XL series and can be seamlessly integrated into the monitoring system.

7. What industries use the 3300 XL 8mm Proximitor Sensor?

It is used in power generation, oil and gas, mining, pulp and paper, manufacturing, and aerospace, among others.

8. What type of connector does the sensor use?

It uses MIL-C-26482 style connectors, ensuring a secure and reliable connection.

9. Is the 3300 XL 8mm Proximitor Sensor suitable for use in outdoor environments?

Yes, the sensor can withstand outdoor conditions as long as it is protected from extreme weather and mechanical impacts.

10. How can I integrate the sensor into my existing system?

The sensor can easily be integrated into your existing monitoring system using its 4-20 mA output and compatible connectors.
